Bostwick Type Folding Gates
SPECIFICATIONS FOR BOSTWICK TYPE FOLDING GATE
Vertical bars are two 3/4" x 3/8" cold rolled steel channel frames riveted
together not over 6" o.c. Lattices bars are 5/8" x 3/16" flat bar with
brass washers and machined channel guides on ends. Vertical end bars are
cold rolled box track sections with ball bearing roller for smooth operation.
Gate can be fitted for cylinder lock or padlock lug. All gates have self-locking
tie back.
FINISH: Dipped in cleaning bath & painted one shop coat of enamel
as selected from our standard colors.
No. 500-SINGLE BOSTWICK FOLDING GATE
Three sets of lattices for gate over 9' -6" high. Recommended maximum width 16' -0". Equipped with 2 1/4" x 2" top guide channel and bottom folding track with rubber floor pads and 4-wheel ball bearing carriages. Gate can be hinged, fixed or mounted to Type "A" or Type "B" cabinet.
No 501-DOUBLE BOSTWICK FOLDING GATE
Same as single gate except maximum recommended width 24' -0".

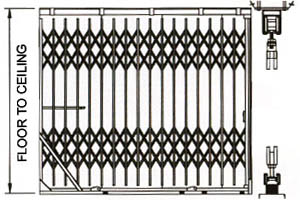

No. 502-SINGLE BOSTWICK FOLDING GATE
Three sets of lattices for gate over 9' -6" high. Recommended maximum width 16' -0". Equipped with stationary top track with rollers and bottom folding track with rubber floor pads and 4-wheel ball bearing carriages for easy operation. Gate can be fixed or mounted to Type "A" cabinet.
No 503-DOUBLE BOSTWICK FOLDING GATE
Same as single gate except maximum recommended with 24' -0".

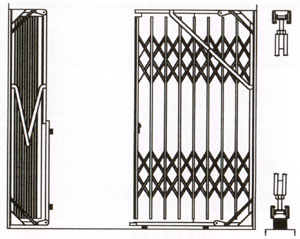

No. 504-SINGLE BOSTWICK FOLDING GATE
Recommended maximum width 8' -0" x 7' -6" high. Gates over 6 feet wide will have jackknife brace for added rigidity. Gate can be hinged, fixed or mounted to Type "A" or Type "B" cabinet.
No 505-DOUBLE BOSTWICK FOLDING GATE
Same as single gate except maximum recommended with 12' -0".

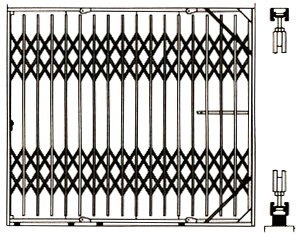

No. 506-SINGLE BOSTWICK FOLDING GATE
Recommended maximum width 12' -0" x 7' -6" high. Equipped with jackknife brace and bottom folding track with rubber floor pads and 4-wheel ball bearing carriages for added rigidity. Gate can be hinged, fixed or mounted to either Type "A" or Type "B" cabinet.
No 507-DOUBLE BOSTWICK FOLDING GATE
Same as single gate except maximum recommended width 16' -0".

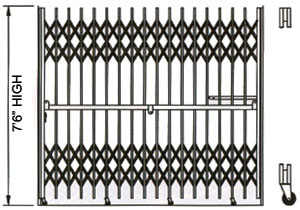

No. 508-SINGLE BOSTWICK FOLDING GATE
Recommended maximum height 7'-6". Equipped with top and bottom folding track and 4-wheel ball bearing carriages for easy operation. Bottom track has rubber floor pads. Gate can be hinged, fixed or mounted to Type "A" or Type "B" cabinet.
Maximum Corridor width 16'-0" without Cabinet.
Maximum Corridor width 16'-0" with Shallow Wall Cabinet.
Maximum Corridor width 12'-0" with Deep Wall Cabinet.

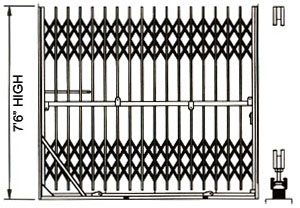

No. 509-SINGLE BOSTWICK FOLDING GATE
Recommended maximum height 7'-6". Equipped with top and bottom folding track and 4-wheel ball bearing carriages for easy operation. Bottom track has rubber floor pads. Gate can be hinged, fixed or mounted to Type "A" or Type "B" cabinet.
Maximum Corridor width 16'-0" without Cabinet.
Maximum Corridor width 16'-0" with Shallow Wall Cabinet.
Maximum Corridor width 12'-0" with Deep Wall Cabinet.

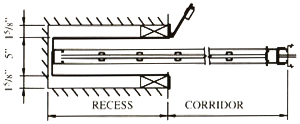

TYPE A - DEEP WALL CABINET (OPTIONAL)
Constructed of formed 12 gauge steel sheets with 3/16" thick door and
face trim. Cabinet door will remain open when gate is extended. Any standard
1-5/32" diameter cylinder can be used in lock.
| Corridor in feet | 6 | 8 | 10 | 12 | 14 | 16 |
| Recess in inches | 23 | 30 | 36 | 38 | 40 | 44 |

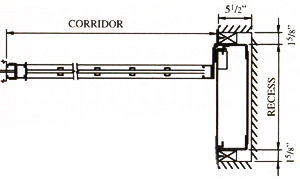

TYPE B - SHALLOW WALL CABINET (OPTIONAL)
Constructed of "Z" bar with gauge steel sheet door and back. Door can
be closed while gate is extended. Any standard 1-5/32" diameter cylinder
can be used in lock.
| Corridor in feet | 6 | 8 | 10 | 12 | 14 | 16 |
| Recess in inches | 19 | 23 | 30 | 33 | 38 | 40 |
