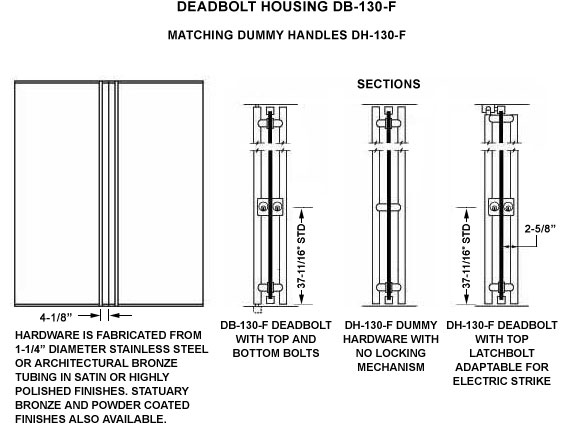

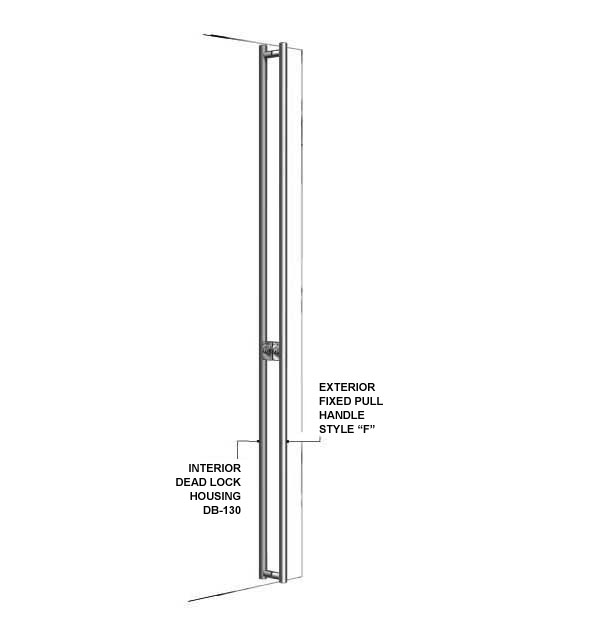

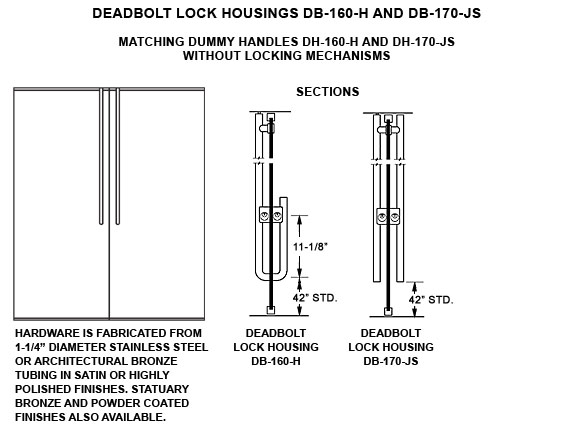

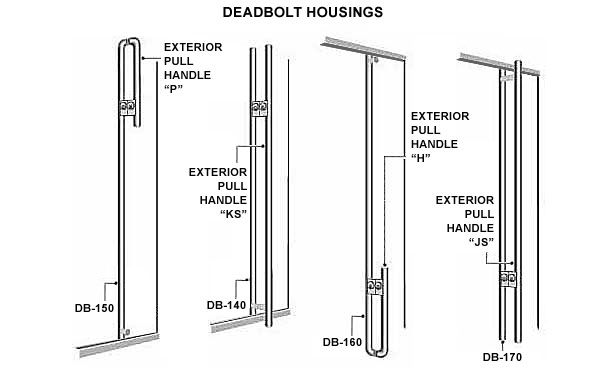

Blumcraft of Pittsburgh 460 Melwood Avenue Pittsburgh, PA 15213-1195 Tel: (412) 681-2400 Fax: (412) 681-6840 E-mail: info@blumcraft.com Web site: http://www.blumcraft.com Deadbolt Housings and Dummy Handles Blumcraft's Deadbolt and Dummy Hardware is fabricated from 1-1/4" diameter stainless steel or architectural bronze tubing. Available finishes include satin stainless, polished stainless, satin bronze, polished bronze, and statuary bronze. Powder coated finishes also available. DB-130-F Full Height Deadbolt Housing New Development Blumcraft’s top locking deadbolt hardware, DB-100, DB-130, DB-160, and DB-170 now has the capability of self-latching with key cylinders or thumbturns that spring-back when turned. This hardware is similar to the H-100 panic device except there is no crash bar for immediate exit. This new function allows entry or exit by key cylinders without the relocking requirement of previous models, i.e., the top bolt is always ready to re-latch into a standard strike or an electric strike. This hardware also incorporates a unique feature similar to a panic dogging device that can retract the top bolt and retain it, making the deadbolts ordinary push/pull handles. These deadbolts with the new feature are called DBL-100, DBL-130, DBL-160, and DBL-170 having the same look as the previous models. This hardware can be used in combination with Blumcraft exterior pull handles designated by letters. Local building codes should be reviewed for compliance. Contact Blumcraft for additional information. DH-130-F Full Height Dummy Handles DB-140-KS and DB-150-P Deadbolt Housings DH-140-KS and DH-150-P Dummy Handles DB-160-H and DB-170-JS Deadbolt Housings Electric strikes are applicable to DB-160-H and DB-170-JS Deadbolt Housings by replacing the top deadbolt with a latchbolt. CAUTION: Turning the key or thumb turn retracts and retains or extends the top latch bolt. Once the hardware is unlocked, it MUST BE RELOCKED to operate with an electric strike. Local building codes must be reviewed for compliance. INSTEAD, AS AN ALTERNATE, for DB-160-H it is suggested that Panic Device H-100-H with the same exterior pull handle be used. For DB-170-JS it is suggested that Panic Device H-100-JS with the same exterior pull handle be used. Refer to building codes. DH-160-H and DH-170-JS Dummy Handles Additional exterior pull handle configurations designated by letters can be seen in Blumcraft's full catalog.
Before sending preliminary sketches to Blumcraft, please refer to complete catalogs in Sweets: Tempered Glass Doors - 08 41 00 / BLU |
