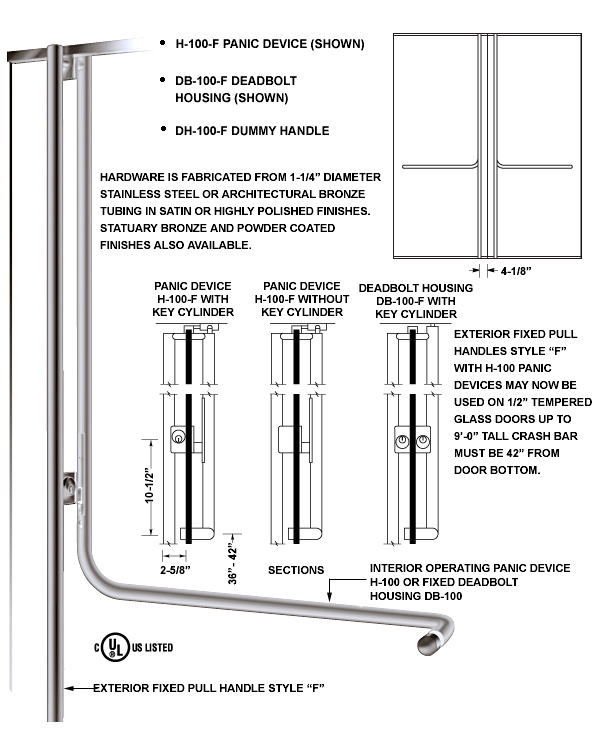

Panic Device H-100, Deadbolt Housing DB-100, Dummy Handle DH-100

Blumcraft's H-100 Panic Devices, DB-100 Deadbolt Housings and DH-100 Dummy Handles are fabricated using 1-1/4" diameter stainless steel or architectural bronze tubing. Satin and highly polished finishes are available. Statuary bronze and powder coated finishes are also available.

H-100-A, H-100-B, H-100-C, H-100-D, H-100-F Panic Devices
The top latch bolt is retracted by pushing the interior "L" shaped crash bar. A conveniently located built-in dogging device keeps the latch bolt in the retracted position and the crash bar becomes fixed. Exterior key cylinder for entry is optional.

DB-100-A, DB-100-B, DB-100-C, DB-100-D, DB-100-F Deadbolt Housings
The upper deadbolt is operated by key cylinders on both sides or with an interior thumbturn.

DH-100-A, DH-100-B, DH-100-C, DH-100-D, DH-100-F Dummy Handles
This hardware matches the H-100 Panic Device and the DB-100 Deadbolt Housing but has no locking mechanism.

Additional exterior pull handle configurations designated by letters can be seen in Blumcraft's full catalog.




MORTISE CYLINDER EQUIVALENTS
(1-1/8" Nominal Length)
MANUFACTURERMODEL NO.CAM NO.
ARROWMC61001
ASSA6551 5
BEST1E641EC4
CORBIN/RUSSWIN1000-118 A02
FALCON9854
ILCO (LORI)7186XX1
MEDECO10-0200CT-Z01
SARGENT4113-0660
SCHLAGE*20-001B-502-191
YALE 21531161

*Standard with Blumcraft Panic Devices and Deadbolt Housings

Removable core cylinders and thumbturns are applicable with the straight cam shown. Cylinder collars for Blumcraft hardware will vary with cylinder lengths longer than 1-1/8".











Before sending preliminary sketches to Blumcraft, please refer to complete catalogs in Sweets:

Tempered Glass Doors - 08 41 00 / BLU
Architectural Hardware - 08 71 00 / BLU
Display Case Doors - 12 35 59 / BLU
Railing Systems - 05 73 00 / BLU
