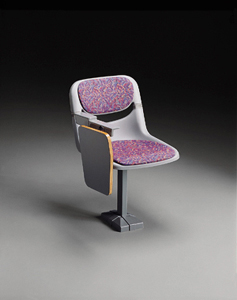

SINGLE PEDESTAL SEATING
Product Description:
Individually mounted fixed pedestal
seating with tablet writing surface provides flexibility in classroom layouts.
Product Benefits:
- Five chair options offer a wide variety in
comfort and price levels
-
Four tablet arm options give users a
choice in function, style, and price
-
Powder-coated beams and bases provide
maximum durability
Specifications:
Scope
Seating shall be Single Pedestal
Seating as manufactured by KI, Green Bay, WI.
Single Pedestal Seating shall be
floor mounted on individual bases with or without tablet arms. Bases shall
be floor or riser mounted. Floor mounted bases can accommodate sloped floors.
Materials
A. Bases
Individual pedestal bases shall
be fabricated steel column, 11-gauge 1-1/2" x 2" seamless tubular steel
for floor mounting or riser mounting installations. Vertical rectangular
column shall be welded to a 6" x 8" die-formed 11-gauge flange which bolts
to the floor or vertical face of the riser with four anchor bolts (not
furnished). Seat shells shall be mounted to an 11-gauge stamped steel spider
welded to the top of the column. Tablet arm supports shall be welded to
the spider. Plastic flange covers shall be furnished on floor mounted bases
only (not available on riser mount bases).
B. Tablet Arms
1. "G" Style Tablet Arm
Support shall be two 1-1/8" x 16-gauge
steel tubes. The lower end of the tubes shall be welded to the steel seat
spider. The 1" x 2" x 14-gauge support bracket is welded between the two
vertical tubes and under the 14-gauge steel top plate. Two injection molded
pivot cams mount to the support bracket and encompass a 5/8" diameter shaft
containing a 3/16" x 7/8" hardened key stop. This assembly provides the
total travel motion of the tablet, 0 degrees (use position) and 175 degrees
(stored position). Welded to the shaft is a 7-gauge pivot plate having
two steel hinge barrels, one which is keyed to restrict the tablet travel
from 0 degrees stored to 90 degrees use position. This pivot bracket is
assembled with a pin and spring to a hinged 7-gauge steel support plate
measuring 2-1/4" x 9" x 7-gauge which in turn fastens to the tablet board
with six #12 x 3/4" wood screws. The writing surface "G" style, shall be
9-1/8" x 18-1/8" x 13-3/4", constructed of 15mm Baltic birch plywood core,
top faced with .050" HPL and backed with a .040" HPL backer sheet. Edges
shall be clear lacquer sealed. Right- and left-hand models with all standard
laminate colors are available.
2. "K" Style Tablet Arm
Support shall be die cast aluminum
alloy in finishes to match the frame. Rotating hinge shall be die cast
aluminum with steel pins and springs. Folding mechanism shall have a minimum
number of moving parts to prevent wear. Armrest shall be an integral part
of the arm support. The cast aluminum support shall have jaws at 90 degrees
to the vertical support that match a steel adapter and are secured with
four hex head bolts. The steel adapter shall be welded to a 1-1/2" x 3/4"
nominal 14-gauge support tube which in turn is welded to the spider on
the frame. Tablet arm shall roll up from the front and rotate forward into
storage position at side of cast aluminum support.
Writing surface, "K" style, shall
be 10" x 12" x 13-1/8", plywood core 5/8" thick, 11 plys of Northern hardwood
surfaced with .030" high-pressure laminate pattern and matching plain under-surface.
Underside shall be routed to accept 3" x 3" hinge plate fastened to the
wood with four sheet metal screws. Edges shall be lacquered and sealed.
Right- or left-hand models shall be available. All standard laminate colors
are available.
Optional oversize "K" writing surface
- 9" x 12" x 16-1/8". Same construction as above.
3. "S" Style Stationary Tablet Arm
Available with all shells except
Versa Conference, Piretti Stack and Piretti 2000 Task. Vertical tubular
support of 1-1/8", 14-gauge steel is welded at the bottom to the seat spider
under the shell. At the top, a steel plate is welded to the vertical support
and secured with screws to the underside of the wood.
Writing Surface � 9-1/2" x 20-3/4"
x 12-1/2". High-density particleboard core, 5/8" thick with plastic melamine
surface. Right- or left-hand models available. Limited laminate colors
available. Edge is painted to match laminate.
Optional oversize "S" writing surface
� 10-1/2" x 20-1/2" x 17" plywood core 5/8" thick with .030" high-pressure
laminate and plain under-surface. Right or left hand models available.
Edges shall be lacquered and sealed.
4. "F" Style Flip-up Tablet Arm
Available with all shells except
Versa Conference, Piretti Stack and Piretti 2000 Task. Vertical tubing,
1-1/8" x 14-gauge, is welded to seat adapter or spider at the bottom. Formed
steel hinge at the top of the vertical tubing allows the tablet arm wood
to flip up for easy entrance or exit from the seat. Hinge is secured to
wood with screws.
Writing Surface � 9-1/2" x 20-3/4"
x 12-1/2". High-density particleboard core, 5/8" thick with plastic melamine
surface. Right- or left-hand models available. Limited laminate colors
available. Edge is painted to match laminate.
Optional oversize "F" writing surface
� 10-1/2" x 20-1/2" x 17" plywood core 5/8" thick with .030" high-pressure
laminate and plain under-surface. Right- or left-hand models available.
Edges shall be lacquered and sealed.
5. Optional Plywood Core
5/8" thick, 11 plys of Northern
hardwood surfaced with .030" high-pressure laminate pattern and plain undersurface,
is available at a slight up-charge. All standard laminate colors are available
on plywood core tablet arms.
C. Shells
1. 1000 Series Polypropylene
One-piece molded seats and backrest design on high-impact
polypropylene. Rolled edges and ribs under seat for extra strength. Nominal
flex plus textured surfaces provide good posture support and discourage slouch
seating. Four molded-in sills on underside of shell attach to spider with hi-lo
screws. Upholstery available (See options below).
2. Dorsal Shell
Two-piece injection-molded thermoplastic
seat and backrest with textured seat and backrest surface, on front only.
Seat and backrests are joined by a maintenance-free steel hinge with integral
spring mechanism which allows the upper back to articulate back with pressure.
The hinge to be covered with high-strength plastic bellows. Four molded-in
sills on underside of seat attach to spider with hi-lo screws. Upholstery
available (See options below).
3. Piretti Torsion
Seats and backrests are molded compound
curved polypropylene with a textured finish. Seat is two piece construction.
Two die cast aluminum backrest supports attach the backrest to the Torsion
mechanism. A steel tube is cast into each backrest support for added strength.
The back flex is achieved by the Torsion mechanism. It consists of two
flat torsion springs captured at both ends by brass bushings which in turn
engage with the backrest supports. The Torsion mechanism creates gradually
increasing resistance over the full 12 degrees of back flex. Upholstered
chairs have partially exposed polypropylene surfaces. Fabric is upholstered
over 9/16" foam on the backrest and 1-1/2" foam on the seat.
4. Piretti Stack
Seats and backrests shall be molded
compound curved polypropylene with a textured finish. Backrest edges shall
have an integral channel into which upholstery is secured. Upholstered
chairs shall have partially exposed polypropylene surfaces. Upholstery
covers 1/2" foam on the backrest and 3/4" foam on the seat. Molded plastic
seat liner covers the seat underside. The back shall tilt 15 degrees. Two
hidden lever mechanisms which respond to the user�s weight shall be located
in the seat. Each has a double cam action. The rear cam shall be tied to
the back structure and shall be set in motion when the occupant leans back.
This, in turn, through a spring linkage, shall activate the front cam at
a slightly different ratio (1½ to 1). The mechanism shall consist
of stamped steel frame and levers, a steel spring and molded Delrin and
nylon components. It shall be calibrated at the factory and shall need
no further adjustment.
5. Piretti 2000 Task
Seat and back innerstructure shall
be constructed of 1/2" thick 7-ply plywood. Molded foam shall be glued
to the plywood and covered with upholstery fabric. A molded plastic seat
liner shall cover the seat underside, and a molded plastic back shroud
shall cover the back of the chair. A fully upholstered back is also available.
An adjustable height back shall be available as standard allowing 2-1/4"
of vertical travel in five incremental steps, which shall lock and unlock
automatically without levers. An optional adjustable back angle inclination
shall also be available in a range from 87 degrees to 100 degrees. The
user shall be able to infinitely vary the angle of the inclination of the
back by raising a lever. Two hidden lever mechanisms which respond to the
user�s weight shall be located in the seat. Each has a double cam action.
The rear cam shall be tied to the back structure and shall be set in motion
when the occupant leans back. This, in turn, through a spring linkage,
shall activate the front cam at a slightly different ratio (1½ to
1). The mechanism shall consist of stamped steel frame and levers, a steel
spring and molded Delrin and nylon components. It shall be calibrated at
the factory and need no further adjustment.
6. Optional Upholstery Pads
1000 and Dorsal series shells. Fixed seat cushion
(FS) or fixed seat and back cushions (FSB) are mechanically fastened to front
of shell. Foam padded with upholstery cover.
D. Colors
Frame finishes � Powder-coat finish
is standard on all frames in a choice of black, sand, warm grey, and blue
grey. Plastic components match the four standard powder-coat colors. Standard
KI fabrics available; C.O.M. (customer�s own material) fabrics require
factory approval.
E. Options
Bookracks - Chrome wire bookracks
are available.
Note: Floor mounting anchors are
not provided.
INSTALLATION SECTION
FLOOR MOUNTING REQUIREMENTS
Minimum Construction Required
for Upright Installation
Wood Floors
� Minimum two layers of 3/4" thickness
tongue & groove
� APA rated grade plywood
� Allow minimum embedment 1-1/2"
with lag screws
� Use toggle bolt if less than 1-1/2"
embedment
Concrete Floors
� 3000 psi Concrete compressive
strength
� 3" thick free of obstructions
for 1-1/2"
� 4" thick for riser mount free
of obstructions for 2-1/2"
� Riser to be plumb within 1/8 degree
� Minimum anchor embedment 1-1/2"
Note: Warranty null and void if KI
product is installed on flooring not meeting minimum structural requirements
stated above.
Floor Fastener Requirements
Wood Floors
� 5/16" x 1-3/4" lag bolts; grade
5
� 5/16" flat washers
� 3/8" toggle bolts
� All hardware to be plated
� Four bolt assemblies required
per base
Concrete Floors
� 5/16"-18 or 3/8"-16 grade 5 expansion
anchors
� Standard flat washers, plated
� LockTite (red) thread lock or
equal
� Four screw assemblies required
per base
Note: Floor mounting fasteners are
not
provided.
|
