MONARCH HARDWARE

Panic and Fire Exit Devices and Trim

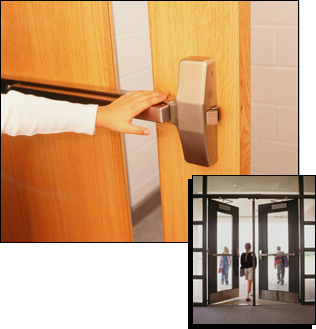

Monarch Hardware's innovative products help provide a safe and efficient building environment while meeting or exceeding all legal and regulatory requirements. Monarch panic and exit devices are functional, durable, quiet, sleek and available in a wide variety of finishes that meet virtually any door opening requirement. Select from rim, mortise, surface, or concealed vertical rod in contemporary pushbar or traditional crossbar designs.

17 SERIES
Narrow Styling in a Wide Range of Finishes
Monarch Hardware 17 Series Exit Devices are manufactured to meet the demanding requirements of high traffic installations. The sleek styling allows for application to the narrowest door stiles maintaining uninterrupted vertical lines. This allows for a streamlined, low profile installation. All 17 Series devices are available in panic exit or fire exit construction. Furnished in aluminum, stainless, brass, bronze and architectural finishes.

Features

  • REVERSIBILITY: Rim devices are non-handed. All others are easily reversed in the field.
  • FUNCTIONS: Rim and vertical have all functions built in. Specify trim when ordering or add it later. Mortise lock device functions are determined by the lock -- specify when ordering.
  • STRIKES: All strikes are surface applied except mortise lock strikes and concealed vertical rod strikes.
  • LATCHBOLTS: 3/4" throw.
  • DOGGING: 1/2 turn cam.
  • SIZES: Short-2'4" to 2'9" narrow stile door. Long-2'10" to 3'0" narrow stile door. Will fit doors other than narrow stile.
  • DOORS: 1-3/4" thick standard. Specify if other than 1-3/4" thick.
  • PROJECTION: 2-3/8" maximum, 1-7/8" depressed.
  • MOUNTING HEIGHT: 40-1/4" from CL to finished floor recommended.
  • ANSI: Certified ANSI A 156.3-1989 Grade 1 standards.
  • ELECTRIC FUNCTION: Interfaces with building security functions: latch retraction, exit alarm, delayed egress, monitoring functions.

18 SERIES
Streamlined Design for High Traffic Installation
Monarch Hardware 18 Series Exit Devices are manufactured to meet the demanding requirements of high traffic installations. The sleek styling of the modern pushbar design eliminates crossbars and arms, which allows for a streamlined, low profile installation. All 18 Series devices are available in panic exit or A Label (3 hr) fire exit construction. Furnished in aluminum, stainless, brass, bronze and architectural finishes.

Features

  • REVERSIBILITY: Rim devices are non-handed. All others are easily reversed in the field.
  • FUNCTIONS: Rim and vertical have all functions built in. (K Hub must be added for KE or LE trim.) Specify trim when ordering or add it later. Mortise lock device functions are determined by the lock -- specify when ordering.
  • STRIKES: All strikes are surface applied except mortise lock strikes and concealed vertical rod strikes.
  • LATCHBOLTS: 3/4" throw.
  • DOGGING: 1/2 turn cam.
  • SIZES: Short -- 2'6" to 3'0"; Long -- 3'0" to 4'0". Cut to size in the field. Except for cylinder dogging minimum 2'8".
  • DOORS: 1-3/4" thick standard. Specify if other than 1-3/4" thick.
  • PROJECTION: 2-3/8" maximum, 1-7/8" depressed.
  • MOUNTING HEIGHT: 40-1/4" from CL to finished floor recommended.
  • ANSI: Certified ANSI A 156.3-1989 Grade 1 standards.
  • ELECTRIC FUNCTION: Interfaces with building security functions: latch retraction, exit alarm, delayed egress, monitoring functions.

19 SERIES
Durable and Affordable for a Variety of Installations
Monarch Hardware 19 Series Exit Devices offer an economical solution for many exit hardware needs. The 19 Series is available in panic exit or B Label (1-1/2 hr) fire exit construction. The low profile, modern pushbar design is suitable for most installations where cost is a factor and finish requirements are flexible. Furnished in MAL-powder coated aluminum, M-13-powder coated dark bronze and SS/26D-stainless steel/chrome. Unique in its price range, with a full complement of trim.

Features

  • REVERSIBILITY: Rim devices are non-handed. Vertical rod devices are field reversible.
  • FUNCTIONS: “BA” (basic assembly) devices have all functions built in. Order trim with device or add later.
  • TRIM: All 19 Series trim works with all 19 devices. No special kits or parts.
  • 161 CUTOUT: Covers stock HM cutout. Control trim requires cover plate.
  • NARROW STILE ALUMINUM DOORS: Can be mounted on N.S. aluminum doors. Can be retrofitted over Jackson and Dor-O-Matic prep.
  • STRIKES: All strikes surface applied except 2130 flush mortise floor strike.
  • LATCHBOLTS: 3/4" throw.
  • DOGGING: 1/2 turn cam.
  • DOORS: 1-3/4" thick standard. Specify if other than 1-3/4" thick.
  • PROJECTION: 2-1/2" maximum, 1-7/8" depressed.
  • MOUNTING HEIGHT: 40-5/16" from CL to finished floor recommended.
  • SIZES: Short -- 2'5" to 3'0"; Long -- 2'11" to 4'0". Cut to size in the field.
  • ANSI: Certified ANSI A 156.3-1989 Grade 1 standards.
  • ELECTRIC FUNCTION: Interfaces with building security functions: latch retraction, exit alarm, delayed egress, monitoring functions.

XX SERIES
Traditional Design
Monarch Hardware XX Series Exit Devices are manufactured to meet the demanding requirements of high traffic installations. The XX Series devices are available in panic exit or A Label (3 hr) fire exit construction. Furnished in aluminum, brass, bronze, stainless and architectural finishes.

Features

  • REVERSIBILITY: Rim devices are non-handed. All others are easily reversed in the field.
  • FUNCTIONS: Rim device has all functions built in. (K Hub must be added with KE or LE trim.) Specify trim when ordering or add it later. Mortise lock device functions are determined by the lock -- specify when ordering.
  • STRIKES: All strikes are surface applied except mortise lock strikes and concealed vertical rod strikes.
  • LATCHBOLTS: 3/4" throw.
  • DOGGING: 1/2 turn cam. Cylinder dogging available, specify CD prefix.
  • SIZES: 3'0" standard. Over 3'0", please specify. Over 4'0", consult factory.
  • DOORS: 1-3/4" thick standard. Specify if other than 1-3/4" thick.
  • PROJECTION: 5" maximum, 4" dogged.
  • MOUNTING HEIGHT: 40-1/4" from CL to finished floor recommended.
  • ANSI: Certified ANSI A 156.3-1989 Grade 1 standards.
  • ELECTRIC FUNCTION: Interfaces with building security functions: latch retraction, exit alarm, delayed egress, monitoring functions.
