Q-Floor/Taproute® System

Cellular floor for steel frame construction

The industry standard

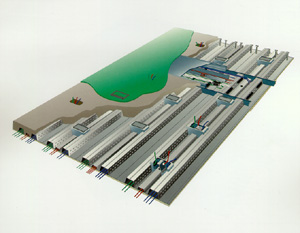

The Q-Floor composite cellular unit not only provides excellent cabling capacity and easy activation of pre-set outlet boxes, it allows full shear stud capacity for efficient composite beam design which can reduce horizontal steel frame weight by up to 35%. Since its introduction, the Q-Floor/Taproute System's dual electrical and structural function has been judged so cost-effective and beneficial that it has been used in thousands of buildings, many of them among the world's most recognizable landmarks. The system offers a number of advantages that ease installation and activation:


* All openings needed for wiring are pre-punched. Placing these openings at the neutral axis of the cellular unit retains its strength, while ensuring easy and efficient wire pulling.
* At activation, the System's Tapway™ bottomless trench header provides wire feed from power, telephone and data panels through segregated compartments and direct access to cells through shop-punched cell openings. This design optimizes low-voltage wiring space.
* The Tapway trench is completely hidden in the floor and virtually invisible after carpeting.
* Tapmate preset outlet boxes snap into place, easing installation, maintaining accurate modularity and providing a positive electrical ground for each box. No core drilling is required.
