Clickeze Optitrac Cubicle Track and Accessories

Clickeze track and accessories ship in an average of 1 day from receipt of approved order with 100% on time delivery!

Optitrac is engineered to meet the most common track specifications. This system has a number of track accessories including a unique removable end cap that allows for quick and easy carrier replacement without removing the entire track.

Extruded from aluminum, this track is available with a white baked acrylic enamel finish or clear anodized aluminum finish. Optitrac's performance is further enhanced with IV Bag Holders.

• Quiet, effortless movement
• Standard lengths: 7', 8', 9', 12', 16'
• White baked acrylic enamel finish or clear anodized aluminum finish available

• CE5000 (-AN)
• Add -AN to part # for clear anodized aluminum finish or for gray end cap/splice color
• Splices and bends available for quick, on-site installation (see Track Accessories)
• Meet immediate needs with availability through our Quick Ship program

Optitrac Carrier - Pop Out

• The hook portion releases, allowing the curtain to fall
• Use for safety in psychiatric care areas and correctional facilities (disengages at +/- 20 lbs. of pressure.)
• CE6026
• Quick Ship product

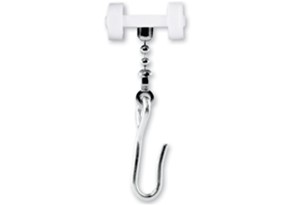

• Traditional chrome plated chain and hook
• CE5038
• Quick Ship product

• Removable plastic end caps allow for quick and easy carrier replacement without removing the entire track
• CE5100 (-AN). White or Gray available
• Add -AN to part # for clear anodized aluminum finish or for gray end cap/splice color
• Quick Ship product

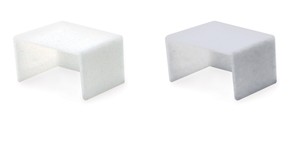

• Plastic End Cap prevents carriers from falling out of the end of the track
• Use with Optitrac track system
• CE5080 (-AN). White or gray available
• Add -AN to part # for clear anodized aluminum finish or for gray end cap/splice color
• Quick Ship product

• Use to create corners around beds and doors for privacy
• Standard angles available: 45°, 60° and 90°
• CE5092 (-AN) 2'x2' 90°
• CE5093 (-AN) 3'X3' 90°
• CE5094 (-AN) 4'x4' 90°
• CE5062 (-AN) 2'x2' 60°
• CE5042 (-AN) 2'x2' 45°
• CE5043 (-AN) 3'x3' 45°
• Available in white baked acrylic enamel or clear anodized aluminum finishes
• Add -AN to part # for clear anodized aluminum finish or for gray end cap/splice color
• Quick Ship product

• Custom bends available upon request for irregular angles, such as around doorways. These unique angles help create privacy from busy hallways and save money as less curtain material is needed
• Standard radius sizes available for most common conditions: 54"
• Available in white baked acrylic enamel or clear anodized aluminum finishes
• Add -AN to part # for clear anodized aluminum finish or for gray end cap/splice color

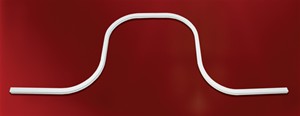

• Due to the one-piece construction, continuous bends do not require splices and are easier to install than traditional cubicle track
• Pre-bent formation provides the optimum ability to enclose patient beds, shower areas or anywhere personal privacy is required
• Available in white baked acrylic enamel or clear anodized aluminum finishes
• Add -AN to part # for clear anodized aluminum finish or for gray end cap/splice color

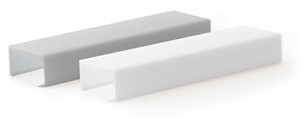

• Connects two sections of track, creating a smooth transition
• CE5050 (-AN). White or anodized finishes available
• Add -AN to part # for clear anodized aluminum finish or for gray end cap/splice color
• Quick Ship product

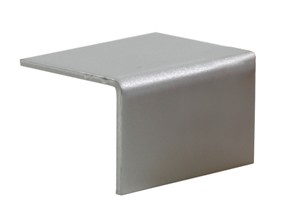

• Metal End Cap prevents carriers from falling out of the end of the track
• Simple "L" shape end cap easily screws through top of track
• Use with Optitrac track system
• CE5080M (-AN). White or gray available
• Add -AN to part # for gray end cap/splice color

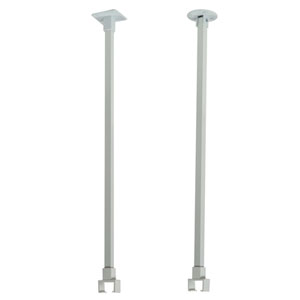

• Suspended Track Sets: use when suspending a track from a ceiling. Simply install the bracket to the ceiling, insert the post, cut to the desired length, install the bracket to the track and insert the track
• Hard Ceiling Support Brackets: includes bracket to ceiling and bracket to track
• Slope Ceiling Support Brackets: use when ceilings are angled. The angle of the sloped piece can be adjusted so that the post bracket fits flush with sloped ceiling
• CE5500 (Hard Ceiling Support Brackets)
• CE5400 (Slope Ceiling Support Brackets)
• Quick Ship product
