American Decorative Ceilings
4510 E. 71st Street
P.O.Box 605605
Cleveland, Ohio 44105
Telephone: (216) 341-2222
Fax: (216) 341-8501
Web site: http//:www.am-dec.com
E-mail: info@amer-dec.com
Corrugated Metal
American Decorative Ceilings has been a leader in the manufacturing of decorative
metal ceilings for over 20 years. ADC’s decorative ceiling systems offer
a range of adaptable designs to meet almost any architectural requirement. Our
designs include linear, cellular, reflective, illuminated, embossed or perforated
lay-in-panels and other stylish solutions.
This program displays some of our most popular ceiling designs. Additional
cut sheets, technical data, samples and new designs are available through our
national network of authorized independent sales representatives. Please use
the Sweets BuyLine service to locate the representative in your area.

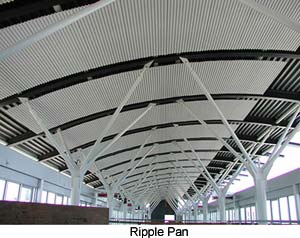

Ripple Pan
Description
RIPPLE PAN corrugated metal is available as sheet for direct application, lay-in
panels used with grid, or factory fabricated into framed wall panels or ceilings
baffles.
| Series |
Depth |
Pitch |
Profile |
Standard Sheet Size |
| RP10D: |
1/2” |
4” |
‘V’ ridge |
43”x 120” |
| RP20D: |
1/2” |
2-11/16” |
‘S’ wave |
44-3/4”x 144” |
| RP26D: |
1/2” |
6” |
‘V’ wave |
44-1/2”x 120” |
| RP30R: |
5/8” |
2-11/16” |
‘S’ wave |
44-3/4”x 144” |
| RP31R: |
7/8” |
2-11/16” |
‘S’ wave |
39-1/8”x 144” |
| RP32R: |
3/4” |
2-11/16” |
‘S’ wave |
41-1/32” x 144” |
| RP35D: |
1-1/2” |
5” |
‘S’ wave |
43”x 120” |
| RP40D: |
1-1/2” |
5-15/16” |
Trapezoid |
39-3/4”x 120” |
| RP41D: |
1/2” |
5-1/4” |
Trapezoid |
44-1/2”x 120” |
| RP50D: |
1/2” |
6” |
‘C’ ridge |
44”x 120” |
| RP50X: |
1/2” |
6” |
‘C’ dimple |
44”x 120” |
| RP60D: |
3/8” |
1-1/2” |
Trapezoid |
39-1/2”x 120” |
| RP61D: |
1/8” |
2” |
Trapezoid |
48”x 144” |
| RP62R: |
1” |
2-5/8” |
Trapezoid |
33-1/2”x 144” |
| RP63D: |
3/8” |
3” |
‘T’ ridge |
43-1/2”x 120” |
| RP63X: |
3/8” |
3” |
‘T’ dimple |
43-1/2”x 120” |
| RP64D: |
1/4” |
4” |
Trapezoid |
47-13/16”x 144” |
| RP80D: |
5/16" |
1-1/4” |
‘V’ wave |
44-1/2”x 120” |
| RP81D: |
5/16" |
1-1/4” |
‘S’ wave |
44-1/2”x 120” |
| RPQTL: |
1/4” |
1/2” |
3-D slot |
48”x 144” |
Finishes
- Standard Colors: Mill finish (F0), White (F41), Baron Ivory (F105), and
Victorian Gray (F307), UV Stabilized polyester paint
- Satin Anodized (F23R)
- Brushed Aluminum (F98)
- Brushed Kryolite (F98KR)
- Brushed Etch (F98ET)
- Standard Kynars (FKY); Flouropolymer coating
- Stainless Steel (F08)
- Custom Color (F47); Polyurethane epoxy paint
Perforations
Standard perforation pattern is 1/8” diameter holes on 21/64” staggered
centers.
Other patterns available, contact Factory for details.
No perforation is also an option.
Texture
Standard is smooth. Stucco embossed is available.
Fire Code
Non-combustible (ASTM E-84)
Material
0.020” Aluminum
0.025” Aluminum
0.032” Aluminum
0.040” Aluminum
0.050” Aluminum
0.063” Aluminum
0.018” Galvanized
0.024” Galvanized
0.030” Galvanized
0.036” Galvanized
0.048” Galvanized
0.060” Galvanized
Guide Specifications
See the 3-part specifications portion of this profile for Architectural Specifications.
|
