Steel Stitch™

The Staple-in Awning Frame System

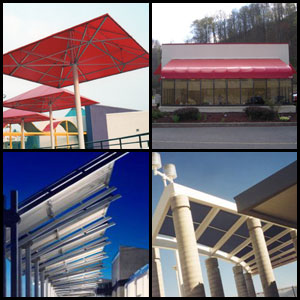

The Steel Stitch™ System offers flexibility in design and fabrication of interior and exterior awnings, canopies and back-lit signs. The aluminum alloy 6063-T5 mill finish frame system utilizes the "staple-in" method of attaching fabric, which is taken directly from the roll and stapled into a channel in the frame. A PVC or fabric covered PVC finishing trim is then driven into the channel to cover the staples. With the use of divider strips to join sections and the exclusive, patented FlashStrip™, which forms a watertight seal against building surfaces, the result is an attractive, seamless, wrinkle-free and leak-proof awning, canopy or sign. Steel Stitch’s most popular staple-in shape, a 1 in. square profile, is also available in a high strength steel called GatorStitch™. GatorStitch can be welded to other steel members for applications requiring maximum strength.

Steel Stitch Aluminum and PVC Extrusions

Channeled Stapling Members
SMP-1A: Tube 1 in. x 1 in. x 3/16 in. x 25 ft.
SMP-1B: Tube 1 in. x 1 in. x 1/8 in. x 25 ft.
SMP-1C: Tube 1 in. x 1 in. x 1/10 in. x 25 ft.
SMP1CD: Tube 1 in. x 1 in. x .090 in. x 25 ft.
SMP-1D: Tube 1 in. x 1 in. x 1/16 in. x 25 ft.
SMP-8B: Tube 1 in. x 2 in. x 1/8 in. x 20 ft. or 25 ft.
SMP-8C: Tube 1 in. x 2 in. x 1/10 in. x 25 ft.
SMP-9B: Tube 1 in. x 4 in. x 1/8 in. x 24 ft./25 ft.
SMP-9BS: Tube 1 in. x 4 in. x 1/8 in. x 24 ft./25 ft.
SMP-15B: Tube 1-1/2 in. x 1-1/2 in. x 1/8 in. x 25 ft.
SMP-22B: Tube 2 in. x 2 in. x 1/8 in. x 25 ft.

Ceiling Panel Support Members
SMP-2B: Tube 1 in. x 1-3/4 in. x 1/8 in. x 20 ft./25 ft.
SMP-2BS: Tube 1 in. x 1-3/4 in. x 1/8 in. x 20 ft. or 25 ft.
SMP-2C: Tube 1 in. x 1-3/4 in. x 1/10 in. x 20 ft./25 ft.
SMP-2D: Tube 1 in. x 1-3/4 in. x 1/16 in. x 20 ft./25 ft.
SMP-3CP: Tube 1 in. x 2-1/2 in. x 1/10 in. x 20 ft.
SMP-3CW: Tube 1 in. x 2-1/2 in. x 1/10 in. x 20 ft.
SMP-3DW: Tube 1 in. x 2-1/2 in. x 1/16 in. x 20 ft.
SMP-11D: Tube 7/8 in. x 1-3/4 in. x 1/16 in. x 20 ft.

PVC Finishing Strips

PVC ZipStrip™ Extrusion
Driven into the staple channel to reinforce and finish the seam. Available in a variety of colors and clear to match virtually any fabric color.

Fabric Covered ZipStrip™
Made with Sunbrella® or Firesist® HUV fabric that completely conceals the PVC material to create a traditional finish on woven canvas awnings and canopies. You can also get Fabric ZipStrip covered with other fabrics through our special order program.

PVC FlashStrip™ Extrusion
U.S. Utility Patent No. 5,469,672. Eliminates water seepage behind awning. Seals against most substrates. Available in clear.

PVC DividerStrip™ Extrusion
U.S. Utility Patent No. 5,044,131. Joins multiple sections with one-piece integrity – no light or water leaks between sections. Available in the most popular colors and clear.
