Wasco Products, Inc. 22 Pioneer Avenue P.O. Box 351 Sanford, ME 04073 Tel: 1-800-388-0293 Fax: 207-490-5270 Web site: http://www.wascoproducts.com
TUBULAR FRAMED SKYLIGHTS Applications - Complete systems structurally adequate to span up to 16 feet in a single pitch unit and up to 32 feet in a double pitch configuration. (Rafter and purlin spacing determined by loading requirements.) Curb-mount design for unlimited applications using site-built curbs for both pitched and flat roof applications. Skylights come in prefabricated sections and are easy to install, saving time and money. Wasco’s premium tubular framed systems allow you to create the dramatic look, function and quality of custom skylighting at an affordable cost. Tubular Framed Skylights are:

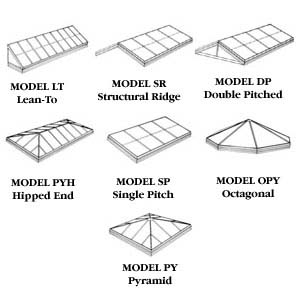

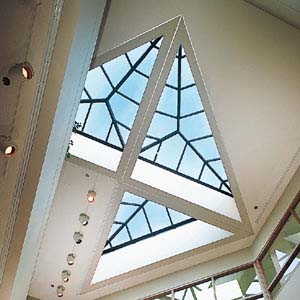

Model PY - Pyramid Model OPY - Octagonal Pyramid and Octagonal Pyramid skylights add a classic yet modernistic look while ensuring energy efficiency even under severe weather conditions. They are available in many basic shapes and sizes from the traditional square-based pyramid to hexagonal, octagonal and multi-sided polygons. Precision engineering of all component parts makes on-site assembly and glazing simple. The extruded aluminum framing system and an integral condensation and weepage gutter system carries off water to prevent troublesome leakage. Wasco tubular framed pyramids come in standard 8'x8', 10'x10', and 12'x12' sizes. Custom sizes up to 20'x20' are also available. Model PYH – Hipped End Hipped End Skylights are particularly effective for maximum daylighting in minimal space. And because they're available in standard sizes up to 12' wide, you can add the dramatic look of skylighting while still meeting construction schedules. PYH units are available in widths up to 20'-0" wide. Model SP – Single Pitch Choose Single-Pitched skylights when you need a versatile system for daylighting large floor areas such as warehouses, factories, schools, and laboratories. Perfect when you need to incorporate the skylight within the plane of the roof. Single pitched units, like all Wasco Tubular Framed Skylights, are available with the glazing of your choice and in newly extended widths to 12'.
Model DP – Double Pitched Double Pitched Skylights are designed to mount on curbs built up from a flat roof. These units may have open or vertical glazed ends, or the ends may butt up against adjacent walls. DP units may be up to 20'-0". Model SR – Structural Ridge The Structural Ridge Skylight allows you to add the beauty of natural light to the wide variety of building projects which incorporate double pitched or gabled roof designs. Designed to follow the ridge line, the construction elements are similar to Single Pitched skylights with the addition of an aluminum framing section where the two sides are joined. These units are available in widths to 20'-0". Model LT – Lean-To One of Wasco's most modern designs, the Lean-To Skylight system is ideal for atrium, walkway and rooftop uses. The large glass area utilizes daylighting effectively-- even when little daylight is available. The extruded aluminum framing system provides a weather tight seal-- allowing it to withstand dramatically adverse weather conditions. Lean-To's are available in custom sizes up to 12' wide, with or without vertical glazed ends. Models PYH, SP, DP, SR and LT available in unlimited lengths and custom widths. Wasco’s tubular-framed systems allow virtually unlimited design possibilities. Call us to talk about your ideas!
|
