Description & Uses

• Fiberglas® Duct Liners enhance indoor environmental quality by absorbing noise within sheet metal ducts. These products also contribute to indoor comfort by lowering heat loss or gain through duct walls.

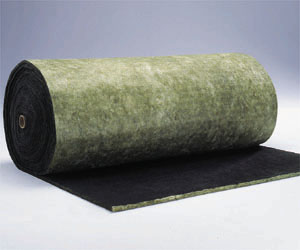

• Fiberglas Duct Liners are bonded blankets or boards of glass fibers designed to be installed inside sheet metal ductwork or plenums with metal fasteners and adhesives. Smooth, fire-resistant airstream surfaces resist damage during installation and in service. These products comply with the requirements of National Fire Protection (NFPA) standards 90A and 90B, qualifying them under other model codes.


• Aeroflex PLUS® Acoustical Duct Liner is available in a selection of densities and thicknesses to meet specific system thermal and acoustical performance requirements. (See availability table at right.) Rolls are sized to run efficiently on modern automatic coil lines. A tough, coated, flame-retardant airstream surface stands up to gouging and other abuse in the shop and on the way to the job site, and contributes to reliable long-term service at internal air velocities up to 6,000 fpm (30.5 m/s).


• Aeromat® Duct Liner, a flexible mat-faced product, is available in thicknesses from 1/2" (13mm) to 1" (50mm) for service at air velocities to 5,000 fps (25.4 m/s).


• Fiberglas Duct Liner Board is a coated, rigid insulation available in thicknesses of 1", 11/2" and 2" (25, 38 and 51mm). It is ideal for use in large ducts and plenums where air velocities do not exceed 4,000 fps (20.3 m/s).


• Aeroflex PLUS Acoustical Duct Liner and Fiberglas Duct Liner Board have factory-edge coating to comply with industry standards requiring treated transverse joints.

• Owens Corning duct liners absorb noise within the duct, helping create quiet and comfortable environments.


• These duct liners can help reduce operating costs by lowering heat loss or gain through duct walls, conserving energy and eliminating or reducing the need for external insulation.


• Installation costs are reduced because these products resist damage that can often occur during fabrication and installation. Factory-applied edge coating of Aeroflex PLUS Acoustical Duct Liner and Fiberglas Duct Liner Board saves fabricators the time and cost involved in complying with SMACNA requirements for treating transverse joints.


• The tough interior surfaces make it easier to clean the duct liners using methods and equipment described in North American Insulation Manufacturers Association (NAIMA) Publication AH122, Cleaning Fibrous Glass Insulated Duct Systems: Recommended Practices.


• Owens Corning duct liners have flame spread ratings of 25 and smoke developed ratings of 50 when tested in accordance with UL 723. They meet requirements of NFPA 90A/90B for fire resistance.


• An EPA registered biocide in the coating protects the coating from microbial growth and meets requirements of ASTM C 1338, ASTM G 21 (fungi test), and ASTM G 22 (bacterial test).
