CertainTeed Corporation Vinyl Siding and Trim 750 E. Swedesford Road PO Box 860 Valley Forge, PA 19482 Toll-Free: (800) 233-8990 Fax: (610) 341-7940 E-mail: building.solutions@saint-gobain.com Web site: http://www.certainteed.com Sweets 07460 BuyLine 2154 Vinyl Carpentry™ Triple 3-1/3" Solid and InvisiVent® Super Ventilated Soffit Vinyl Soffit and Vertical Siding General Description: Triple 3-1/3" soffit is appropriate for use in new construction for single family homes, multi-housing projects and light commercial developments. It is also an ideal product for remodeling. The invisibly vented style is intended for eaves installation only. InvisiVent Soffit provides the highest ventilation performance of any vinyl soffit available today. The solid version can be used as either a solid soffit or vertical siding.
Colors: Triple 3-1/3" soffit and vertical siding panels are available in a wide selection of colors. All colors are Spectrophotometer controlled and utilize exclusive PermaColor™ color science.

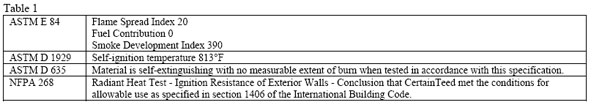

Lock: Designed for ease of installation, Triple 3-1/3" soffit panels feature a post-formed lock popular with installers for its locking assurance and trouble-free handling. Accessories: CertainTeed manufactures a wide range of siding and soffit accessories that are compatible with the Triple 3-1/3" soffit style and colors. Accessory products include installation components, soffit, window and door trim, corner lineals, corner systems and decorative moldings. Composition: Triple 3-1/3" soffit is produced using CertaVin™ custom-formulated PVC resin. This resin is produced exclusively by CertainTeed, allowing CertainTeed to maintain the high quality of its siding products. CertainTeed’s Triple 3-1/3" soffit is in compliance with the ASTM Specifications for rigid Polyvinyl Chloride (PVC) siding D 3679 and D 4477. Technical Data: Triple 3-1/3" soffit meets the weathering standard in ASTM D 3679 using ASTM D 1435 procedure. As shown in Table 1, Triple 3-1/3" soffit is in compliance with ASTM Fire and Smoke procedures and meets or exceeds International Building Code requirements.
Important Fire Safety Information: When rigid vinyl siding is exposed to significant heat or flame, the vinyl will soften, sag, melt or burn, and may thereby expose material underneath. Care must be exercised when selecting underlayment materials because many underlayment materials are made from organic materials that are combustible. You should ascertain the fire properties of underlayment materials prior to installation. All materials should be installed in accordance with local, state and federal Building Code and fire regulations. Documents: This product meets the requirements of one or more of the following specifications:
For specific product evaluation/approval information, call 800-233-8990. Installation: Prior to commencing work, verify governing dimensions of building, examine, clean and repair, if necessary, any adjoining work on which the siding is in any way dependent for its proper installation. Sheathing materials must have an acceptable working surface. Where excessive insect infiltration may be a concern, openings may be covered with corrosionresistant mesh or other screening material prior to soffit installation. Siding, soffit and accessories shall be installed in accordance with the latest editions of CertainTeed installation manuals on siding and soffit. Installation manuals are available from CertainTeed and its distributors. Warranty: CertainTeed supports Triple 3-1/3" soffit products with a Lifetime Limited Warranty including PermaColor Lifetime Fade Protection to the original homeowner. The warranty is transferable if the home is sold. Technical Services: CertainTeed maintains an Architectural Services staff to assist building professionals with questions regarding CertainTeed siding products. Call 800-233-8990 for samples and answers to technical or installation questions. Sample Short Form Specification: Product as shown on drawings or specified herein shall be Triple 3-1/3" soffit as manufactured by CertainTeed Corporation, Valley Forge, PA. The soffit shall have a .044" nominal thickness. Installation shall be in accordance with manufacturer’s instructions. Three-part Format Specifications: Long form specifications in three-part format are available from CertainTeed by calling our Architectural Services Staff at 800-233-8990. These specifications are also available on our website at www.certainteed.com.
|
