 Downloadable shop drawings and 3-part CSI Specifications for these

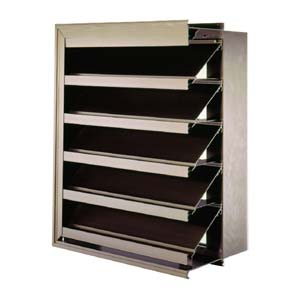

products located at www.nystrom.com/lvridx.htm Drainable Blade Louvers feature a specially constructed edge gutter and downspout
in each blade. Falling water is drained to the jambs, removing cascading water
droplets from the air stream. These features, coupled with the louver's unique
blade design, provide the industry's top draining performance. Drainable blade
louvers are highly recommended for use in applications where water penetration
and air performance are most critical. Airline drainable blade louvers allow
very low water penetration with extremely high free area. These models have
excellent rigidity, a feature that helps to minimize wind deflection. The
drainable blade is also available with a 45° blade angle.
| Model | LSA4D38 | LSA6D38 | Material
| Extruded Aluminum
Type 6063-T5
| Extruded Aluminum
Type 6063-T5 | | Blade Thickness | .081 in./2.06 mm | .081 in./2.06 mm | | Frame Thickness | .081 in /2.06 mm | .081 in./2.06 mm | | Blade Spacing | 5.09 in /129 mm | 5.91 in /150 mm | | Louver Depth | 4 in /100 mm | 6 in /150 mm | | Blade Angle | 38º | 38º | Free Area%
48” x 48” (1219mm x 1219mm) | 54% | 57% | Water Penetration
at .01 oz./square ft. of free area when
tested for 15 min., per AMCA 500 standard | 873 F.P.M. | 1023 F.P.M. | Pressure Drop
At max. intake velocity (in. water gauge) | 0.11 | .13 |
| Model | LSA2D45 | LSA4D45 | Material
| Extruded Aluminum
Type 6063-T5
| Extruded Aluminum
Type 6063-T5 | | Blade Thickness | 062 in./1.57 mm | .081 in./2.06 mm | | Frame Thickness | 062 in./1.57 mm | .081 in./2.06 mm | | Blade Spacing | 3.19 in /81.03 mm | 5.91 in /150 mm | | Louver Depth | 2 in /50.8 mm | 6 in /150 mm | | Blade Angle | 45º | 45º | Free Area%
48” x 48” (1219mm x 1219mm) | 38% | 53% | Water Penetration
at .01 oz./square ft. of free area when
tested for 15 min., per AMCA 500 standard | 1197+ F.P.M. | 1075 F.P.M. | Pressure Drop
At max. intake velocity (in. water gauge) | 0.18 | .2 |
