Downloadable shop drawings and 3-part CSI Specifications for these
products located at www.nystrom.com/xpjidx.htm

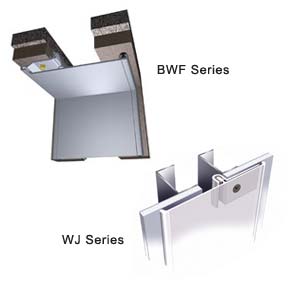

Nystrom BWF and WJ Series joint covers are designed to provide
a simple, economical, and smooth transition between adjoining walls and ceilings.
The joint anchors are first installed on the wall, and then the lightweight cover
plate is snapped into place. This clear anodized finish plate can be left exposed
or covered with the same material found on the wall, leaving only a small amount
of aluminum showing.
BWF Models: Inch (mm)
| |
Max Joint width |
Joint Movement |
BWF-100 (wall/wall):
|
Max Joint width 1” (25) |
Joint movement +/- 1” (25) |
| BWF-200 (wall/wall): |
Max Joint width 2” (51) |
Joint movement +/- 2” (51) |
| BWF-300 (wall/wall): |
Max Joint width 3” (76) |
Joint movement +/- 3” (76) |
| BWF-100W (wall/corner): |
Max Joint width 1” (25) |
Joint movement +/- 1” (25) |
| BWF-200W (wall/corner): |
Max Joint width 2” (51) |
Joint movement +/- 2” (51) |
| BWF-300W (wall/corner): |
Max Joint width 3” (76) |
Joint movement +/- 3” (76) |
PDW Models: Inch (mm)
| |
Max Joint width |
Joint Movement |
| WJ03 (wall/wall): |
Max Joint width 1” (25) |
Joint movement +/- ½” (13) |
| WJ04 (wall/wall): |
Max Joint width 1½” (38.1) |
Joint movement +/- ¾” (19) |
| WJ05 (wall/wall): |
Max Joint width 2” (51) |
Joint movement +/- 1” (25) |
WJ07 (wall/wall):
|
Max Joint width 3” (76) |
Joint movement +/- 1½” (38.1) |
