Knauf Sonic XP™ Duct Liner with ECOSE® Technology


Description

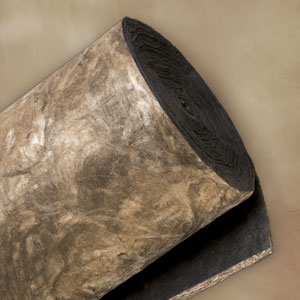

Knauf Sonic XP™ Duct Liner with ECOSE® Technology is a flexible, mat-faced insulation bonded with ECOSE Technology. It is faced with a tightly bonded mat to give the airstream a smooth, tough surface, resisting damage during installation and operation. The encapsulant edge coating eliminates airstream flaring.

ECOSE Technology

ECOSE Technology is a revolutionary new binder chemistry that makes Knauf Insulation products even more sustainable than ever. It is based on rapidly renewable bio-based materials rather than non-renewable petroleum-based chemicals traditionally used in fiber glass insulation products. ECOSE Technology reduces binder embodied energy and does not contain phenol, formaldehyde, acrylics or artificial colors.

Application

Specifically designed as an interior insulation material for sheet metal ducts used in heating, ventilating and air conditioning. Provides an optimum combination of efficient sound absorption, low thermal conductivity and minimal airstream surface friction.

Features and Benefits
  • Low thermal conductivity
  • Fire-resistant, non-corrosive, durable and resilient
  • Tough, tightly bonded mat facing
  • Excellent sound absorption
  • Energy conservation
  • Better temperature control
  • Lowers operating costs
  • Greatly reduces noise from fans and mechanical equipment as well as cross-talk and air movement
  • Withstands damage from normal handling and shop abuse
  • If necessary, can be cleaned in accordance with NAIMA's "Cleaning Fibrous Glass Insulated Air Duct Systems Recommended Practices."
  • Certified for indoor air quality as a low emitting product by The GREENGUARD Environmental Institute to both the GREENGUARD Certification ProgramSM and the more stringent GREENGUARD Children and SchoolsSM standard
  • Sustainability:
    • Carbon negative: meaning Knauf insulation products used for thermal insulating purposes recover the energy that it took to make them in just hours or a few days, depending on the application. Once installed, the product continues to save energy and reduce carbon generation as long as it is in place.
  • Fiber glass insulation with ECOSE Technology contains three primary ingredients:
    • Sand, one of the world's most abundant and renewable resources
    • Post-consumer recycled bottle glass
    • ECOSE Technology which reduces binder embodied energy by up to 70%
Specification Compliance

In U.S.:
  • ASTM C 1071; Type I
  • ASTM G 21
  • GREENGUARD Indoor Air Quality Certified®
  • GREENGUARD Children and SchoolsSM
  • NFPA 90A and 90B
In Canada:
  • CAN/ULC S102-M88
  • CAN/CGSB-51.11-92
Technical Data

Surface Burning Characteristics
  • UL/ULC classified
  • Does not exceed 25 Flame Spread, 50 Smoke Developed when tested in accordance with ASTM E 84, CAN/ULC S102-M88, NFPA 255 and UL 723
Temperature Range (ASTM C 411)
  • Up to 250°F (121°C)
Air Velocity (ASTM C 1071)
  • Maximum 6000 fpm (1829 mpm)
  • Tested to 15,000 fpm (4572 mpm)
Corrosiveness (ASTM C 665)
  • Does not accelerate corrosion on steel, copper or aluminum
Corrosion (ASTM C 1617)
  • The corrosion rate in mils/yr will not exceed that of the 1 ppm chloride solution
Water Vapor Sorption (ASTM C 1104)
  • Less than 3% by weight
Water Repellency
  • (INDA IST 80.6-92) ≥ 4
Microbial Growth (ASTM C 1338, G 21, G 22)
  • Airstream surface mat facing is treated with an EPA-registered anti-microbial agent to aid in the prevention of fungal and bacterial growth
  • Does not promote or support the growth of mold, fungi or bacteria
SOUND ABSORPTION COEFFICIENTS, OCTAVE BANDS (ASTM C 423, TYPE A MOUNTING)

Density Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC

1.5 PCF (24 kg/m3)

1" (25 mm)

.18

.36

.59

.86

.95

.90

.70

1.5 PCF (24 kg/m3)

1.5" (38 mm)

.35

.51

.83

.93

.97

.96

.80

1.5 PCF (24 kg/m3)

2" (51 mm)

.34

.64

.96

1.03

1.00

1.03

.90

2.0 PCF (32 kg/m3)

.5" (13 mm)

.09

.14

.40

.60

.73

.82

.45

2.0 PCF (32 kg/m3)

1" (25 mm)

.25

.35

.69

.89

.96

1.01

.70

2.0 PCF (24 kg/m3)

1.5" (38 mm)

.27

.55

.87

.99

1.00

.98

.85

FRICTION LOSS (INCHES OF WATER PER 100 FT.)

Air Velocity
(FPM) 		10" HD 16" HD 24" HD 32" HD 40" HD 72" HD 100" HD
500 .054 .030 .018 .012 .009 .005 .003
600 .077 .042 .025 .018 .013 .007 .004
700 .104 .057 .034 .024 .018 .009 .006
800 .134 .074 .044 .031 .023 .011 .008
900 .169 .093 .056 .039 .029 .014 .010
1000 .207 .114 .068 .048 .036 .018 .012
2000 .806 .443 .266 .186 .141 .069 .046
3000 1.797 .988 .594 .415 .315 .153 .103
4000 3.179 1.748 1.050 .734 .557 .271 .181
5000 4.952 2.724 1.636 1.143 .867 .422 .283

THERMAL CONDUCTANCE, C AND RESISTANCE, R (ASTM C 177)

Density Thickness C-Value C-Value (SI) R-Value R-Value (SI)
1.5 PCF (24 kg/m3) 1" (25 mm) .24 1.42 4.2 .74
1.5 PCF (24 kg/m3) 1.5" (38 mm) .17 .97 6.0 1.06
1.5 PCF (24 kg/m3) 2" (51 mm) .13 .74 8.0 1.41
2.0 PCF (32 kg/m3) .5" (13 mm) .48 2.73 2.1 .37
2.0 PCF (32 kg/m3) 1" (25 mm) .24 1.36 4.2 .74
2.0 PCF (32 kg/m3) 1.5" (38 mm) .16 .91 6.3 1.11


GREENGUARD Certified

Knauf Insulation products with ECOSE Technology are certified for indoor air quality as a low emitting product by The GREENGUARD Environmental Institute to both the GREENGUARD Certification ProgramSM and the more stringent GREENGUARD for Children and SchoolsSM standard. http://www.greenguard.org/

LEED Eligible Product

Use of this product may help building projects meet green building standards as set by the Leadership in Energy and Environmental Design (LEED) Green Building Rating System.

  • MR Credit 4.1 – 4.2 Recycled Content
  • MR Credit 5.1 – 5.2 Regional Materials
  • ID Credit 1 GREENGUARD For Children & Schools
STANDARD ITEMS

Density Thickness Width (34" to 36", no edge-coating) Length
1.5 PCF (24 kg/m3) 1" (25 mm) 35.5", 46.25", 47", 47.5", 48", 56", 56.25", 56.5", 59", 59.25", 59.5", 60", 68", 71"
(902, 1175, 1194, 1207, 1219, 1422, 1428, 1435, 1499, 1505, 1511,1524, 1727, 1803 mm) 		100' (30.48 m)
1.5 PCF (24 kg/m3) 1.5" (38 mm) 35.5"*, 47", 47.5", 48", 56.25", 59", 59.5"
(902, 1194, 1207, 1219, 1429, 1499, 1511 mm)		 50' (15.24 m)
1.5 PCF (24 kg/m3) 2" (51 mm) 34"*, 47", 47.5", 48", 56.25", 59", 59.5", 60"
(902, 1194, 1207, 1219, 1429, 1499, 1511 mm) 		50' (15.24 m)
2.0 PCF (32 kg/m3) .5" (13 mm) 34.25"*, 35.5"*, 47", 47.5", 48", 56.25", 59", 59.5" (870, 902, 1194, 1207, 1219, 1428, 1499, 1511 mm) 50' (15.24 m)
2.0 PCF (32 kg/m3) (25 mm) 47", 48", 59" (1194, 1219, 1499 mm) 100' (30.48 m)

Knauf Insulation GmbH
One Knauf Drive
Shelbyville, IN 46176
Toll Free: (800) 825-4434
Tel: (317) 398-4434
Fax: (317) 398-3675
E-mail: info.us@knaufinsulation.com
Website: www.knaufinsulation.us
