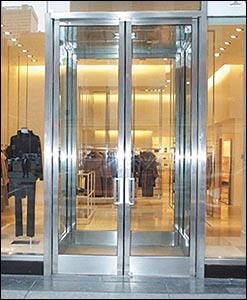

Glass Door Entrance Designs

Products and Services

• All Glass Door Rails, Patches and Framing
• All Glass Door Hardware
• Over a Dozen Different Metal Finishes Available
• Custom Lock Housings
• Clad Storefront Doors and Framing
• CAD Details
• Custom Aluminum Work and Fabrication
• Custom Break Metal Claddings

Material Available Through Your Local Glass Temperer or Door Fabricator

GLASS DOOR ENTRANCE DETAILS

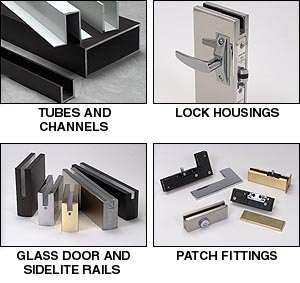

STANDARD GLASS DOOR FITTINGS

(1) Sure-Grip Glass Door Rails

• Only Tested dry glazed door rail on the market (Certified test reports for over 1 million openings)
• 3-3/8”, 4”, 6”and 10”
• Square, beveled and radiused profiles available (Beveled and radiused offered for 3-3/8” height only)

(2) Dry Glazed Sidelite Rails

• 3-3/8”, 4”, and 6”and 10”
• Square, beveled and radiused profiles available (Beveled and radiused offered for 3-3/8” height only)
• 1/8”, 3/16”, and 1/4” setting tracks

(3) Dry Glazed Center Lock and Strike Housings

• 4” x 10” and 6” x 10”

(4) Patch Fittings

• 6 1/2” x 2”

STANDARD FRAMING MEMBERS

(5) Door Header Tubes

• 1 3/4” x 1 3/4” solid 1 piece tubes
• 1 3/4” x 4” solid 1 piece and 2 piece snap-in tubes
• 1 3/4” x 4 1/2” solid 1 piece and 2 piece snap-in tubes
• 2” x 6” solid 1 piece tubes

(6) Channels

• 1 3/4” x 1” x 1 3/4” head channels
• 1” x 1” x 1” sill channels
• 1 3/4” x 1” x 1 3/4” hat channel with 1/2” lip in factory white only

STANDARD GLASS DOOR HARDWARE

(7A) Overhead Concealed Closers

• Independent closing and latching speeds
• Adjustable top end load arms
• Single hole and surface mount pivots

(7B) Floor Closers

• Vertical, horizontal and lateral adjustment in casing
• Surface mount top pivots
• Walking beam top pivot with adjustable door portion

(8) Locks and Hardware

• Standard round throw locks (end load)
• Cylinders, thumbturns and dustproof strikes
• Will prep for custom locking hardware

Optional Material

Thresholds, 1/2” x 4”

• 4”, 5” and 7” mill
• 4”, and 5” solid bronze

Vertical Stiles with weathering

• 1- 7/8” x 7/8”

CUSTOM ALUMINUM METALWORK AND DOOR HARDWARE

CUSTOM SERVICES AND PRODUCTS

Door Rails, Sidelite Rails and Framing Members

• Custom heights and widths available

Break Metal Shapes

• Custom degree of angles and lengths
• Shear and break capabilities

Cladding for Aluminum Storefront Doors and Related Framing

• Standard and custom stile variations
• Framing pieces with removable glass stops

DS-950 Corner Patch Locks

• 2” x 6” dimensions with American cylinders and thumbturns

Lock and Strike Housings

• Custom dimensions to work with most locking hardware

Custom Architectural Metal Work

• Custom aluminum tube and flat bar fabrication
• Variety of finishes from Anodized to Kynar

“Smooth As Glass” Sliding Systems

• Top hung sliding and stacking full rail systems
• Top hung sliding and stacking patch systems
• Standard bottom sliding systems

Specialty Finishes

• Kynar 500, full strength 70% Flouropolymer coatings
• Powder Coat
• Baked Enamel
• Color and Standard Anodizing

• US-32 Polished Stainless Steel
• US-32D Satin Stainless Steel
• *US-3 Polished Brass 70/30
• *US-4 Satin Brass 70/30
• *US-9 Polished Bronze 90/10
• *US-10 Satin Bronze 90/10
• *US-9M Polished Muntz 60/40
• *US-10M Satin Muntz 60/40

Look for our Sliding System Products in Section 08714.
Look for our Intertec Products in Section 10240 for Architectural Aluminum Grillework.
Look for our Sunshade Products in Section 10705.
