Ametco® Welded Wire Security Fences: A New Generation of Security Fences MANUFACTURER Ametco® is a member of the American Fence Association. PRODUCT PRESENTATION You will find here mechanically sturdy and durable products that also meet all visual criteria. Depending on the requirements imposed by the object to be protected and on individual demands, you may choose from a multitude of fence types at Ametco®. During preliminary consideration, it is important to correctly assess the level of your security needs. By means of a classification according to categories basic – medium – high, which you will find in this presentation. Ametco®’s standard systems are characterized by the use of environmentally friendly materials. For all products, Ametco® uses galvanization and powder coating for up to date corrosion protection. A wide range of 15 standard colors is available to harmonize with any environment.
Fiesta Design Fence: High Security Rating Features: Its durability and resistance characterize the easy-to-install Fiesta Design. This particular sturdiness is due to the choice of the best materials and the use of modern fastening systems with special U-shapes clamping strips. Thus, the Fiesta Design is the type most often sold in this product segment and should be given first priority, if very strong needs for security must be satisfied. In Short: This model ensures optimum perimeter protection. Due to its high quality of construction, it will meet the increased need for security in every respect. Technical Data: 2” x 8” mesh with 1/4” vertical wire and two 5/16” horizontal wires. Panel width of 98-13/16” and heights of 4, 6, and 8 feet. Two-inch square tube posts on 99-1/4” centers.
Guardian Design Fence: Medium / High Security Rating Features: Easy to install is only one of the features of Ametco®’s Guardian Design. The posts are constructed from computer-optimized profiles (2” x 2”) and delivered with aluminum-zinc coating. Aluminum-zinc is a metal coating with 2-3 times higher degree of protection than comparable hot-dip galvanized versions. As with all design’s using Ametco®’s posts, fastening is achieved by means of K-fasteners, clamping brackets and safety screws. In Short: The Guardian Design ensures perimeter protection. Technical Data: 2” x 8” mesh with 1/4” vertical wire and two 5/16” horizontal wires. Panel width of 98-13/16” and heights of 4 ft, 6 ft, and 8 ft. Special square tube post on 99-1/4” centers with K-fasteners.

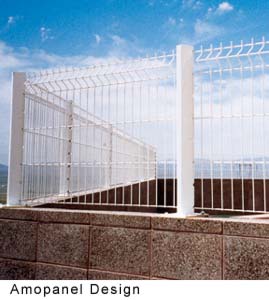

Amopanel Design: Basic Security Rating Features: Amopanel Design provides a high degree of stability due to the folds used for strengthening. The feature also makes Amopanel Design more visually attractive. In Short: Convincing arguments for Amopanel Design are its favorable cost-benefit ratio and its very attractive inconspicuous design. Technical Data: 2” x 8” mesh with 3/16” vertical and horizontal wire with 1 to 3 V-shaped stabilizing folds. Panel width 98-13/16” and 48”, 63”, 71” and 95” heights. Special 2” square tube posts on 99-1/4” centers with K-fasteners. For details, see the CAD LIBRARY portion of this Profile.

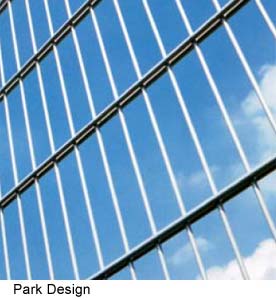

Park Design Features: The Park Design is the most economical of the Ametco® Welded Wire fencing line and still provides security for your perimeter fencing requirements. Manufactured with Ametco®’s high-tensile welded wire that is hot dip galvanized before powder coating. This system provides the Park Design with the best corrosion protection in the industry. In Short: The Park Design offers economical perimeter protection. Technical Data: 2" x 8" mesh with 3/16" vertical wire and two 1/4" horizontal wires. Panel width 9813/16" and heights of 4, 6 and 8 feet, special 2" square tube post with K-fasteners on 991/4" post centers.

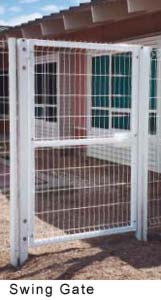

Gates Standard swing gate sizes are 4-foot single leaf, 8-foot double leaf and 12-foot double leaf. Gates are furnished with all hinges and hardware. For gate details featuring the Amopanel Design, see the CAD LIBRARY portion of this Profile. ASSEMBLY and INSTALLATION MATERIALS and FINISHES Lasting Colors The hot dip galvanizing will leave rough areas on the treated surface. These rough areas do not impair the coating in terms of corrosion resistance. The galvanized product is then powder coated. The color gives an “extra” touch of appeal to the Ametco® fencing system, harmonizing with its surroundings. Once you have selected the color from the wide choices available, it will endure exposure without crazing or fading. For jobs where a smooth surface is requires, see Ametco®’s fixed louver aluminum or stainless steel products. Colors
We also offer custom colors on a minimum order basis. Please contact Ametco® for additional information. Finish Warranty The warranty for the powder coated finish is 20 years. The polyester coated galvanized metal remains corrosion free for years. Performance properties for the polyester coating are as follows:
A 2-part polyurethane coat on top of hot dip galvanized is used when gates are too large to be powder coated. Ametco® Mfg. Corp. certifies that its fencing systems are free from defects in material and workmanship. The polyester coated fencing is guaranteed not to crack, peel or blister for a period of 20 years. Accidental damages, defects resulting from improper installation and damage from vandalism or abuse are not included. Warranty is limited to a prorated value of the coating, not to exceed the original value of the coating. Or, at Ametco®’s discretion, re-coating the panel but not to include labor removal or reinstallation. TECHNICAL SUPPORT
For our 3-part architectural specifications in CSI format, see the 3-PART SPECIFICATIONS portion of this Profile. For details, see the CAD LIBRARY portion of this Profile. CODES and CERTIFICATIONS AVAILABILITY and COST Cost: Costs are quoted on a job basis due to varying requirements of each project. Cost may be obtained by calling Ametco® Manufacturing Corp. at (800) 321-7042. OPERATION and MAINTENANCE
