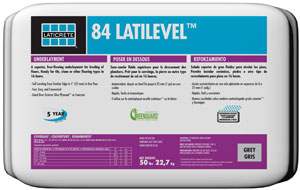

LATICRETE^® 84 LatiLevel^™

PRODUCT DESCRIPTION

LATICRETE 84 LatiLevel is a cementitious powder that is mixed with water to produce a free-flowing self-leveling underlayment mortar for leveling of interior sub-floors. Can be poured from feather edge to 1" (25 mm) thickness in one pour, LATICRETE 84 LatiLevel will produce a smooth and flat surface with excellent durability, which is ready for foot traffic in 16 hours.

For leveling uneven concrete or exterior glue plywood floors; smoothing rough, spalled concrete and finishing rough screed concrete slabs. Ideal for new construction and remodel projects, in both residential and commercial applications.

• From feather edge to 1" (25 mm) thickness in one pour
• Economical and easy to use
• Long heal times for extended workability
• Water resistant, non-shrinking
• Pumpable, free-flowing; eliminates sanding and troweling
• Compatible with most adhesives
• Comforms to EN13813 with a CT-C25-F7-B10 Classification

• Concrete
• Cement backer board*
• Cement terrazzo**
• Exterior glue plywood**
• Ceramic tile and stone**
• Cement mortar bed

• Ceramic tile
• Carpet
• Linoleum
• Stone
• Vinyl tile
• Wood parquet
• Traffic bearing epoxy coating

Factory sealed containers of this product are guaranteed to be of first quality for one (1) year* if stored off the ground in a dry area at 65–80°F (18–26°C) 50% relative humidity.
* High humidity will reduce the shelf life of bagged product.

• For interior use only
• Do not install when surface temperature is below 50°F (10°C)
• Do not install over painted or gypsum-based surfaces
• Do not exceed recommended mixing ratio as indicated in mixing instructions. Over watering may weaken product properties
• Never mix with cement or admixtures
• Not a wearing surface, must be covered with flooring
• Adhesives/mastics, mortars and grouts for ceramic tile, pavers, brick and stone are not replacements for waterproofing membranes. When a waterproofing membrane is required, use a LATICRETE Waterproofing Membrane (see Section 10 FILING SYSTEMS)
• Do not bond directly to luan, OSB, particle board or Masonite^® surfaces
• When using waterproofing or anti-fracture membrane, it should be installed over self-leveling underlayment

• During cold weather, protect finished work from traffic until fully cured
• Contains portland cement and silica sand. May irritate eyes and skin. Avoid contact with eyes or prolonged contact with skin. In case of contact, flush thoroughly with water
• Do not take internally. Silica sand may cause cancer or serious lung problems. Avoid breathing dust. Wear a respirator in dusty areas
• Keep out of reach of children

• ALL CONCRETE SURFACES MUST BE SHOT BLASTED/MECHANICALLY ABRADED
• All surfaces must be primed with LATICRETE^® Admix and Primer and should be between 50°F (10°C) and 90°F (32°C). Surfaces should be structurally sound, clean and free from all dirt, oil, grease, adhesives, paint, sealers or curing compounds
• New concrete surfaces must be at least 28 days old
• Expansion joints shall be provided through the tile work from all construction or expansion joints in the substrate. Follow ANSI specification A108.01-3.7 "requirements for movement joints: preparations by other trades" or TCNA detail EJ–171 "Movement Joints—Vertical & Horizontal". Do not cover expansion joints with mortar

• Installer must verify that deflection under all live, dead and impact loads of interior plywood floors does not exceed industry standards of L/360 for ceramic tile and brick or L/480 for stone installations where L=span length
• Minimum construction for interior plywood floors:
  SUBFLOOR: 5/8" (15 mm) thick exterior glue plywood, either plain with all sheet edges blocked or tongue and groove, over bridged joists spaced 16" (400 mm) o.c. maximum; fasten plywood 6" (150 mm) o.c. along sheet ends and 8" (200 mm) o.c. along intermediate supports with 8d ring-shank, coated or hot dip galvanized nails (or screws); allow 1/8" (3 mm) between sheets and 1/4" (6 mm) between sheets edges; all sheet ends must be supported by a framing member; glue sheets to joists with construction adhesive.

  UNDERLAYMENT: 5/8" (15 mm) thick exterior glue plywood fastened 6" (150 mm) o.c. along sheet ends and 8" (200 mm) o.c. in the panel field (both directions) with 8d ring-shank, coated or hot dip galvanized nails (or screws); allow 1/8" (3 mm) to 1/4" (6 mm) between sheets and 1/4" (6 mm) between sheet edges and any abutting surfaces; offset underlayment joints from joints in subfloor and stagger joints between sheet ends; glue underlayment to subfloor with construction adhesive. Refer to Technical Data Sheet 152 "Bonding Ceramic Tile, Stone or Brick Over Wood Floors" for complete details.
• Prime cleaned and properly prepared surface with LATICRETE Admix and Primer as described in "Priming" section
• Allow primer to dry accordingly. Install 3.2# galvanized diamond metal lath over entire wood floor. Ensure proper fastening to eliminate any loose sections. Do not install over wet primer
  Note: Galvanized diamond metal lath can be omitted when installing LATICRETE 84 LatiLevel over LATICRETE Floor HEAT
• Install LATICRETE 84 LatiLevel^™ over floor in accordance with "Application" section below

• Consult adhesive manufacturer and any governmental agencies for proper removal of any adhesive containing asbestos. Consult the Resilient Floor Covering Institute "Recommended work & practices for removal of resilient floor covering" for removal instructions. All cutback adhesive must be removed by thoroughly shot-blasting the floor prior to installation of LATICRETE 84 LatiLevel

• Skim coat existing ceramic tile, cement terrazzo or stone with LATICRETE 254 Platinum Rapid (min. 1/8" [3 mm] thick continuous coating). Allow to dry
• Prime surface according to "Priming" section and install LATICRETE 84 LatiLevel^™ according to "Application" section

Use LATICRETE Admix & Primer with every application. Shake thoroughly before using. Pour, mop, or spray primer onto the surface. Apply an even thickness of primer to the prepared substrate using a bristle broom to ensure the primer is absorbed into the substrate, removing any puddles or thick areas. Per 5 qt. (4.8 l) jug of primer, dilute 1:1 with clean potable water in a clean mixing pail. Coverage is approximately 500 ft² (45 m² ) when mixed 1:1. If primer dries within 45 minutes, slab is excessively dry and will require another application as directed above. Allow the primer to dry to a clear film usually 1–3 hours, but less than 24 hours before application of LATICRETE 84 LatiLevel . Note: Keep primed surface clean. Do not allow any foot traffic onto surface.

Place 4.5–4.75 qts (4.25–4.5 l) of clean potable water into a clean pail. Add one 50 lb (22.7 kg) bag of LATICRETE 84 LatiLevel slowly into the pail; mix as the material is poured. Use a high speed mixer (500 rpm) and mix thoroughly for one minute for a smooth creamy mix with no clumps. Follow all mixing instructions on bag. Be sure to not add too much water. Mix no more than two bags at a time with appropriate water.

LATICRETE and LATAPOXY grouts require routine cleaning with a neutral pH soap and water. All other LATICRETE and LATAPOXY materials require no maintenance but installation performance and durability may depend on properly maintaining products supplied by other manufacturers.
