Series "C" Custom Frame Profiles

Custom Frames with Equal Rabbets for Masonry, Wood or Metal Stud Walls

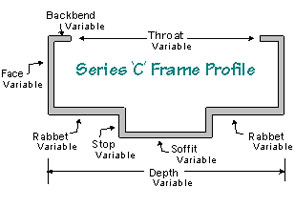

Design flexibility utilizing frame profiles with made-to-order profiles and dimensions. Within tooling limits, Ceco frames can be specified in made-to-order dimensions for depth, throat, face, rabbett, soffit, or backbend to include a caulking groove, shadow box, splayed trim line, splayed top, stepped rabbet and others.


Series "C" Custom frame profiles have precision die-cut corners with positive locking tabs to assure rigid-assembly connections. Available in hundreds of profiles and dimensions in either knock-down or set-up & welded.

  • Made to Order Dimensions
  • 18, 16, 14 and 12 gage
  • Equal Rabbets either of
    • 1-15/16" for 1-3/4" doors
    • 1-9/16" for 1-3/8" doors
  • Single Rabbet
  • Label
    • Underwriters Laboratories
    • Warnock Hersey
    • Factory Mutual
  • Single Rabbet
    • 3" to 14" in 16 & 14 Gage
    • 3-3/8" to 14" in 12 Gage
  • Double Rabbet
    • 4-5/8" to 14" in 16 & 14 Gage
    • 5-1/4" to 14" in 12 Gage

Custom Series Frame Profiles:

Custom Series CQA Profile
  • Hemmed Return
  • 18, 16, 14 Gage
  • Depth 4-5/8" to 14"

Custom Series CQB Profile
  • Flat Trim Return for:
    • Masonry Wall
    • Steel Framed Wall
  • 16, 14, 12 Gage
  • Depth 4-5/8" to 14"

Custom Series CQC Profile
  • Caulking Groove at Return
  • 16, 14, 12 Gage
  • Depth 4-5/8" to 14"
  • 5-1/4" to 14" on 12 Gage

Custom Series CQD Profile
  • Shadow Box Trim Line
  • 16, 14 Gage
  • Depth 4-5/8" to 14"

Custom Series CQE Profile
  • Reverse Shadow Box
  • 16, 14 Gage
  • Depth 5-3/4" to 14"

Custom Series CQG Profile
  • Splayed Trim Line
  • 16, 14 Gage
  • Depth 4-5/8" to 14"

Custom Series CRH Profile
  • Splayed Stop
  • 16, 14 Gage
  • Depth 4-5/8" to 14"

Custom Series CQI Profile
  • Stepped Rabbet
  • 16, 14 Gage
  • Depth 5-7/8" to 14"

Custom Series CRJ Profile
  • Hemmed Stop
  • Supplied in only one profile
  • 16 Gage only
  • Depth 2-1/8" minimum

Custom Series CQK Profile
  • Flushed glazed entrance
  • 16, 14 Gage
  • Depth 4-3/4" to 14"

Custom Series CQL Profile
  • Flush glazed mullion
  • 16, 14 Gage
  • Depth 4-3/4" to 14"

Custom Series CQN Profile
  • Rough Buck - Slip Jambs
  • Supplied in this profile only
  • 16, 14, 12 Gage
  • 16 & 14 gage: depth 4-5/8" to 14"
  • 12 Gage: depth 5-1/4" to 14"

Custom Series CQO Profile
  • Center Glazed Entrance
  • 16, 14, 12 gage
  • 16 & 14 gage: depth 5-3/4" to 14"
  • 12 gage: depth 6-3/4" to 14"

Custom Series CQP Profile
  • Pocket Frame
  • Strike Jamb 2"
  • 16, 14 gage
  • Depth 4-5/8" to 14"

Custom Series CQQ Profile
  • 60 degree flush plaster groove
  • 16, 14 gage
  • Depth 4-5/8" to 14"
