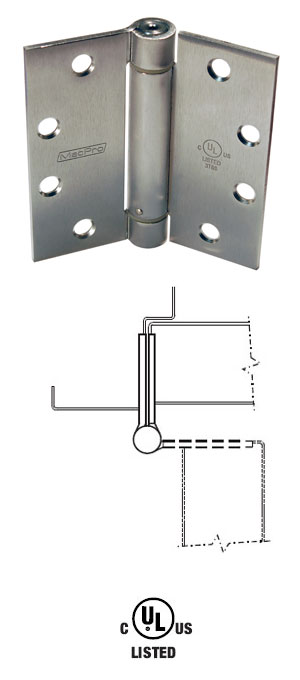

Spring Hinge MPS60

MPS60 – Performance tested by UL to exceed ANSI A156.17 Standard for Grade 1 Single Acting Spring Hinges. Base material available in powder prime coat or dull chrome finish.

Recommended for standard weight hinge applications requiring self-closing control, such as apartments, hotels, motels, dormitories, office buildings, etc.

MacPro by McKINNEY templated hinges are made to conform to ANSI/BHMA 156.1, 156.7, 156.17

Features: Ease of Adjustment, Tamper Resistant, Durable & Reliable

Available Finishes: P (powder prime), and US26D

Available Size: 4-1/2 x 4-1/2 (114.3mm x 114.3mm), Gauge=.134

• P(powder prime), and US26D
• MPS679 – Set of Two MPS60 spring hinges and one MPB79 fullmortise butthinge

Swing Clear Full Mortise Hinge Fasteners: Hinge Size : 4 1/2 x 4 1/2 Machine : 1/2 x 12-24 Wood : 1 1/4 x 12

Packing: Packed 3 each per box, 48 per carton. All machine x all wood screws

ANSI Cross Reference: K81071 Steel, K81071F Steel, A8112 Steel, A8133 Steel
