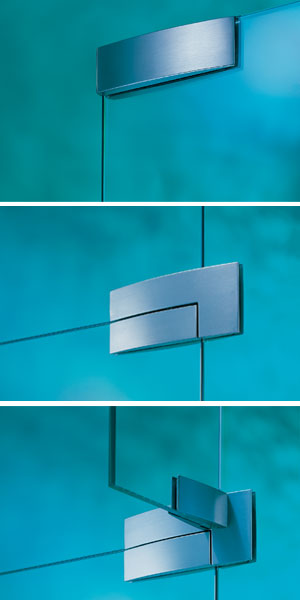

DORMA Mexico ARCOS Universal Versatility plus multiplicity. ARCOS Universal Versatility plus multiplicity. Unlimited scope. Patch fittings and connector hardware for overpanels and side panels, fin fittings for particularly large systems — with the curved arc motif of the ARCOS design always incorporated in each component. Gentle reflections that change with the planes give both the glass and its fittings the appearance of a harmonious whole. ARCOS Universal is flexible in its application — for a glass thickness of 3/8" in the standard version plus glazing of 7/16" or 1/2" thickness, if required. The pivot point can be set at either 2 1/8" or 2 1/2". Door weights can be anything up to 175 pounds, with widths up to a maximum of 43 1/2 inches. The illustrations show just a few examples from the comprehensive ARCOS Universal collection — products offering 24 possible standard combinations for toughened glass assemblies. The innovative clip-on technique incorporated in the hardware ensures that
the cover caps can be secured to the basic components so that the fixing is
virtually invisible.

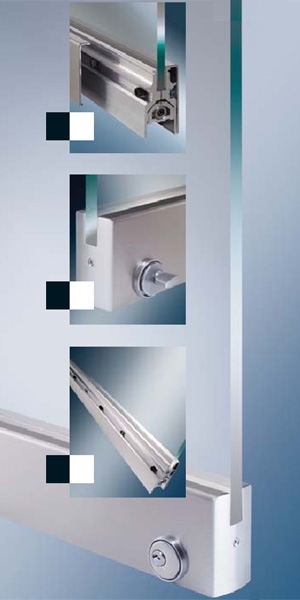

DORMA DRS The DRS System, the original clamp-on rail system, from DORMA Glas, allows for the easiest and quickest door assembly of any rail system on the market. DRS Rails are received with all DORMA hardware installed, so no hardware has to be removed and remounted—simply clamp it on and it is ready for installation. The DRS Clamp-on system allows for job-site door height adjustment to compensate for irregularities in the door opening. Additionally, the snap-on rail covers need not be installed until job inspection, keeping construction site damage to a minimum. The DORMA DRS features Easi-Align™ adjustable prep blocks for setting door clearances/pivot centers while the door is installed. With DORMA’s Easi-Align system, one rail size (35-3/4") can be used for openings of 36" or 72". This operation reduces stocking requirements, shortens lead times, and simplifies ordering requirements. Innovative design, quality materials, and the finest workmanship mean that DRS Rails have the features that meet the most demanding conditions. The DRS has been independent laboratory tested for holding force under any climate condition. Tested at temperatures ranging from –10° to 150°, DORMA’s DRS rail pull tested for over 3000 pounds per 3' under the worst conditions, and for over 5000 pounds in the best conditions, all without failure or slippage. The DRS system offers dry glaze sidelight rails to match door profiles, plus a complete range of saddles to match clearances. Roll-in gaskets for easy glazing eliminate the use of silicone during glass installation. The system is available in 3-5/8" square or tapered, 6" square and
10" square heights, accommodating both 1/2" and 3/8" glass. The
DRS also offers nine stock finishes, with custom finishes available.
|
