Steel safety railings are available in many configurations and protect both people and property at innumerable different types of business locales. Steel railings can be fixed in place or moveable, depending on what makes the most sense for each application. Portable gates and expanding gates are similar, yet often just as essential safety equipment.
Railings help and protect people on uneven walkways and keep them from dangerous falls at concrete drop-offs. Many handrail units are designed to be interlocked so that they become continuous-run systems of both protecting people and guiding them in orderly movement. Another often essential safety product for guiding people in an orderly manner is the indoor personnel guidance barrier, used most frequently inside high-people-traffic locales such as airports, banks, restaurants, schools, and theaters.

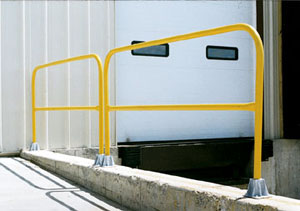

Description: Beacon steel pipe railing safety is designed to protect people from drop-offs and uneven walkways. Mounting options for this railing safety system include socket sleeves along with cast steel sockets and barricade base for convenient removal of the railings.
Construction: Schedule 40 pipe.
Size: 42" top rail height and a 21" midrail height. The outside diameter is 1⅝". Various lengths ranging from 24" to 96".
Color: Powder coat safety yellow finish.

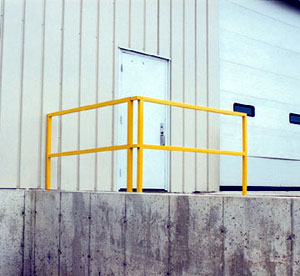

Description: Beacon steel square railing safety system is an excellent way to protect workers and machinery. The safety handrails are ideal for walkways, loading docks, mezzanines and floor openings. The railing safety system is available with or without toeboards.
Size: 1¾" square tube, a 42" overall height and a 21" midrail height with various lengths ranging from 48" to 120".
Color: Highly visible safety yellow powder coat finish.
Options: Optional wire mesh (Model BWM), optional connection tubing (Model BCSEC), optional 4" high toeboard (Model BTOE-B), optional corner connectors (Model BC-CON) and optional 60" sliding gate (Model BS-GATE-60).

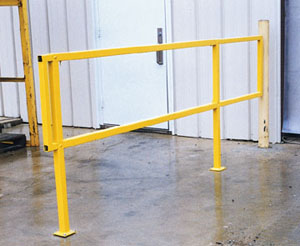

Description: Beacon steel safety railing system can be employed to create walking paths or can be used as a sliding gate for continuous-run handrail systems. This safety railing system can be used at commercial buildings as well as at residences. An optional 96" long toeboard is available.
Service Range: 96" to 168".
Size: 42" high with a 21" midrail.
Color: Safety yellow.
Description: Beacon crowd control barriers are lightweight, portable, and interlocking. Each crowd control barrier is a 1-piece handrail that is both functional and attractive. The upright bars of the crowd control barriers are vertically spaced at 5¼" intervals and include connectors to attach multiple units to each other
Construction: Welded steel construction.
Size: 102" long x 40" high.
Description: Beacon stainless steel portable barrier helps enable orderly movement of people in indoor or outdoor settings that tend to attract many people. The portable barrier for crowd control is free-standing and cannot rust. Each portable barrier unit includes weighted round base feet, which can be removed quickly to be stored. The stainless steel portable barrier units feature a chain interlocking system allowing them to be attached to each other, enabling long runs to be formed.
Size: 96", long x 42", high with a base diameter of 12".
Description: Beacon expandable gates are ideal for helping to prevent accidents by limiting access to unsafe areas. The expandable gates are interlocking and nestable, and their lightweight design allows them to be moved quickly.
Construction: Steel.
Size: Collapsed width of 14½", an expanded width of 144" and an overall height (when collapsed) of 37".
Description: The Beacon portable gates are ideal for blocking access to valuable equipment or potentially hazardous areas. The portable gate expands and then locks to block any opening. When the portable gates are not being used, they can be folded and moved quickly for storing. This safety gate has 3" rubber casters. Six foot long add on sections are available.
Size: Collapsed width of 78" and an expanded width of 144". Collapsed height of 79"½ and a usable height of 73½".
|
