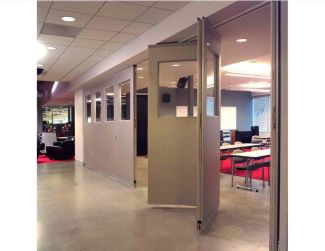

Acousti-Seal Models 932 / 942 / 912 / 932FS / Operable Walls – Paired Panels PRODUCT PRESENTATION Paired Panel Systems For straight-line openings that do not require multiple layouts or remote storage, paired panel systems are usually the answer. Panels are hinged together in groups of two, so paired panel systems provide quick and easy setup. And because one carrier is located in the center of each panel, no auxiliary storage track or support is required. They're ideally suited for applications that require exceptional durability, acoustic control and frequent use. Floor-supported paired panels are available for installations where the existing overhead structure cannot support the partition's weight. When not in use, paired panels are designed to be stored at either or both ends of an opening for added storage flexibility. Paired panels are frequently used to divide classrooms, conference or meeting rooms and office space. Acousti-Seal 932
STC Ratings (ASTM E90) and Weights (average) Non-Steel Skin: 41 STC: 6.5 PSF 47 STC: 7 PSF 50 STC: 8 PSF Steel Skin: 28 STC: 6 PSF 45 STC: 8 PSF 50 STC: 8 PSF 52 STC: 11 PSF 55 STC: 13 PSF Pocket Doors Pocket Doors to match the construction of all Acousti-Seal Operable Walls are available from Modernfold. Please call Modernfold for technical assistance and refer to the specifications attached to this Product Profile. USES, APPLICATIONS Modernfold is the right choice for projects large or small. Modernfold built the operable partition for Chicago's McCormick Place Expansion, a moveable wall nearly 830 feet long and four stories tall with a 2-hour fire rating (ASTM E-119). Regardless of the size of the project Modernfold will assist in finding the right partition for the job. Modernfold partitions are used extensively in schools, commercial buildings and churches around the world. TECHNICAL SUPPORT Specs for Models 932, 942, 912, 932FS: Please refer to the formatted architectural specifications attached to this Product Profile. Details for Models 932 and 932FS: Please refer to the CAD Library details attached to this Profile for Model 932 Top Support OPERATION, MAINTENANCE Modernfold Service Centers are the only coast-to-coast network of factory trained certified technicians for operable walls and accordion partitions. Regardless of the brand, Modernfold Service Centers are ready to maintain or repair the partitions. Call 1-800-869-9635 to locate the nearest Modernfold Service Center. MODERNFOLD, INC. |
