Grasspave²
The Paving Choice that Protects and Enhances the Environment
Company Information and Technical Assistance
The owners of Invisible Structures, Inc., have been in the grass paving
business since 1982, and they believe that technical assistance should
be provided by qualified landscape architects and contractors for the best
possible installation for your important clients. Specifications, details,
installation, and maintenance instructions are provided toll free by phone,
fax, CADD disks, and the Internet. Product literature can be found in Sweet’s
Section 02795 or through calling 1-800-233-1510, and overseas: Country
code + 303-373-1234.
Product Advantages

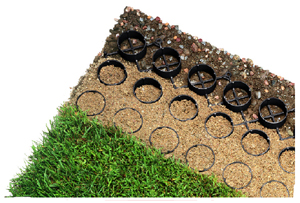

The ring is the strongest shape. By transferring vehicle or pedestrian
weight to the base course below, the ring prevents compaction of the root
zone while only taking 8% of top root area with plastic structure. 92%
area for root growth is an unmatched horticultural difference which gives
longevity of your grass installation and durability for the grass to recover
under stress. Grasspave² is invisible when installed, and the finished
look is 100% sparkling green grass. Strict zoning board water runoff issues
are met with ease, and costs are lowered with no requirements for detention
basins or water clean-up systems due to asphalt contamination.
Installation Savings
Contractors appreciate the new large rolls in nine sizes from 10m²
(108 S.F.) to 125m² (1346 S.F.) that are fast and easy to install,
reducing labor costs significantly. The new 100 square meter roll (1076
S.F.) is shown in the inset. Cutting and shaping to fit requires only pruning
shears on the grid, leaving the rings whole. Flexible Grasspave² rolls
will conform to subtle undulations on the site.
Recycled Content 100%
Invisible Structures, Inc., has been using 100% post-consumer recycled
plastic since 1988 and maintains its own full-blown collection, grinding,
and molding operation. Product quality is high with 100% recycled plastic,
and the environmental benefits are significant from landfill issues to
water quality, stormwater runoff, and increased oxygen.
Grass Paving Applications
Detroit Grand Prix for the transport vehicles in the pit area.
West Farms Mall Shopping Center - 192,000 S.F. of overflow parking.

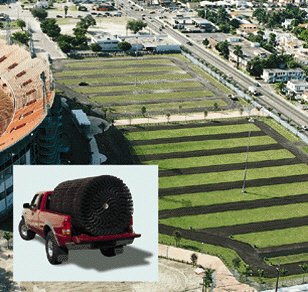

Orange Bowl, Phase I and II for stadium parking that addresses aesthetic
and runoff issues.
Cincinnati Riverfront Venue - River front improvement for Tall Stacks
Festival.
Cherry Creek North - Urban plaza used for fire access & Cherry
Creek Arts Festival.
Private Residences - From estate parking to short driveways to RV access.
Firelanes - Hotels, Schools, Condos, Correctional Facilities, Hospitals,
Offices, Apts.
Electric Substations; University foot paths; Amphitheaters; Parks;
Street Widening and Trails.
Specifications
Nine roll sizes from one meter to 2.5 meters wide and 10 meters to
50 meters long weighing from 41 lbs. to 513 lbs. Injection molded from
100% post-consumer recycled HDPE/LDPE plastic in color black. Strength
when installed is 5720 psi (400 kg/cm²), which is stronger than concrete
when installed over properly prepared base course. The loading capability
is beyond all known vehicle requirements by as much as 50 times. Model
#1010 is one meter by ten meters (108 S.F.), weighs 41 lbs. and is shipped
same day by U.P.S. The larger roll sizes are shipped via Yellow Freight
or dedicated carrier. Hydrogrow soil polymer is shipped free with every
order. CSI specifications are available by fax 1-800-233-1522, CADD phone
1-800-233-1510, or Internet: www.invisiblestructures.com. Details and specs
can be found on our web site. Product as manufactured by Invisible Structures,
Inc., 1600 Jackson Street, Suite 310, Golden, Colorado 80401, 800-233-1510,
and Fax 800-233-1522.
