Hydroguard^®

Hydroguard^® provides both insulation and lightweight ballasting for PMR assemblies. Composed of STYROFOAM^® panels topped with latex modified concrete, Hydroguard acts as a durable barrier, protecting the roofing membrane from temperature extremes and mechanical abuse. Lightweight and easy to install, Hydroguard is ideal for flat roof applications where the use of stone ballast is not practical.

• Provides protection to MM6125^® from environmental extremes and construction and maintenance traffic.
• Eliminates condensation problems by insulating the roof assembly and keeping the dew point above the roof membrane.
• Smooth, attractive surface is resistant to thermal shock, sun, hail and vandalism.
• CFC free and reusable.

• Hydroguard is designed to accept light foot traffic. In applications where excessive foot or construction traffic is anticipated, walkway pads of concrete pavers must be used.
• Depending on the site and wind conditions, additional securement may be required.
• Panels should be shielded from direct sunlight until installation.

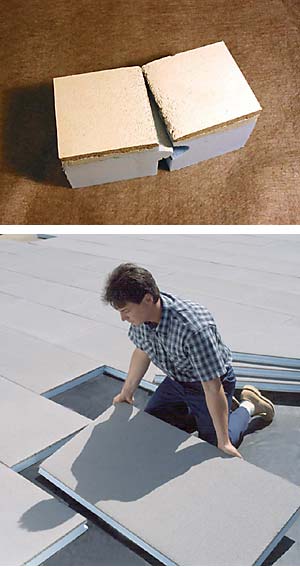

Hydroguard is manufactured in 2 foot by 4 foot panels composed of Dow STYROFOAM^® extruded polystyrene foam insulation topped with a latex modified concrete mortar surface. Tongue and groove edges along the long sides allow each board to be interlocked during installation, creating a continuous layer of thermal protection.

Hydroguard is topped with a nominal 3/8 thick surface and weighs on average 4.5 pounds per square foot. For applications where additional protection is required, Hydroguard is also available with a thicker concrete topping. Heavy Hydroguard has a 15/16 inch thick surface and weighs approximately eleven pounds per square foot.

Hydroguard comes in six attractive colors, including natural gray (standard), white, red, green, light brown and tan.

Also available, Hydroguard RE an ENERGY STAR qualified roof product that has an initial reflectance of >80%.

For detailed product information please visit our Web site (www.hydrotechusa.com), return the fax form below or contact us at 800-877-6125 or info@hydrotechusa.com.
