RPS EQUIPMENT RAILS
THE SOLUTION FOR MOUNTING ROOF EQUIPMENT

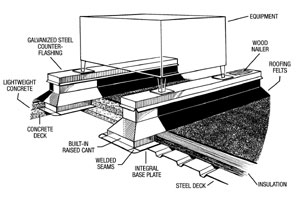

RPS Equipment Rails are prefabricated sheet steel structural members designed for all types of roof systems. Provides a uniform mounting pedestal for condensers, blowers and other roof mounted equipment. Manufactured in any length to match the equipment and to span the proper number of roof joists. RPS Equipment Rails have a high bearing capacity attained by a system of internal gussets welded into position at specific intervals along the length of the rails. A continuous wood nailer covered by a removable counterflashing provides for an effective method of attaching roof felts and assuring a watertight installation. Replaces inadequate railroad ties, costly pipe stubs and leaky pitch pockets.

SPECIFICATIONS

Furnish and install RPS Equipment Rails as manufactured by Roof Products & Systems Corporation. Prefabricated equipment rails shall be manufactured from 18 or 14 gauge galvanized steel as required. Equipment rails shall have internal reinforcement with an integral base plate, fully mitred and welded corners, a 3" cant (except style ER-2A) and a factory installed wood nailer (specify 2x4, 6, 8, 10 or 12). Height to be 8" above finished roof or as detailed.

Equipment rails shall span a minimum of two joists and not cantilever more than 6". Equipment rails shall be level at the top with pitch built-in when deck slopes 1/4" per foot or greater, or as detailed.

Prefabricated Equipment Rails shall be Model ER-__ manufactured by Roof Products and Systems Corp., Bensenville, IL. Contractor fabricated Equipment Rails will not be accepted.

*Series ER-4A&B Equipment Rails shall include an "R" (raised cant) dimension to match the thickness of the deck insulation of the roof.
