Laminated Foam Metal Wall Panel Systems
FM-100, FM200, FM210, & FM220 Laminated Foam Wall Panel Systems
Offering comparable flatness to the honeycomb panel systems, Protean's
complete line of laminated foam panels offer the added advantage of being
insulated. Laminated in vacuum presses, our foam panels use only pre-cured
rigid insulation boards. This technology eliminates the gas blistering
often common to foamed in place panels. Additionally, the superior flatness
of laminate foam panels means we can offer smooth textured (non-embossed)
panels at no additional premium.
Gone too, are the limitations of 24" and 30" standard modules. Variable
widths up to 54" are standard and as many different sizes as the project
requires are available at the same competitive price as other manufactures
standard modules.

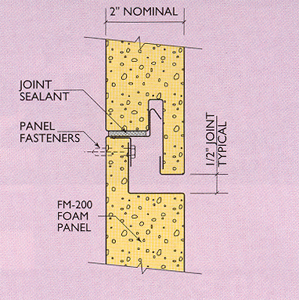

Protean's FM-200 system offers the same "caulkless" design as it's
HC-200 honeycomb counterpart. Typically manufactured at 2" thick, the system
offers an "R" value of 7 with a polyisocyanurate urethane core and an "R"
value of 5 with an expanded polystyrene core.

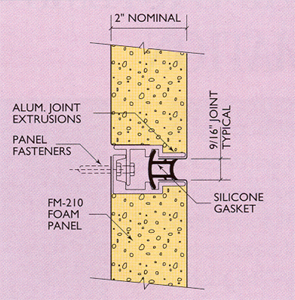

When design limitations restrict the use of Protean's exclusive "caulkless"
systems, the FM-210 panel system offers an excellent alternative. This
system takes advantage of extruded silicone gaskets, eliminating the need
for field installed caulk joints. Standard gaskets are available in black,
with custom colors available upon request.
Protean's FM-100 system offers similar advantages to our HC-100 panel
systems. This system offers an excellent means of obtaining custom, insulated
spandrel panels. Typically fabricated at a thickness of 1", the product
is available up to a thickness of 6", offering a maximum "R" value of 42.
Consult Protean's standard details for a variety of possible design applications.
In addition to our custom architectural wall panel systems, Protean
offers a complete line of Sunscreens. Often designed to compliment our
metal panel systems, Protean Sunscreens are also used as an accent to other
building components.
|
|
|
|
|
|
22 Gage
G90 Galvanized Steel |
Aluminum, Stainless Steel, (Various
Gages) |
|
Materials |
Polyisocyanurate
Urethane Foam |
Expanded or Extruded Polystyrene |
|
|
Smooth | Embossed |
|
|
KYNAR 500™/Hylar 5000™ | Multicoat systems, Metallics, Exotics,
Anodized and Natural Metal |
