Specify the 300 Series lockers for the highest customer satisfaction from the no-assembly ready-to-use delivery through years of trouble free operation. Architects, designers and government agencies specify 300 Series due to high quality unitized manufacturing which means virtually no installation costs!

• NEW design, one piece FRP Composite bike locker – NO ASSEMBLY required
• The 300 series is the first one piece locker available not molded of soft and flammable HDPE plastic
• Stackable – Double your capacity in half the space, contact for more information
• All lockers are shipped assembled, can be stand alone or grouped – NO COMMON WALLS, easily relocated
• The construction of fiberglass reinforced plastic is highly resistant to impact, stains and will not corrode
• High security with standard key locks flush in door face and internal locking bar system
• For those wanting more storage or room for 2-3 bikes in one locker we offer the Model #301W, same width as our two door versions but has door on one end only
• Ride a recumbent or need more room for storage than our #301W Locker, then our MODEL #301WL is the answer, at 40" wide and 102" long it is the biggest bike locker available

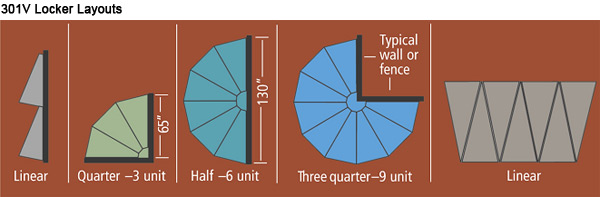

• Park bikes vertical in a unique wedge shaped locker requiring less space, Model #301V

Locker shall be manufactured of molded fiberglass reinforced plastic composite with a solid color stipple texture finish. Material shall be E-glass and polyester resin at 35% ratio.

Tensile Strength, 18,000 psi. Locker shall be one piece with no external or internal frame and no seams or joints on tops or side walls. Material shall withstand over 300 lb/sqft on roof and 200 lb/sqft on walls/doors.

No on site assembly shall be required.

Roof shall be crowned for water run off and all corners shall have smooth radiused finish. Finish of UV stabilized gel coat does not need painting, allows solvent removal of graffiti and is resistant to impact of U.V. damage.

Two standard colors, Tan & Medium Gray.

Custom colors matched to your sample.

Interior divider wall on model 302 shall be sealed OSB exterior board and bottom edge shall be a minimum of 1" above ground level.

Pop Out "T" handle 7 pin tumbler locks with three keys and removable lock cylinders.

Internal locking hardware consists of three plated hardened steel cams controlling an extruded aluminum locking bar which engages the door frame over three foot span. High quality custom continuous door hinge will not rust. All fasteners on locking system shall be zinc plated or better.

Locker shall anchor in all four corners through base flanges using expansion anchors.

Optional Features

• Fiberglass composite floors are ideal for storage lockers or if lockers cannot be anchored
• Electronic locking systems
• Heavy duty stainless steel pad lock handle will accommodate high security pad locks
• Coin and Token operated locks for collection or money return
• Abloy^® stainless steel locks with T-Handles
• Ventilation System, stainless steel vents on doors for dissipation of heat and dampness
• Safety-View^™ windows and walls to check contents of lockers. Acrylic or perforated steel

Standard Options & Accessories

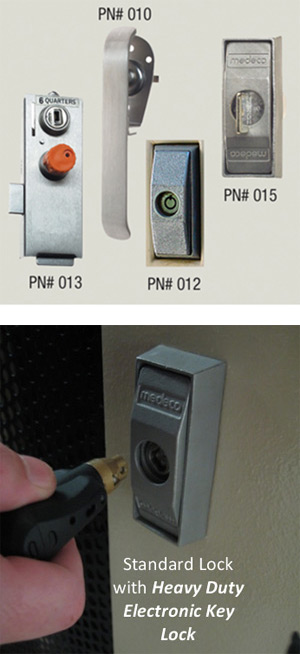

PN# 010 – Heavy Duty pad lock system will accommodate high security pad locks (padlocks not included).

PN# 012 – Master keyed "T" handle locks with three user keys and removable lock cylinders.

PN# 013 – Coin or Token operated locks for collection or return.

PN# 015 – Abloy^® Stainless Steel high security T-Handle lock.

PN# 019 – Electronic Locking Systems – Control access by choice of electronic locking systems.

PN# 020 – Locker Numbers: Numbers are 1 1/2" in height. Each order starts with 1 unless specified otherwise. Engraved numbered labels are fastened to doors.

PN# 030 – Ventilation Systems: includes louvered vents one per door. Highly recommended for areas of high temperature, humidity or dampness for cross ventilation.

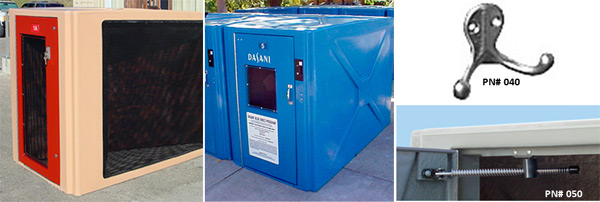

PN# 040 – Gear Hooks, 2 per locker. Hang up your helmet, riding accessories or clothes for the next work day.

PN# 050 – Door hold back/check system This attachment will keep door open when parking or removing bike and also will keep door closed. Recommended for lockers with padlock and coin-operated locks. Keeps doors from swinging open with wind or closing if lockers are on a slope.

With the growing concern about security at Transit Center and Rail Stations you don't need to also worry about what is in your bike lockers!

• The Safety-View^™ window and walls from American Bicycle Security Co. allow transit police to see what is in the locker at a glance while not compromising the security of the bike inside
• Safety-View^™ window and walls in acrylic or 16 gauge perforated steel, powder coated black for maximum visibility, perforation hole size was chosen to allow maximum visibility without room for cutting tools. (Other special order materials for window can be specified, i.e.: stainless steel)
• Safety-View^™ window size provides complete view with minimal weather exposure on the bike

PN# 073 – Window in locker door 12" × 12" specify acrylic or perforated steel powder coated.

PN# 074 – Window in locker door 16" × 36" specify acrylic or perforated steel powder coated.

PN# 080 – Outside walls on models 302, 301, 301P, 301W, & 301V lockers. Includes both outside walls. Walls are perforated steel with choice of 2 materials with viewing opening of 40 1/2"H × 53"L.

PN# 081 – Interior Diagonal Walls for model 302 lockers. When combined with outside walls allows viewing through a group of lockers. Walls are perforated steel with choice of 2 materials with viewing opening of 40 1/2"H × 53"L.

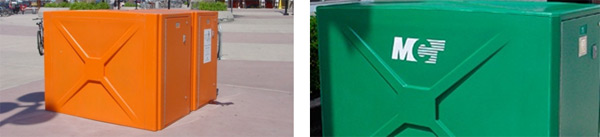

Stand Out – Be Recognized – Graphics & Custom Colors

• Immediate recognition & awareness with your logo in view of the public or your employees
• Logo becomes part of the locker finish in manufacturing, not a painted-on after thought
• With the same high quality gel coat with UV inhibitors used in the finish of the lockers your logo can't be peeled or scrapped off by vandals
• Many single color logos can be done at no additional cost with your locker order
• Send the color and logo on a CD, diskette or print for scanning and we will take it from there

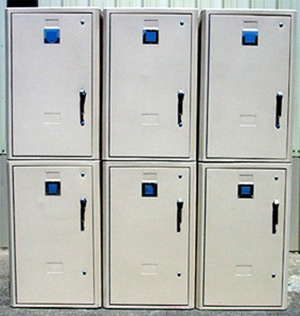

Stacking/Two Tier Lockers

This feature allows you to stack the lockers providing twice the parking in the same foot print as on unit. The upper level lockers are specially built for this application with the locks located lower on door for easy access.

PN# 301-U – Upper unit for model# 301 bike lockers

PN# 301P-U – Upper unit for model# 301P bike lockers

PN# 302-U – Upper unit for model# 302 bike lockers

For the 300 series, molded fiberglass composite lockers. Recommended if locker is used for storage or cannot be anchored to ground.

PN# 067 – 301P lockers floor- fiberglass composite-installed at factory

PN# 068 – 301 lockers floor- fiberglass composite-installed at factory

PN# 069 – 302 lockers floor- fiberglass composite-installed at factory

Hardware Upgrade

For the 300 series lockers. This upgrade changes out hardware to equal that on the 350 series of lockers

PN# 101 – #301, 301P, 301W & 301WL Upgrade-Adjustable anchor brackets w/ stainless steel 3/8" anchors, stainless steel hinge, vents on doors, number plates, gear hooks

PN# 102 – #301, 301P, 301W & 301WL Upgrade-Abloy stainless steel high security locks with wide sliding locking bar system and stainless steel fasteners on locking system, adjustable anchor brackets w/ stainless steel 3/8" anchors, stainless steel hinge, vents on doors, number plates, gear hooks

PN# 103 – #302 & 301V Upgrade-Adjustable anchor brackets w/ stainless steel 3/8" anchors, stainless steel hinge, vents on doors, number plates, gear hooks

PN# 105 – #302 & 301V Upgrade-Abloy stainless steel high security locks with wide sliding locking bar system and stainless steel fasteners on locking system, adjustable anchor brackets w/ stainless steel 3/8" anchors, stainless steel hinge, vents on doors, number plates, gear hooks

For the center area of "P" & "V" style lockers. Recommended if lockers are grouped and placed against a wall to prevent collection of trash or prevent person from climbing into circular area at back of lockers.

PN# 061 – Cover for full circle center of "P" & "V" model lockers. Finish color to match lockers.

PN# 062 – Cover for half circle center of "P" & "V" model lockers. Finish color to match lockers.

PN# 063 – Cover for quarter circle center of "P" & "V" model lockers. Finish color to match lockers.
