BR and BR Plus Bicycle Racks

The Huntco BR Series bike racks are still the #1 racks in America. Their strength and smooth, graceful lines are often imitated, but never duplicated by other manufacturers. They provide maximum security and are maintenance-free. All models easily accommodate the high security U-shaped locks preferred by bicyclists.

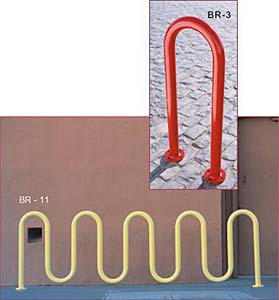

The BR Bicycle Rack
Each unit is constructed of 2-3/8"(6.0 cm) O.D. 2"(5.0 cm) I.D. x 0.154"(.39 cm) wall ASTM A53 schedule 40 steel pipe. Available in four finishes: Hot Dipped Galvanized, Powder Coated (10 standard colors), Stainless Steel, and Thermoplastic coating. The model numbers indicate the number of bikes that each rack holds. All BR Series racks are 36"(91.4 cm) or an optional 42"(106.7 cm) high.

The BR Plus Bicycle Rack
The Huntco BR Plus Racks are simple, elegant and supremely durable. Available in generous 18" center to center loops, this "Big Brother" to the BR Rack provides easier bike placement and removal. Like the BR Series, each unit is constructed of 2-3/8"(6.0 cm) O.D. 2"(5.0 cm) I.D. x 0.154"(.39 cm) wall ASTM A53 schedule 40 steel pipe. Available in four finishes. The model numbers indicate the number of bikes that each rack holds. All BR Plus racks are a standard 36"(91.4 cm) or an optional 42"(106.7 cm) high.

BR Specifications
The bicycle parking rack shall be the BR-__-__-__ (insert Bike Capacity, Finish and Installation Option). BR __ bike capacity parking rack as manufactured by Huntco Supply, LLC. Rack shall be a minimum of 36" or 42" high to provide proper clearance for parked bicycles. Galvanized, Powder Coated and Thermoplastic coated versions: Rack shall be constructed of ASTM A53 2" schedule 40 steel pipe (2-3/8" O.D. x .154 wall). Stainless Steel version: Rack shall be constructed of ASTM A312 2" schedule 40 TP 304 stainless steel (2-3/8" O.D. x .154 wall).

BR Plus Specifications
The bicycle parking rack shall be the BRP-__-__-__ (insert Bike Capacity, Finish and Installation Option). BRP__ bike capacity parking rack as manufactured by Huntco Supply, LLC. Rack shall be a minimum of 36" or 42" high to provide proper clearance for parked bicycles. Rack shall be constructed of ASTM A53 2" schedule 40 steel pipe (2-3/8" O.D. x .154 wall). Stainless Steel version: Rack shall be constructed of ASTM A312 2" schedule 40 TP 304 stainless steel (2-3/8" O.D. x .154 wall).

FINISHES
The HOT-DIPPED GALVANIZED finish is suitable for more utilitarian bike rack placement. In the galvanizing process, it is very important that the metal surface be perfectly clean in order for the zinc to adhere to the metal. Each bike rack is caustic cleaned to remove organic contaminants and sandblasted to remove other surface contaminants. A dilute acid solution removes rust and a fluxing procedure removes oxides. Only then is the bike rack immersed in 98% pure molten zinc and allowed to dry in ambient air. The rack is then hand-filed to remove any galvanizing flash. The result is a Huntco bike rack that is virtually abrasion-resistant.

Our POWDER COAT FINISH resists chipping, rusting and fading. It is hard and tough enough to withstand the most extreme weather and heaviest usage conditions.

We closely monitor each step of the powder coating process to ensure that Huntco’s high standard of quality is evident in every finished bike rack.
In order for the powder coating to adhere to the metal, the steel must be free of any scale, paint, varnish or rust. This substrate preparation includes a chemical wash and rinse. The bike rack is then pre-baked to eliminate any liquid residue. This is followed by an iron phosphate rust inhibitor treatment that also primes the surface.

A polyester coating, triglycidyl isocyanurate (TGIC) powder is then baked onto the prepared bench to a thickness of 6 to 8 mils.

Huntco’s standard POWDER COAT COLORS are Postal Blue (RAL 5022), Sky Blue (RAL 5010), Forest Green (RAL 6005), Yellow (RAL 1018), Bright Red (RAL 3001), Maroon (RAL 3007), Gloss Black (RAL 9004), Sky White (RAL 9001), Tan (RAL 8001), and Bronze (RAL 8014). Custom colors are readily available.

Huntco’s state-of-the-art THERMOPLASTIC COATING is one step beyond our Powder Coating. It is designed for maximum mechanical performance, unparalleled impact resistance and UV-stability. Because it is thicker than powder coating, it is the most “bike friendly” finish on the market. Our thermoplastic coating is a functionalized polyethylene copolymer-based powder, Polyarmor® G17 by Innotek®. It is environmentally safe, containing no PVCs, phthalates or chlorine components that can emit VOCs.

This superior thermoplastic coating comes in 10 standard colors: Black, Dark Gray, Light Gray, Royal Blue, Sky Blue, Red, Yellow, White, Dark Brown and Hunter Green.

STAINLESS STEEL bike racks by Huntco are, by far, the most elegant bike racks available. Our #4 Satin Finish makes them impervious to any weather conditions and striking in their appearance. These stainless steel racks set the standard for all others to follow.

The combination of the finest materials and our insistence on using the best and most technologically advanced application procedures makes Huntco finishes superior to any others. It’s what our customers have come to expect and it’s what we will continue to provide.

INSTALLATION
There are two methods of installing Huntco Bicycle Racks:
Flange Mounting (FL) and In-Ground Mounting (IG)

Flange and In-Ground Base Covers
A great Huntco option these covers can be used on any flange-mounted or in-ground installed rack. They give a perfect "finishing touch" to the rack and, when tack-welded in place over flanges, make it impossible to steal the rack and/or bikes. Please see the attached CAD installation drawings.

Call Huntco toll free at 1-800-547-5909 for more product information.
We welcome custom orders on all of our fine products.
If you think it can't be built, call us... we'll prove otherwise!
Everything we make is covered by the famous Huntco Warranty.
