PROSHIELD® DOUBLE-HUNG TILT WINDOWS

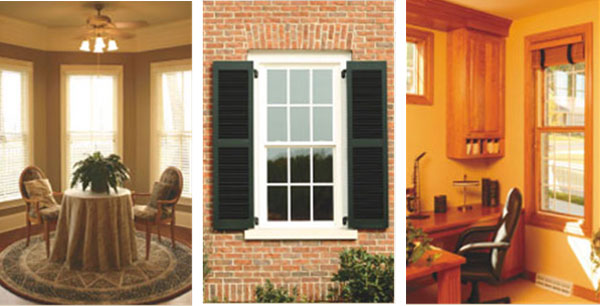

The ProShield line of Double-Hung Tilt windows combines low-maintenance vinyl-clad exteriors with warm wood interiors. Both sash open and close by easily sliding up or down. The convenient tilt-in design makes the windows ideal for use on upper floors where you can easily clean the exterior glass surface from inside the home.


Custom Wood Interiors Collection®

Window interiors are available pre-finished in White to save you valuable time and effort after installation. Natural Pine, Ash or Maple interiors complement floors and furniture.


Precision-tuned block and tackle balance systems are concealed in vinyl jamb liners and are counterbalanced to effortlessly hold the sash open in any position.


ProShield tilt windows feature full vinyl bulb weather stripping at the bottom sash bottom rail, the top sash top rail and sill. The checkrail features full vinyl bulb and pile weather stripping with a Mylar fin.


The sash design features beveled sides, a classic-styled beveled face and no exposed fasteners. Low-profile, surface-mounted sash locks provide an uncluttered appearance and elegantly proportioned check rails add classic looks and eliminate the need for lift handles or finger routs.

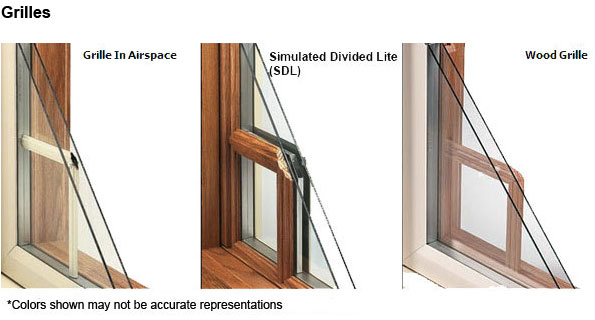

Complement the style of your home or add your own distinctive look with optional Simulated Divided Lite (SDL), aluminum airspace or snap-in wood perimeter grilles featuring a "frame" design using concealed pins to snap them securely in place for superior strength compared to stick grilles found on other window brands.


Accentials Distinctive Colors & Finishes

Low-maintenance vinyl-clad exteriors feature uPVC vinyl extrusions with high-impact modified stabilizers that offer strength and durability over regular vinyl. White, Cameo and Tan extrusion colors are specially formulated for consistency throughout the extrusion that helps make nicks and scratches that may occur over time less visible to the eye.


Fusion-welded exterior frame and sash corners provide improved strength, structural stability and better resistance to water and air infiltration. Mitered corners offer a more sophisticated look than vinyl window exteriors that feature square-offs and corner cuts.


Built-in accessory channels on the exterior allow you to conveniently apply ProShield's snap-in exterior finishing accessories such as mull covers, J-channel and brick mould with integral J-channel.


The multi-chambered frame and sash improves structural integrity and thermal performance by minimizing expansion and contraction due to seasonal changes or differences in outside and inside temperatures.

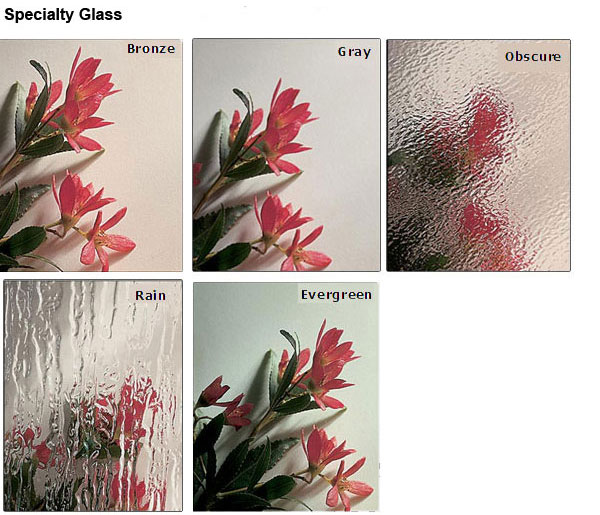

Standard double-strength glass offers improved structural integrity. Glazing options include Insul Low E2 with Argon/Krypton gases, Insul Low E2 with Argon gas, Insul Low E2 or Insul. Specialty glass options include Tempered, Gray, Bronze and Obscure.
