High quality, dependable components ensure east of operation and durability.
Easy grip and quality appearance.
Resistant to yellowing from sunlight exposure. Snap-on design guarantees easy
installation.
Brackets are hidden when blind is installed, providing a clean finished look.

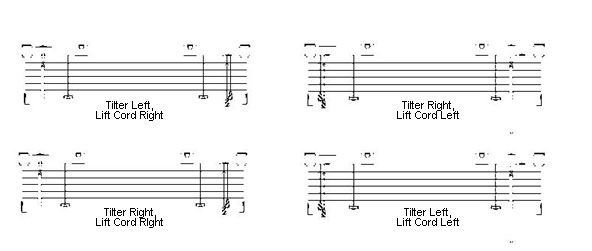

Choice of control positions is available. Tilter left, lift cord right is the
standard position. You can choose to reverse the standard position or group
the controls on one side.
Refers to patented technology that allows for easy operation of the blind without
using cords to raise and lower; child and pent safe; motor mechanism and
cord take up are centered in the headrail and are one piece for dependability.
Safety feature that holds the blind securely at any level and prevents the
blind from crashing to the sill while raising or lowering.
Allows access to air conditioners, window cranks, etc. Center and side cutouts
are available. A diagram is required.
DustGuard is an exclusive paint process that reduces dust build-up on blinds
by over 50%. By "disrupting" the static on the blind's aluminum
surface, DustGuard actually resists airborne dust particles. DustGuard is
totally safe and permanent. Since it is an integral part of the surface,
it lasts for the life of the blind.
A color coordinated vinyl cushion covering the entire width of the blind protects
the window sill from scratches and chips.
(Must be requested
at time of order.)
For installations requiring additional space between the blind and the mounting
surface. Not available with hold-down brackets.
Provides tighter closure and disengages when over-rotated to safeguard against
breakage while providing smooth operation and better quality.
Manufactured of "hardened steel," guaranteed not to rust or corrode.
(Must be requested
at time of order.)
Hold-down brackets prevent blinds from swaying. They can be sill mounted, face
mounted or mounted inside the frame. Recommended for doors and in windows subject
to wind exposure. Not available with extension brackets.
Sculpted design reduces light leakage and creates a uniform and tailored appearance.
Eliminates the need for an additional valance.
Pull-cord holes are positioned near the back of the slat to provide more light
control.
Striping allows you to add more color to the room decor as well as match geometric
designs on walls. Identify color positions of slats with a sketch. Also, specify
the color of components (consider "white" for ladder and cord for
uniform appearance).

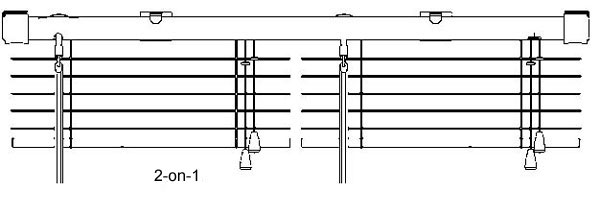

Specialty blind allowing the customer to operate 2 or 3 independent shades
on one headrail. Provides the flexibility of raising one blind while keeping
the other lowered on extra wide windows, such as patio doors. Standard spacing
is ½" between blinds.

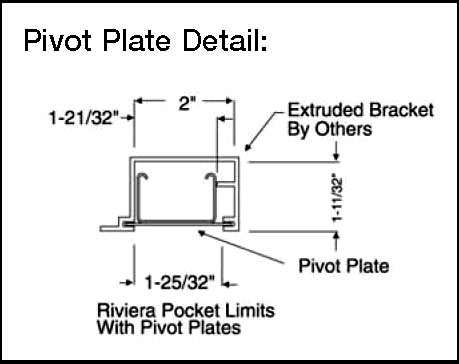

Levolor pivot plates are specifically designed to be used with extruded aluminum
mullion with pockets. Pivot plates eliminate the need to drill and screw
into the aluminum mullion. Shown here is a typical mullion incorporating
a slot on either side for the pivot plate. The headrail of the blind is installed
into the recessed mullion cavity. Then, the plate is turned into place with
a screwdriver. Pivot plates are custom sized based on customer mullion dimensions.
A typical pocket installation may require Levolor pocket brackets. The standard
pocket bracket can be installed in two steps: the upper section is first secured
in the top of the pocket; then, the flanges on the lower section are snapped
over those on the upper section. This secures the headrail in place. The top
of the pocket must be sturdy enough to support the weight of the blind and the
pull forces applied to it.

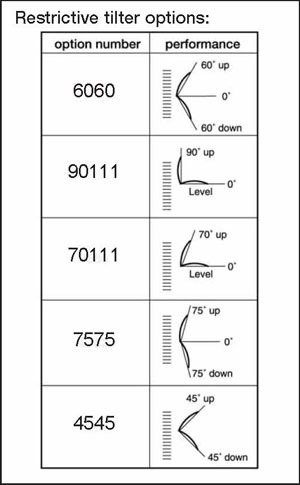

The Restrictive Tilter limits the range of angles the slat will tilt, ensures
adequate window ventilation and reduces heat build-up. Maintains a uniform building
exterior when using tiltone colors. See chart at right for available options.
Not available with LightMaster™.
SheerView provides the ability to see through a closed blind and delivers up
to a 42% reduction in solar heat as compared to a fully opened blind. SheerView
is available in 5 colors, 6% openness. SheerView cannot be ordered with LightMaster™ option.
Standard valances are a simple and economical way to cover the headrail and
brackets. Two slats are attached onto the headrail with plastic clips.
Tiltone blinds allow you to bring one color to the interior of your room while
providing a uniform, neutral appearance on the exterior of your home. Plus,
Tiltone offers additional energy savings. Indicate which side of the slat
and ladder is to be dover by marking the appropriate box on the order form.
Unless otherwise specified, factory will place neutral white of ladder towards
window side of blind and will match color of headrail and bottomrail to decor
color on slat.
Top-Lok hold the blind in a completely raised or lowered position, thus
ensuring a uniform building exterior. Also, when the blinds are fully raised
there is no cord accumulation on the floor. Optional ring pulls are recommended
when ordering To-Lock Cord Lock. Ring pulls hang 3" (+-0.5") below
the headrail and are an additional charge. Top-Lok is especially useful for installation
where the headrail is equal to or greater than eight feet from the floor. Top-Lok
is keeps unauthorized personnel from raising or lowering blinds. Authorized personnel
may adjust the blinds by hooking an ordinary window pole onto the ring at the
end of the lift cord (pole not included).
Innovative valance provides a sleek, finished look for the window. Two slat valance
for the Riviera® ½" blinds and one slat valance for Riviera® 2"
blinds. The Vogue Round Wrap Valance is available in Riviera 1" models and Riviera
2".

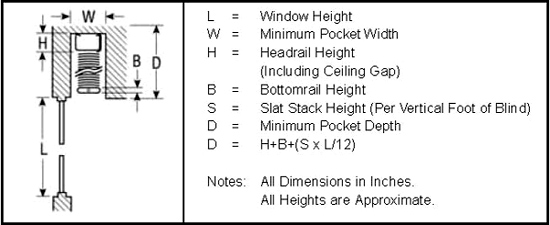

Horizontal Blinds Pocket and Stacking Dimensions
| Blind Type | H | B | S | W | | Riviera ½ | 1.875" | .406" | .625" | 3.5" | | Riviera Classic 1" | 1.875" | .406" | .5 | 3.5" | | Riviera 2" Braded Ladder | 3" | .563" | .375" | 4" | | Riviera 2" Plastic Tape | 3" | .563" | .625" | 4" | | Monaco® 6 1" | 1.875" | .406" | .5" | 3.5" | | Wood Blind 2" | 3" | .625" | 1.25" | 4" |
|
