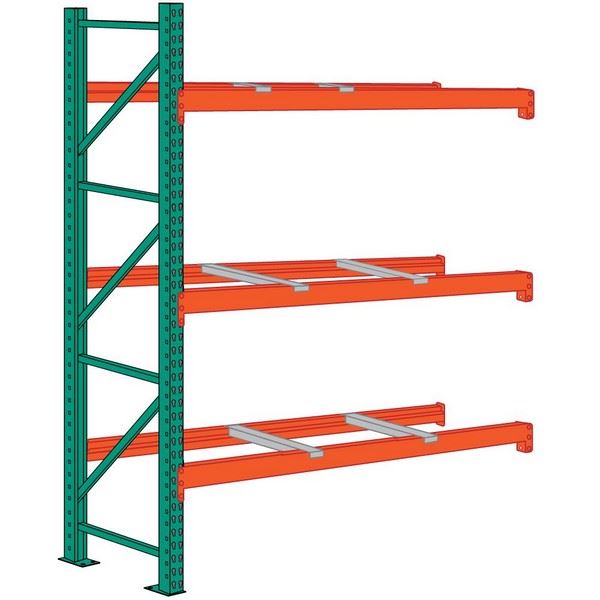

3 Level 96″w x 48″d x 144″h Pallet Racking with Front-to-Back Supports Add-On

Product Details

Make the most of your vertical height with Lyon’s 3-level AFB096048144 pallet racking add-on with front-to-back supports. These adjustable heavy-duty pallet racks feature a teardrop design that is interchangeable with all major teardrop style pallet racking. This 12-foot-tall pallet rack is an ideal solution for most warehouses. Lyon’s pallet rack fits with most other teardrop design industrial racking systems. That means you can upgrade any damaged, weak, or worn out uprights and beams. There won’t be a need to change your whole system. Our pallet racks include a strong and smooth paint finish. This state-of-the-art powder coat application process ensures a finish that is impact as well as corrosion resistant.

Welded Upright

Our AFB096048144 pallet racking add-on includes one fully welded upright made of 14-gauge steel. This upright comes fully assembled and ready to install. These teardrop pallet rack systems feature heavy-duty bracing as well as base plates for added stability. The tapered keyhole slots provide quick, easy vertical adjustment of beams to create optimal pallet storage solutions. These roll formed uprights provide greater strength while the small sized slots mean more steel per upright. There are also no “dead spots” in the upright posts to disrupt your placement of beams along the entire height of the post.

Each pair of pallet rack uprights can hold up to 20,600 lbs. This load capacity is based on beams with 48-inch spacing. Beams with a greater spacing can reduce the overall capacity of the uprights. Our uprights are available in a Lake Green powder coat paint finish. This paint finish will help protect these industrial racking systems from everyday use.

Durable Steel Beams

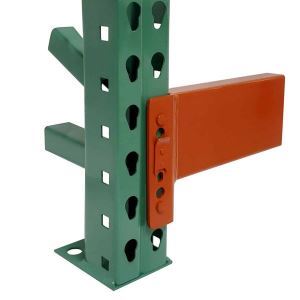

The AFB096048144 pallet racking add-on includes six beams to create three levels. Lyon makes the medium-duty beams of 14-gauge steel. An enhanced automatic lock assembly also provides positive beam-to-upright engagement. This automatic lock improves installation speed and safety. Each end of the beam has three studs to engage the teardrop holes of the upright. Easily adjust the beams on 2-inch vertical centers. Since the beams install without tools it’s easy to adjust your level spacing when your storage needs change. Each pair of 96-inch-wide medium-duty beams can hold up to 5,200 lbs. All capacities of metal storage racks are also based on evenly distributed loads on a pair of beams. Pallet rack beams are available in our Safety Orange powder coat paint finish.

Front-to-Back Supports

This AFB096048144 pallet racking system also includes two front-to-back supports with each level. The supports install easily onto the beams without tools. These supports also help reduce the chance of misplaced pallets from falling through the beams. The supports will help minimize beam rotation while supporting heavy loads. This will maintain both the rigidity and stability of the pallet storage racks. The galvanized steel of the supports helps them stand up to harsh warehouse environments.

Assembly and Installation

The 3-level AFB096048144 pallet racking add-on ships unassembled. These heavy-duty metal storage rack sections assemble easily without tools.

• Supports up to 5,200 lbs per level
• 3 levels are adjustable on 2″ vertical centers
• Made in the USA

Product Specifications

Number Of Levels : 3 Levels with Front-to-Back Supports

Capacity : 5,200 lbs Per Level

Starter Or Add On : Add-on

Includes : Upright 48"d x 144"h - 9748M144 (x1)
Adjustable Beam 96"w - SON96 (x6)
Front-to-Back Support 48"d - GVFBSUP48 (x6)
