Overview

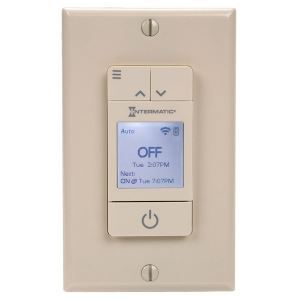

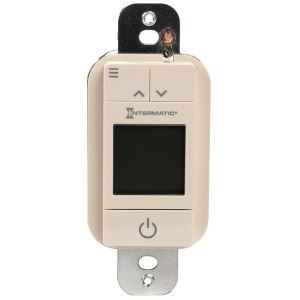

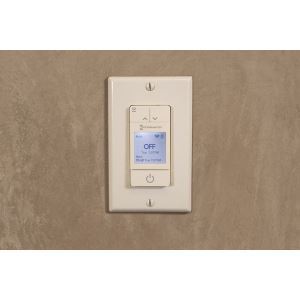

Model #STW700LA, Ascend® Smart 7-Day Programmable Wi-Fi Timer, 120 VAC, 15A, Light Almond

Next generation timers with sleek, modern design and intuitive programming. Works with Amazon Alexa and Google Assistant; no hub required. Neutral required. Easily schedule lights and connected loads to turn on/off at specific times or based on sunrise/sunset. NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features

  • Single-pole or 3-way switches
  • Ability to text/email saved schedules
  • 7-Day Timer with Automatic Daylight Saving and Astronomic ON/OFF at Dusk or Dawn
  • Sleek, Modern Design

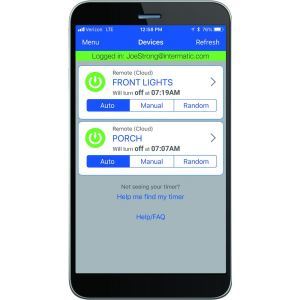

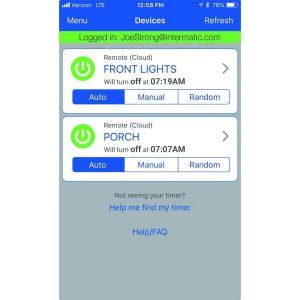

  • Remote Access from anywhere, no hub required
  • Wi-Fi not needed for initial setup and scheduling

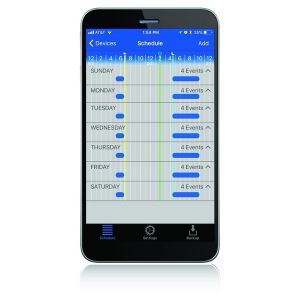

  • Fully set and schedule at the timer or via the Ascend app
  • Automatic Astronomic ON/OFF dusk and dawn times to provide the most accurate lighting schedule possible
  • Automatic Daylight Saving Time (DST) Adjustment

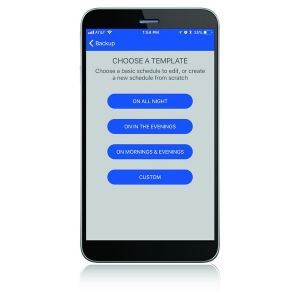

  • Three pre-programmed schedule templates for convenience

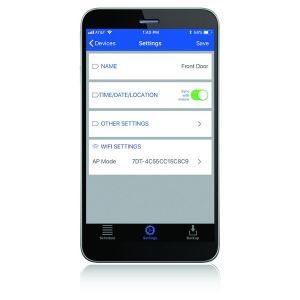

  • Supporting mobile app available on Apple app store and on Google play store

Applications

  • Air Movement & Ventilation

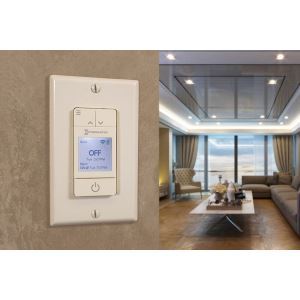

  • Indoor Lighting Control
  • Outdoor Lighting Control


See More


Specifications

SPECIFICATIONS
Backup TypeBattery
ColorLight Almond
Input Voltage Range(s)120 VAC, 50/60 Hz
Maximum ON/OFF Operations42
Mechanism TypeDigital/Electrical
Operation Mode24 hour
Wiring Configurations3-Way
Minimum ON/OFF Times1 min
Operation FeaturesAstronomic
Wall Plate ConfigurationsSingle-Gang
Neutral Connection RequiredYes
Warranty Period3-Year limited
Application CompatibilitiesCFL
Battery Service TypeNon-replaceable
Battery TypeCR2032
California Proposition 65DEHP
CAProp65MessagePlease see the Warning @ www.P65Warnings.ca.gov
Country Of OriginThailand
Electronic Ballast LED5 A, 600 W
EPi CertificationscULus
General Purpose15 A
Has WiFiYes
Incandescent Load Ratings (Multi-Gang)8 A, 120 VAC, 50 Hz; 8 A, 120 VAC, 60 Hz
Incandescent Multi Gang Load Ratings Ranges8 A, 120 VAC, 50/60 Hz
Inductive15 A, 120 VAC, 50 Hz; 15 A, 120 VAC, 60 Hz
Inductive Load Ratings Ranges15 A, 120 VAC, 50/60 Hz
Motor (Three-Phase)1 HP, 120 VAC, 50 Hz
Motor Three Phase Ranges1 HP, 120 VAC, 50/60 Hz
Other Certifications and CompatibilitiesTitle 20
RoHS CertificationYes
Tungsten (NO)8 A
UL CertificationcULus
promoPageLinkFR/Ascend
unitCartonLengthInch2.5
promoPageLinkES/Ascend
unitCartonWidthInch3
operatingTemperatureMaxFahrenheit122
unitCartonHeightInch4.88
promoMessageESAPRENDE MÁS
operatingTemperatureMinCelsius-20
productDepthInch1 1/3
unitCartonWeightLbs0.45
productWidthInch1 3/4
productHeightInch2 3/4
promoColorBlue Background Button
productHeightMm69.9
productDepthMm33.9
operatingTemperatureMaxCelsius50
promoPageLinkEN/Ascend
promoMessageFRAPPRENDRE ENCORE PLUS
productWidthMm44.4
promoMessageENLEARN MORE
operatingTemperatureMinFahrenheit-4
