Elkay® -ezH2O® Retrofit BFS for SwirlFlo® Fountain Filtered Refrigerated Stainless-LZWS-ERPB8-RF

DOWNLOADS

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Designed to retrofit existing bi-level refrigerated SwirlFlo fountains.


Category: ADA-compliant drinking water dispensers | accessible products | chilled water dispenser...

MasterFormat: Plumbing Fixtures | Drinking Fountains and Water Coolers | Drinking Fountains



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

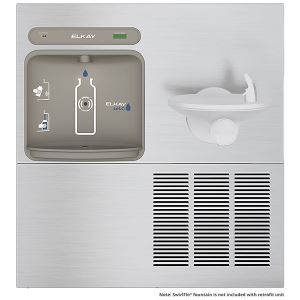

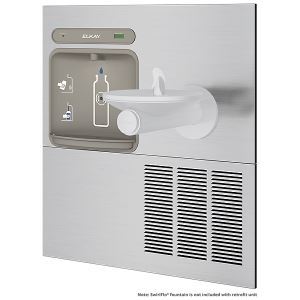

ezH2O® Retrofit BFS for SwirlFlo® Fountain Filtered Refrigerated Stainless-LZWS-ERPB8-RF

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Designed to retrofit existing bi-level refrigerated SwirlFlo fountains. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Features

  • Touchless, sensor activation (bottle filler) designed to retrofit with an existing refrigerated push-button fountain
  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst
  • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water
  • Visual filter monitor with LED filter status indicator for when filter change is necessary
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
  • Ships with new top panel, frame and integral ezH2O® station
  • Touchless, sensor-activated bottle filler designed for easy use; easy-to-operate push-bar-activated bubbler
  • Bottle filler meets ADA guidelines for reach range; fountain meets ADA guidelines for wheelchair access


See More


Specifications

Specifications
Material

Stainless Steel

Number of Stations

2

Features

Antimicrobial
Filtered
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Visual Filter Monitor

Power

115V/60Hz

Dimensions

L: 38-1/2"
W: 19"
H: 40-13/16"

Bubbler Style

Flexi-Guard ® Safety Bubbler

Mounting Type

Wall Mount (In-Wall Frame/Plate)

Chilling Capacity

8.0 GPH

Installation Location

Indoor

Shipping Dimensions

L: 46-1/4"
W: 15-3/4"
H: 28"

Shipping Weight

50 LBS

Included With Product

Integral Bottle Filling Station
Filter
Panels
Mounting Frame

ADA

Yes

Filtered

Yes

Code Compliance

CSA C22.2 No. 120
NSF 42
NSF 53
NSF 401
UL 399
NSF 61
NSF 372

Note

Utilizes existing single fountain, right mounting frame and water chiller.
