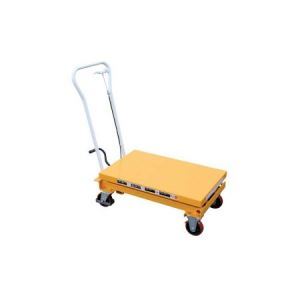

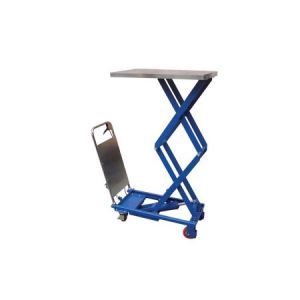

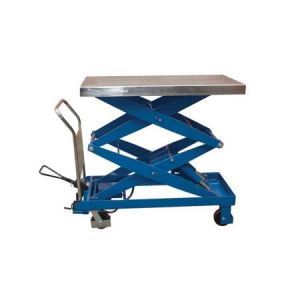

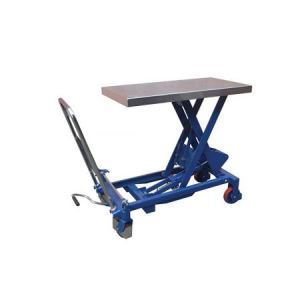

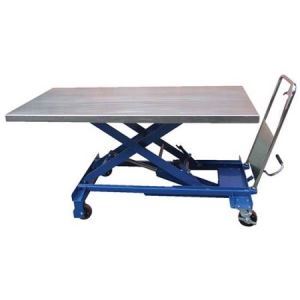

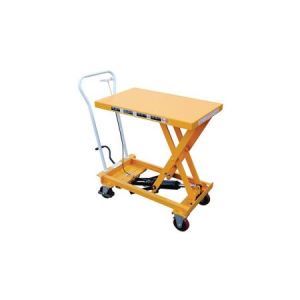

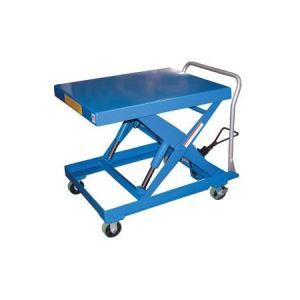

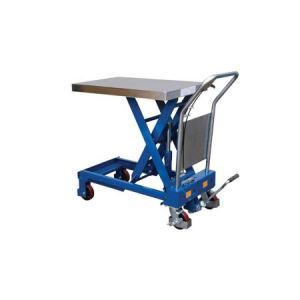

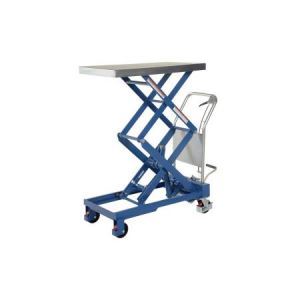

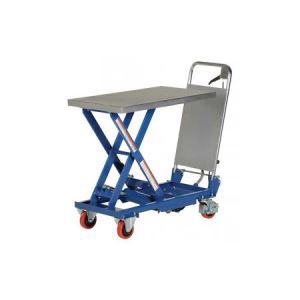

Hydraulic Lift Cart - Beacon® BCART Series

The traveling Hydraulic Lift Cart is designed to minimize worker bending and lifting. Material can be easily loaded onto the Powered Scissor Lift unit from a table, lowered to a safe transporting height, and then raised to unload when the cart reaches its destination.

Product Details

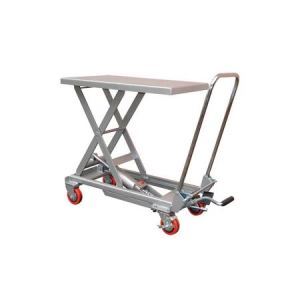

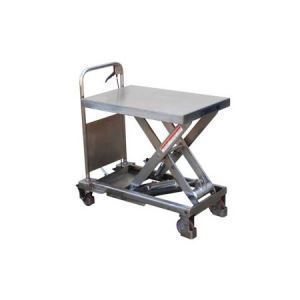

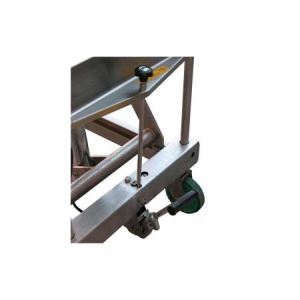

• Models: On the BCART-550-SS and -1100-SS, the pump assembly, foot pump pedal and hydraulic cylinder are chrome-plated and the rest is stainless steel. On the BCART-200-ALUM, the pump assembly is painted, the handle chrome-plated and the wheels poly-on-plastic.
• Construction: These units feature aluminum, stainless steel, or steel construction. The scissor legs, wheel guards, and pump assembly are constructed of carbon steel.
• Size: Models are available in a wide variety of sizes ranging from 17-1/2" wide x 27-1/2" long to 32" wide x 40" long.
• Service Range: Models feature a service range ranging from 8-1/2" to 29" up to 25-1/2" to 50-3/4".
• Color: Models feature a steel, aluminum, or Beacon Blue finish.
• Weight: Models weigh from 140 to 595 lbs.
• Note: Discounts are available on orders of two or more units. Call Beacon today for details.
• Capacity: This series features capacities ranging from 220 to 4,000 lbs.

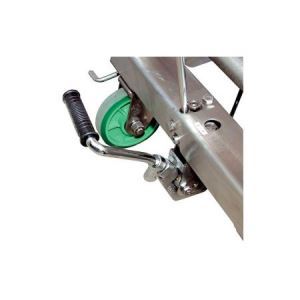

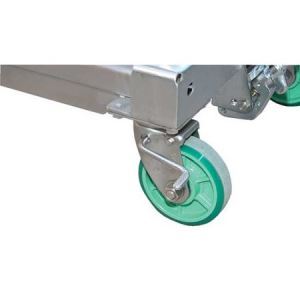

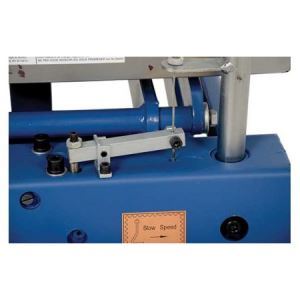

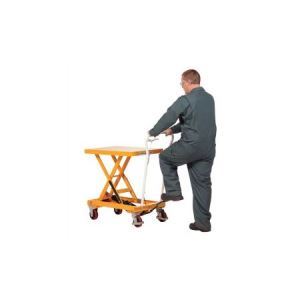

• Standard: Each unit comes standard with a foot pump that includes a soft-lowering down valve. Other standard features include 4 polyurethane casters and an internal hydraulic velocity fuse in each cylinder.
• Options: Hydraulic Lift Cart options include foot treadle air/hydraulic, 24V hand control (115V AC), 12V DC power unit with battery and hand control, bench top charger, battery indicator gauge, and twist throttle traction drive, 24V DC.
• Surcharge: Tariffs or surcharges may apply to current published pricing.
