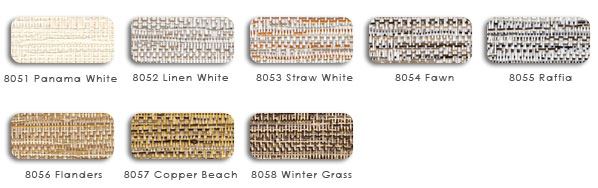

Ecoveil EcoVeil Naturals 8050 Series (1-2% open)
- Eight colors
- 100% TPO (thermoplastic olefin)
- 64-66 in. (163-168cm) wide
- Pass NFPA 701-2004
|  |

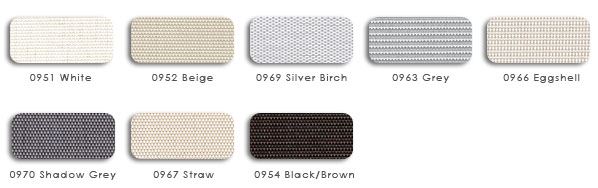

EcoVeil Screens 0950 Series (1% open)
- Eight colors
- 100% TPO (thermoplastic olefin)
- 64-66 in. (163-168cm) wide
- Pass NFPA 701-2004
|  |

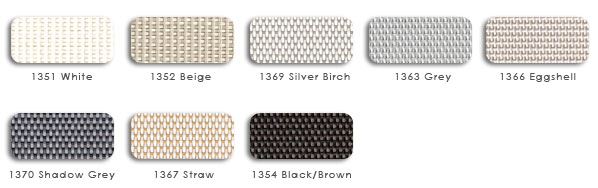

EcoVeil Screens 1350 Series (5% open)
- Eight colors
- 100% TPO (thermoplastic olefin)
- 100 in. (254cm) wide
- Pass NFPA 701-2004
|  |
EcoVeil Screens 0950 Series (1% open)
- Eight colors
- 100% TPO (thermoplastic olefin)
- 64-66 in. (163-168cm) wide
- Pass NFPA 701-2004
|  |

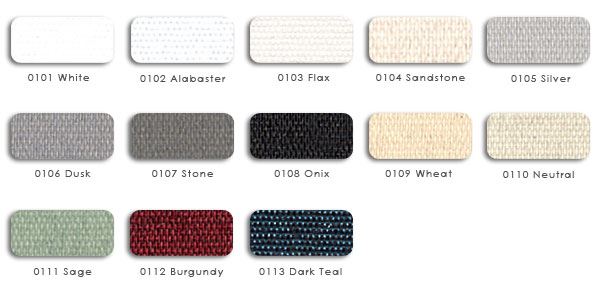

ThermoVeil for A/V Equinox 0100 Series
- Appropriate for multi-media are functions
- Provides thermal insulation and opacity at the window wall
- Washable surface, flame retardant and fade resistant
- Content: 53% fiberglass, 45% acrylic, 2% poly finish
- Transparency: Opaque
- Stocked in 100″ (2540mm) width
|  |
MirroFilm 0600 Series
- Transparent, light filtering and heat insulating material
- Cen be used on DualShades
- Washable surface and fade resistant
- Transparency: Transparent film
- Stocked in 60″ (1524mm) and 72″ (1829mm) widths
|  |

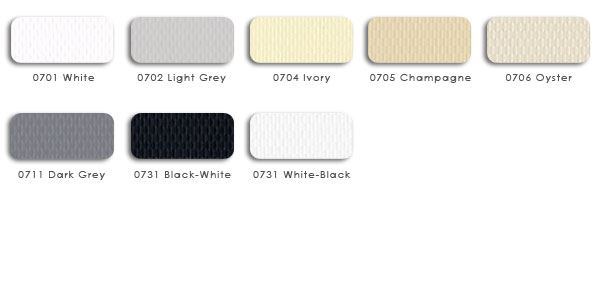

Blackout 0700 Series
- Cost effective
- Appropriate for multi-media are functions
- Provides insulation and opacity at the window wall
- Washable surface, flame retardant and fade resistant
- Content: 79% vinyl, 21% polyseter core
- Transparency: Opaque
- Stocked in 72″ (1829mm) width
|  |
ThermoVeil Vertical and Basket Weaves

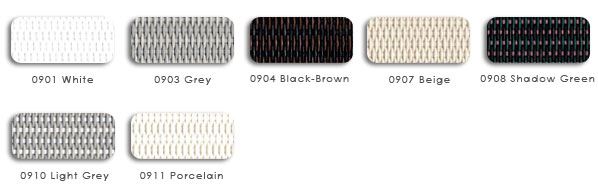

Transulcent Vertical Weave 0900 Series
- Content: 79% vinyl, 21% polyseter core
- Openness factor: ± 0-1%
- Stocked in 72″ (1829mm) width
- Color will affect surface brightness and view
- Contribute towards a healing environment by helping patients take advantage of the therapeutic natural light and views
- Full-size mockups recommended (slight color change will occur due to changes)
- Offered and available in a wide range of colors
|  |

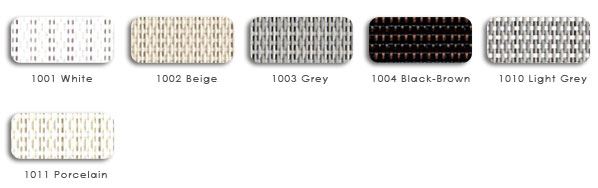

Dense Vertical Weave 1000 Series
- 2-3% openness factor
- Washable, flame retardant and fade resistant
- Offered and available in a wide range of colors
- Contribute towards a healing environment by helping patients take advantage of the therapeutic natural lights and views
- Content: 79% vinyl, 21% polyseter core
- Openness factor: ± 2-3%
- Stocked in 72″ (1829mm) and 96″ (2438mm) widths
- Color will affect surface brightness and view
- Full-size mockups recommended (slight color change will occur due to changes)
|  |

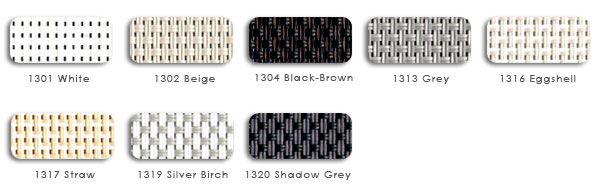

Basket Weave 1300 Series
- Offered and available in a wide range of colors
- Provides a uniform scrim effect at the window wall with appropriate densities for sun control
- Content: 79% vinyl, 21% polyseter core
- UV Test 200 sun-fade hours: None
- 500 sun-fade hours: 5%
- Openness factor: ± 5%
- All colors stocked in 63″ (1600mm) and 96″ (2438mm) widths
- 126″ (3200mm) width. Stocked: 1301,1302, 1304, 1313, 1316 and 1320
- Color will affect surface brightness and view
- Full-size mockups recommended (slight color change will occur due to changes)
|  |
Open Vertical Weave 1800 Series
- Washable, flame retardant and fade resistant
- Offered in a wide range of colors
- Content: 79% vinyl, 21% polyseter core
- Openness Factor: ±15%
- Stocked in 63″ (1600mm) widths
- Color will affect surface brightness and view
- Full-size mockups recommended (slight color change will occur due to changes)
|  |

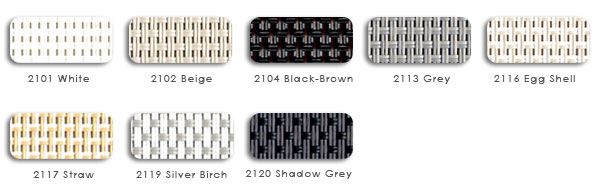

Open Basket Weave 2100 Series
- Offered in a wide range of colors
- Provides a uniform scrim effect at the window wall with appropriate densities for sun control
- Content: 79% vinyl, 21% polyseter core
- Openness Factor: ±10%
- Stocked in 63″ (1600mm) and 96″ (2438mm) widths
- 126″ (3200mm) width available on special order
- Color will affect surface brightness and view
- Full-size mockups recommended (slight color change will occur due to changes)
|  |

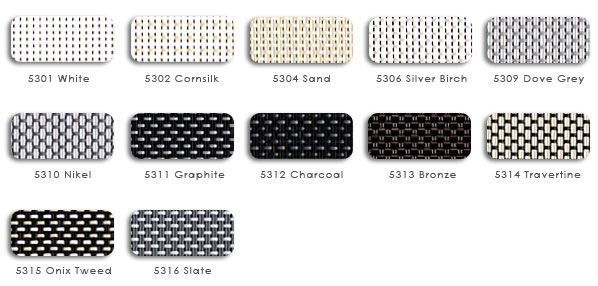

EuroVeil / EuroTwill EuroVeil 5300 Series
- Offered in a wide range of colors
- Provides a uniform scrim effect at the window wall with appropriate densities for sun control
- Content: 85% vinyl, 15% polyseter core
- Deterioration (200 sun-fade hours): None
- Openness Factor: ± 5-6%
- Stocked in 63″ (1600mm) and 96″ (2438mm) widths
- Color will dramatically affect comfort factor and visual tasks
- Color will affect surface brightness and view
- Full-size mockups recommended (slight color change will occur due to changes)
|  |

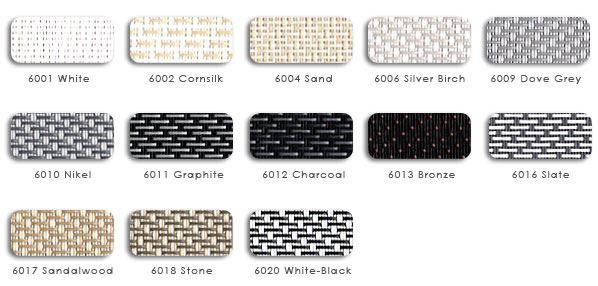

EuroVeil 6000 Series
- Offered in a wide range of colors
- Provides a uniform scrim effect at the window wall with appropriate densities for sun control
- Content: 79% vinyl, 21% polyseter core
- Openness Factor: ±10%
- Stocked in 63″ (1600mm) and 96″ (2438mm) widths
- 126″ (3200mm) width available on special order
- Color will affect surface brightness and view
- Full-size mockups recommended (slight color change will occur due to changes)
|  |

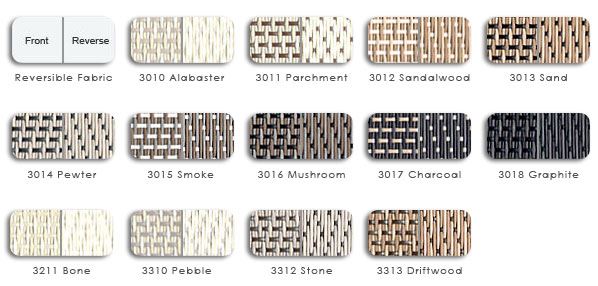

ThermoVeil for Healthcare Satin and Diamond Twill 3000 Series
- Minimum yards 250 Linear Yards ±10% or 250 Linear Yards +20%
- Content: 79% vinyl, 21% polyseter core
- Openness Factor: ± 1-2%
- Stocked in 72″ (1829mm) and 96″ (2438mm) widths
- Color will affect surface brightness and view
- Full-size mockups recommended (slight color change will occur due to changes)
|  |

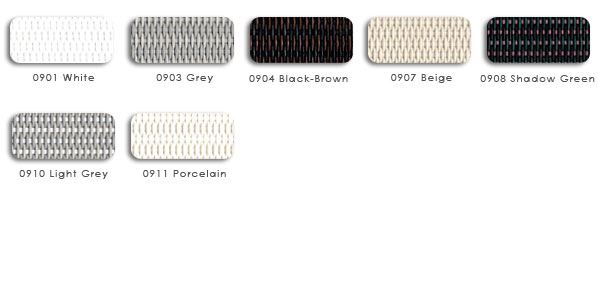

Translucent Vertical Weave 0900 Series
- Features privacy screen cloth which allows light in from the outside while maintaining privacy day and night
- Contribute towards a healing environment by helping patients take advantage of the therapeutic natural light and views
- Available in a wide range of colors
- Content: 79% vinyl, 21% polyseter core
- Openness Factor: ± 0-1%
- Stocked in 72″ (1829mm)
- Color will affect surface brightness and view
- Full-size mockups recommended (slight color change will occur due to changes)
|  |
