ULTRA 2500 Series Safety Nosings - New Concrete

ULTRA 2500 Series Safety Nosings - New Concrete

ULTRA Tread 2500 Series are designed to provide a full coverage abrasive non slip surface that is idea for interior light pedestrian applications and is available in 10 models. Select required width in the following paragraph. It is recommended that nosings cast in concrete stairs be provided in lengths 3 inches less than width of stair and for steel pan stairs nosings be provided 1/8 inch less than stair.

Specify for:

  • Pedestrian and light wheeled traffic
  • Indoor use
  • Emergency Egress
  • Full Coverage Uniform Color
  • Barrier Free Design

All treads in the 2500 series are supplied with ultra hold integral anchors standard. Also available with countersunk holes. Epoxy filler provides a complete and uniform coverage over the entire extruded aluminum base. Treads are provided with black color unless otherwise specified. For treads with no anchor specify model number without “A” designation.

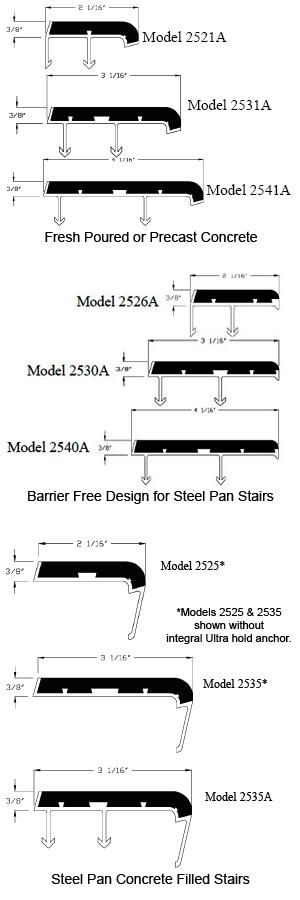

  • Model: 2510A; 3/4” wide x ¼” thick for poured concrete stair.
  • Model: 2521A; 2-1/16” wide x ¼” thick for poured concrete stair.
  • Model: 2531A; 3-1/16” wide x ¼” thick for poured concrete stair.
  • Model: 2541A; 4-1/16” wide x ¼” thick for poured concrete stair.
  • Model; 2525A; 2” wide x 3/8” thick with 1-1/8” nose for steel pan concrete stair.
  • Model; 2535A; 3-1/16” wide x 3/8” thick with 1-1/8” nose for steel pan concrete stair.
  • Model; 1545A; 4” wide x ¼” thick with 1-1/8” nose for steel pan concrete stair.
  • Model: 2526A; 2-1/16” wide x 3/8” thick for sloped riser steel pan stair.
  • Model: 2530A; 3-1/16” wide x 3/8” thick for sloped riser steel pan stair.
  • Model: 2540A; 4-1/16” wide x 3/8” thick for sloped riser steel pan stair.


ULTRA 2500 Series Safety Nosings - New Concrete

Colors

All Ultra Tread Series treads are available in the colors shown. Actual color may vary slightly.
