ULTRA 1500 Series Safety Nosings - New Concrete

ULTRA 1500 Series Safety Nosings - New Concrete

Heavy traffic use extruded aluminum Ultra Tread 1500 series as manufactured by UPNOVR, Inc., are supplied with continuous anchor for use on fresh pour concrete and steel pan stairs. Also available with countersunk holes. For treads with no anchor specify model number without “A” designation.

Specify for:

  • Heavy Pedestrian traffic
  • Outdoor Use
  • Barrier Free Design
  • Maximum Safety To Wear Ratio

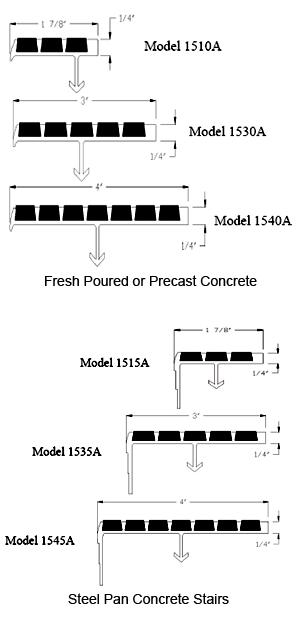

The Ultra Tread 1500 Series is available in seven models. It is recommended that nosings cast in concrete stairs be provided in lengths 3 inches less than width of stair and for steel pan stairs nosings be provided 1/8 inch less than stair.

  • Model: 1510A; 1-7/8” wide x ¼” thick for poured concrete stair.
  • Model: 1530A; 3” wide x ¼” thick for poured concrete stair.
  • Model: 1540A; 4” wide x ¼” thick for poured concrete stair.
  • Model: 1560A; 6” wide x ¼” thick for poured concrete stair.
  • Model; 1515; 1-7/8” wide x ¼” thick with 1-1/8” nose for steel pan stair.
  • Model; 1535A; 3” wide x ¼” thick with 1-1/8” nose for steel pan stair.
  • Model; 1545A; 4” wide x ¼” thick with 1-1/8” nose for steel pan stair.


ULTRA 1500 Series Safety Nosings - New Concrete

Colors

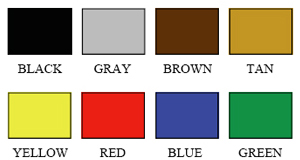

All Ultra Tread Series treads are available in the colors shown. Actual color may vary slightly.
