Swing Up Deck Access Ladder – U-507

Swing Up Deck Access Ladder – U-507

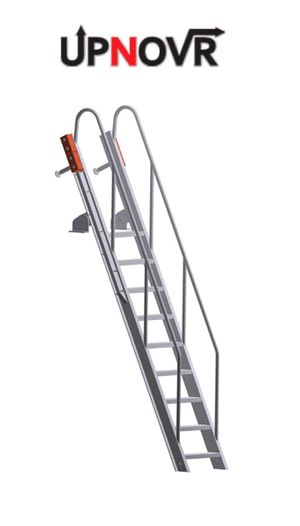

The Swing Up Deck Access Ship Ladder by UPNOVR, Inc. is designed to meet or exceed OSHA and ANSI A14.3 standards. We feature all-welded aluminum construction with no field assembly required. The Swing Up Deck Access Ship Ladder is manufactured with non-spark, high-strength materials to applicable ASTM standards, with standard mill finish. Standard tread width is 24”, made from deep serrated material for sure-footed climbing, with a minimum 500 pound loading capacity. Hand railing is 1-1/4”aluminum schedule 40 pipe on both sides, extending 42” above the ladder to OSHA standards. The Swing Up Deck Access Ship Ladder features a pivot-hinge at the top of the ladder with counter-balance weighting. It is designed to swing upward and store in a horizontal position when not in use– allowing greater space utilization or as a means of limiting access where occasional entry is needed. Ladder angle recommended at 75 degrees, other angles may be available according to use and access requirements. Standard wall mounting brackets are included with all ladders.

Custom fabrication requirements are available options — please contact UPNOVR for further information.

SPECS

  • Height: N/A
  • Width: 24”
  • Length: Customer Specify
  • Material: Aluminum 6061 – T6
  • Manufactured To: OSHA & ANSI 14.3
  • Loading: 500#/rung
