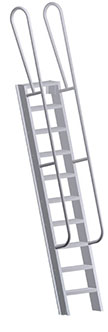

Mezzanine Access Ladder – U-501
The Mezzanine Access Ship Ladder by UPNOVR, Inc. is designed to meet or exceed OSHA and ANSI A14.3 standards. The Mezzanine Access Ship Ladder is manufactured with non-spark, high-strength materials to applicable ASTM standards, with standard mill finish. Standard tread and platform width is 24”, made from deep serrated material for sure-footed climbing, with a minimum 500 pound loading capacity. Hand railing is 1-1/4”aluminum schedule 40 pipe on both sides, extending 42” above the ladder to conform to OSHA standards. The Mezzanine Access Ship Ladder is designed to provide a more comfortable access method to roof or mezzanine areas when traditional ladder rungs are not appropriate. Ladder angle may be specified according to use and access requirements before manufacture. Standard wall mounting brackets are included with all ladders. Abrasive filled treads (type SNAT) are available as an optional item.
Custom fabrication requirements are available options — please contact UPNOVR for further information.
- Height: Customer Specify up to 20 Feet
- Width: 24”
- Material: Aluminum 6061 – T6
- Manufactured To: OSHA & ANSI 14.3
- Loading: 500#/rung
