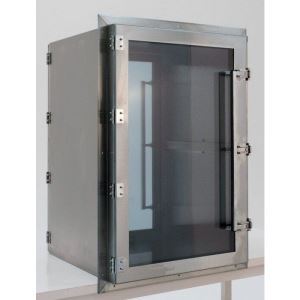

Pass-Through; CleanSeam™, 24Wx24Dx36H ID, Standard Wall Mount, 304 Stainless Steel

• Available ISO Ratings: ISO 6, ISO 7, ISO 8
• Fully welded cleanroom passthrough without crevices, ideal for medical/pharmaceutical applications
• Continuous welds are suitable for moderate sterilization protocols
• Automatic door interlock allows only one door to open at a time to prevent cross-contamination
• Doors are leak-rated by UL for tight seal to maintain cleanroom air pressure gradients
• Stainless steel framed doors, latches, and hinges extend service life of passthrough chamber
• Cleanroom pass throughs reduce foot traffic, improve cleanliness, safety, productivity, and much more.
• Chamber Design:
• Corrosion resistant all-304 stainless steel surfaces resists most harsh chemicals and alcohol-based cleaning agents, won’t produce contaminants during sterilization.

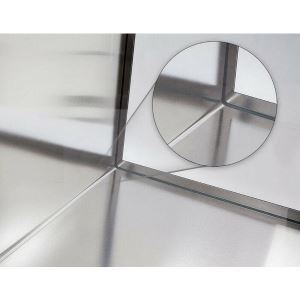

• Seamless welds eliminate hard-to-clean cracks and crevices where contaminants can collect.
• Door Design:

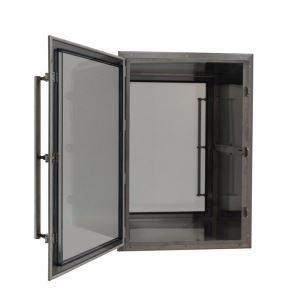

• Access doors with 304 stainless steel reinforced frames extend passthrough chamber's service life and provide a tight seal.
• Santoprene® “e”-shape non-outgassing rubber gasket firmly compresses to eliminate leaks. The one-piece resilient rubber gasket maintains its shape after compression and won't flatten, warp, crack, or degrade like ordinary foam gasket. Gasket is also mechanically attached to the door frame to avoid adhesive failure common with gasket tapes.
• Heavy-duty stainless steel lift latches included to minimize scratching, corrosion and contamination resulting over time that can occur with chrome-plated latches.
• Chemical-resistant, static-dissipative PVC windows prevent static-clinging of particulates.
• Order replacement door(s) to avoid critical operation delays should a door be damaged and require immediate replacement.
• Includes:
• (1) Automatic mechanical interlock
• Mounting brackets; Standard bracket mounting is 2" (51mm) from the front on the cleanroom side - specify other desired location
• Optional upgrade: to prevent users on both sides from forcefully pulling the doors open at the same time and risking damage, Smart CleanMount Pass-Throughs offer visual red/green status lights to notify users when a door can be opened safely.

• Inside Depth: 24"
• Inside Height: 36"
• Inside Width: 24"
• Concealed Interlock: No
• Continuous-Seam Welds: Yes
• Electropolished: Optional
• HEPA/ULPA Filtration: No
• Material: 304 Stainless Steel
• Model: CleanSeam™
• Mounting Position: Standard Wall
• Opening Dimensions: 22"W x 34"H
• Special Door Configuration: Leak-Rated
• Window Material: SD-PVC
• Unit of Measure: EA
• Dimensions, Product: 27" W x 28" D x 39" H
• Dimensions, Shipping: 38.25" W x 37.25" D x 46" H
• Marks & Listings: CE, UL, ULC
• Package Type: Crate
• Weight, Product: 121 lb
• Weight, Shipping: 256 lb

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
