Model FL - Extruded Aluminum Brick & Block Vents - Flanged



Model FL - Extruded Aluminum Brick & Block Vents - Flanged

Model FL - Extruded Aluminum Brick & Block Vents - Flanged

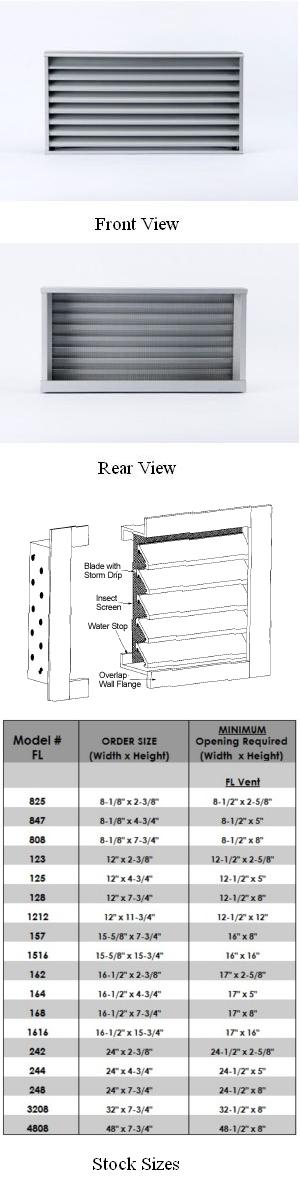

"FL" STYLE - 1-1/2" Deep with 1" Front Flange


EXCLUSIVE FEATURES

  • Available in any special size to suit any job design
  • All extruded sections
  • Minimum .125” thickness
  • 1" deep overlapping blade
  • 204-R1 Clear Anodized finish standard
  • Made in any length up to 8 ft. without front mullions-continous blade effect
  • Continuous weepage on bottom
  • Overlapping blades
  • All blades at 45 degrees

Sunvent Flange ”FL” Extruded Vents make possible simplified installation in existing walls. Chopped-out hole need not be “finished". An attractive appearance is assured by flange.

CUSTOM SIZES

Over 65% of the extruded vents we manufacture annually are custom sizes. Custom size vents often cost no more than the stock size vents of similar size, and add no additional lead time.

If you need a custom size vent, please call us toll-free at 1- 800-325-4115 to speak to one of our knowledgeable salespeople.

FINISHES

IN STOCK FINISHES

  • Clear Anodized (standard on extruded vents)
  • Mill
  • Medium bronze anodized
  • Dark bronze anodized

BAKED ENAMEL

Standard colors:

  • Bone White
  • Brick Red
  • Black
  • Statuary Bronze

Custom colors:
Available upon request

KYNAR finishes are also available on all our extruded vents.

Note: Please contact us for color charts or feel free to send in your color sample for a quotation.
