STONECARPET Quartz Epoxy Flooring - Technical

STONECARPET Quartz Epoxy Flooring - Technical

STONECARPET® is a decorative, commercial interior flooring system. This natural stone material is composed of individual quartz stones which are carefully sized by multiple screening in an environmentally sound purification process to achieve a stunning and dramatic platform for presentation of products without conflict of decor.

STONECARPET® is a monolithic system which eliminates unsightly hard to maintain grout lines. A new palette of twenty-four standard colors provides a customization of innumerable blending opportunities. This variable blending creates an "exclusivity" of color for every project.

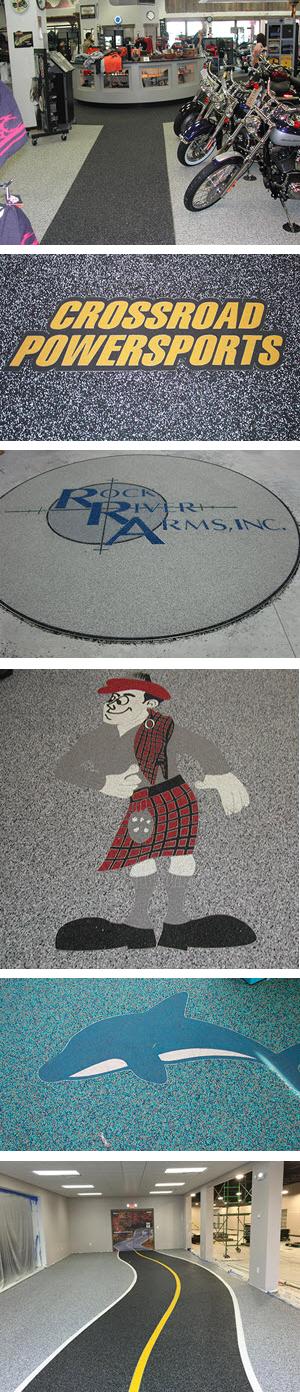

Applicable for new construction or renovations, STONECARPET® is a perfect choice for automobile and motorcycle showrooms, retail stores, churches, museums, art galleries, offices, and public areas.

PRODUCT FEATURES

  • unlimited design potential
  • will not flood or puddle
  • slip-resistant decorative surface
  • easily cleaned and maintained
  • long wearing

COVERAGE

Coverage varies with use. One batch of (approximately 200 lbs. of stones and 1.8 gallons of liquids) STONECARPET will cover approximately 60 square feet at 3/8".

STONECARPET PACKAGING

Unit Size 1.8 gallons
Part A Size 1.2 gallons
Part B Size 0.6 gallons
Part C 4x50 lb bags
Total Weight 216 lbs - approximate shipping weight

INSTALLATION GUIDELINES

Preparation: New concrete should be cured for a minimum of 30 days and installed over an effective moisture vapor barrier. Surface must be clean, dry, and sound - curing agents or other surface contaminents should be removed by mechanical means. Plywood should be primed.

Mixing: Observe all precautions on MSDS and label when using this product. Charge 200 pounds of quartz stones to poly-lined mixing vessel and tumble.

Pre-mix liquids, then blend the entire contents of the pre-measured Part A and Part B liquids with a heavy duty variable speed drill equipped with a jiffy blade for at least 2 minutes.

Add liquid component mixture to stones and blend for an additional 2 - 3 minutes until stones are fully wetted out.

Application: Distribute mix to work area, rake, screed to desired depth, then compact and finish with steel trowel.

Cure: STONECARPET® will be tack-free in 8 - 12 hours at 70°F and suitable for light traffic after 16 -24 hours. Full curing requires 72 hours.

Clean-up: Clean skin with soap and water, use MEK or proprietary epoxy thinner for equipment.

PHYSICAL PROPERTIES LOK DOWN BINDER

Composition ..................Two-component amine cured epoxy
Color .................................................................................clear
Gloss; 60° ............................................................................100
Weight/gal. ....................................................... 8.8 lbs., mixed
Solids content .................................................................100%
Mix ratio ........................................................ 2A : 1B by volume
Viscosity ........................................... 1,000 cps. mixed approx.

PERFORMANCE PROPERTIES.CURED LOK DOWN BINDER

Tensile Strength (ASTM D-638) .............................. 8,000 psi.
Elongation (ASTM D-638) ................................................4.0%
Hardness (ASTM 0-2240) ...................................79 (Shore D)
Adhesion (ASTM 0-4541) .................. 300 psi. (concrete fails)

PERFORMANCE PROPERTIES, STONECARPET SYSTEM

Bond Strength (ACI 503R) .................300 psi. (concrete fails)
Water Absorption (ASTM C-413) ......................................0.6%
Flammability (ASTM D-635) ........................Self-extinguishing
Impact Resistance (MIL-D-3134F) ................. 16 foot-pounds (concrete fractures)
Indentation (MIL-D-3134F) ..............................No indentation

COLORS

24 standard stone colors, many combinations

SAFETY

Material Safety Data Sheets are available from SPECIFIER PRODUCTS and should be consulted prior to use of the product. These products are intended for use by professionals only. Keep away from children and those not trained in the use and potential hazards involved.

STONECARPET is a two-part epoxy system. Part A contains epoxy resins. Part B contains poiyamine epoxy adducts. Workers should wear gloves, goggles and body covering clothing when mixing or applying product. Clean up with soap and warm water. Be sure to follow all label and MSDS cautions.

CHEMICAL RESISTANCE

Reagent

Acetic Acid 5% .............................................................L
Acetone ........................................................................L
Bleach ..........................................................................L
Citric Acid-30% ............................................................R
Crude Oil .....................................................................R
Diesel Fuel ..................................................................R
Ethylene Glycol ...........................................................R
Fatty Acids ....................................................................L
Gasoline ......................................................................R
Hydrochloric Acid-15% ...............................................R
Lactic Acid-15% ...........................................................R
Methyl Ethyl Ketone ....................................................L
Nitric Acid-10% ............................................................R
Skydrol .........................................................................R
Sodium Hydroxide 50% .............................................R
Sulphuric Acid-20% ....................................................R
Toluene ........................................................................L
Urea .............................................................................R
Vinegar ........................................................................L
Xylene ..........................................................................L

R - Recommended for continuous service

L - Limited recommendation, occasional spills

This chart is intended as an aid in evaluating the performance of these systems in various chemical exposures at 76°F. The data is intended as a guide only. In severe or combination exposures, a sample should be tested under actual or simulated use conditions.

WARRANTY

SPECIFIER PRODUCTS warrants its products to conform to its manufacturing standards. SPECIFIER PRODUCTS will replace or refund the purchase price of non-conforming products at the seller's option; such remedy being exclusive of all others and sole remedy available to the buyer. Buyer hereby expressly waives claim to additional damages. Any claim under this warranty must be made in writing within 7 days of discovery of noncompliance and no later than one year from the date of delivery of product. No representative, distributor or applicator of these products is authorized to modify product data or warranty.

IMPORTANT NOTICE

These products are sold subject only to the express warranties contained herein. There are no other warranties by SPECIFIER PRODUCTS of any nature whatsoever, expressed or implied, including any warranty of merchantability or fitness for a particular purpose in connection with this product. Buyer agrees that seller assumes no liability for remote or consequential damages of any kind which result from the use or misuse of this product. Information contained herein is based on data believed to be reliable, however, it is the Buyer's responsibility to satisfy itself of the suitability of the product for a particular purpose.
