Overview



Lead Lined Vision Lite Frames

Lead Lined Vision Lite Frames

  • 8 standard sizes (Custom sizes available)
  • Includes X-Ray Safety Glass
  • Fits 1-3/4" thick lead lined doors
  • Many protective shielding levels available
  • Typically ready to ship in only 3 to 5 working days
  • Fire-rated frames carried in 3 standard sizes up to 90min.
  • Custom sizes also available

Ray-Bar’s Lead Lined Vision Lite Frames are fabricated with 18 gauge cold-rolled steel with baked enamel or powder coated color finishes, mitered corners and internal lead lining to specified shielding requirements. The x-ray safety glass is permanently labeled and meets ANSI Z97.1 and CPSC 16 CFR 1201 CAT 2 for impact resistance requirements.

Stock sizes: 8x10, 10x10, 10x12, 12x12, 12x16, 16x16, 18x18, 18x24, 18x30, 18x36, 24x24, 24x30, 24x36 and 36x36 are promptly available and ready to ship. Custom sizes are also available.

Metal vision frames are available with "Snap-On" real wood veneers that are easily stainable. They are available in Red Oak, Mahogany, Maple and Cherry to give a close match to your natural wood veneer lead lined door. All lead lined frames and x-ray lead safety glass and ceramic glazing assemblies are also available as UL fire-rated 20 minute, 60 minute and 90 minute (with size limitations).

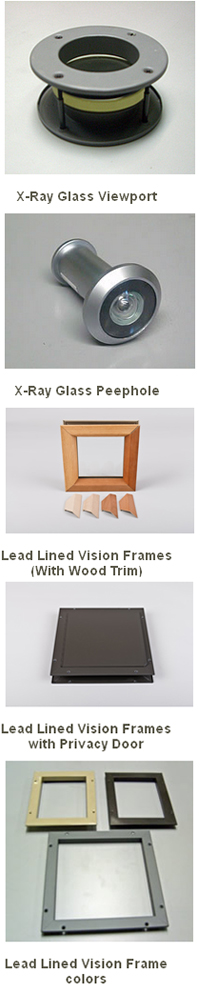

Ray-Bar Lead Lined Vision Frame with X-Ray Glass and Light Proof Door

This product line is utilized in the x-ray film developing room, thus requiring a light proof window developing radiographic films. The lead lined vision frame "door" is light proof with a magnetic-hold catch allowing the technician flexibility and function control. These units are available in standard 4# (1/16") lead lining with x-ray safety glass to meet impact resistant requirements. Higher shielding equivalencies are available upon request. Contact us for more information.

Ray-Bar X-Ray Glass Shielded Peephole

  • Installs in minutes into existing lead door
  • Includes shielded x-ray glass
  • Provides wide panoramic view
  • Available in only 1 to 3 days

The Ray-Bar X-Ray Shielded Viewport "peephole" with 1/2" diameter lens of x-ray lead glass providing 2mm lead equivalency on corridor and control room side and 1" diameter fisheye lens for wider field of view providing 180 degrees vision on x-ray imaging side, to fit into lead lined shielded door thicknesses adjusting from 1-3/8" and up to 2-1/8" thick.

This unit easily fits into 9/16" drilled mounting hole at eye level and installs in minutes. UL listed for 45 minute rated fire-resistant doors. It offers security and safe one-way operator viewing of patient and procedures while also providing patient privacy. Applications are for installation in wood or metal shielded doors, an excellent option for dental x-ray, panoramic units or chiropractic x-ray imaging.
