Overview



StoreSafe® LX-6 Security Shutters



StoreSafe® LX-6 Security Shutters

StoreSafe® LX-6 Security Shutters

Elegant Design. Strong. Protection.

Also fabricated with clear polycarbonate pieces; the LX6 rolling shutter is a lighter weight and medium-duty shutter with excellent visibility.

The LX6 is similar to the Transparoll, but with three foot wide sections of polycarbonate joined with a vertical spacer to make up the full shutter width. The lighter weight of the LX6 allows for the push-up/pull-down manual operation on shutters up to 100 sq ft.

  • Anodized “silver” aluminum horizontal ribs
  • QMI standard 7 colors available for box housing, side rails, and bottom slat
  • Most sizes available with tubular motor operation - keeping box housing size smaller
  • Excellent visibility
  • Polycarbonate inserts up to 36”(914mm) wide

For both interior and exterior use, the LX6 rolling shutter provides a physical security barrier without compromising the aesthetic. Useful at restaurant patios for patron comfort, or to keep burglars from even attempting a break-in, the QMI LX6 clear shutter system provides convenient protection.


StoreSafe® LX-6 Security Shutters


Shutter Controls & Options

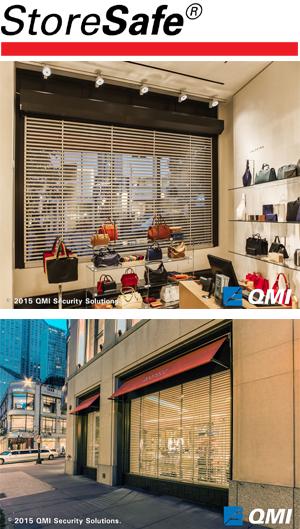

The LX6 shown here offers clear views of the merchandise, but warns would-be-intruders this store is well protected.


StoreSafe® LX-6 Security Shutters

Non-Slip Hinge

QMI shutters have a non-slip hinge, which allows for the use of a torsion spring inside the tube opposite the control mechanism.

The spring assist has many advantages to standard shutter controls.


StoreSafe® LX-6 Security Shutters

Manual Push-up / Pull-down

Where most shutters require motors, the QMI spring-operated shutter allows for push up/pull down operation. This saves on both shutter and electrical costs. Large spring-operated shutters are useful for entry doors, as egress (life safety) issues are not a concern. Simple base-slat locks enable security, but allow for escape during fire or power failures. Spring operation is available up to 130 sq ft (13 sq meters) without motors or gears.


StoreSafe® LX-6 Security Shutters

Motorized with Line Voltage (120v) (220v)

The torsion spring allows for smaller motors and extends motor life. It also acts as a safety feature that prohibits a failed motor to allow a shutter curtain to free-fall.

  • up to 170 sq ft (16,2 sq meters) w/tube motors
  • up to 300 sq ft (30 sq meters) w/external motors


StoreSafe® LX-6 Security Shutters

Hz/RTS Remote Control

  • Available in single and multi-channel applications
  • No need to aim the control at the motorized window covering, the radio signal travels through walls similar to a garage door opener
  • Provides the ability to control motorized window coverings individually and/or by group with one control
  • Offers a range of 65 ft (22 m) for easy operation


StoreSafe® LX-6 Security Shutters

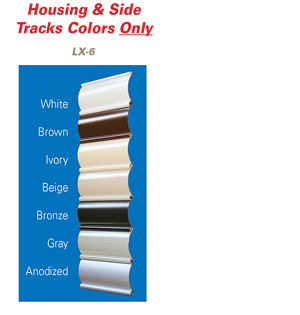

Housing and Side Track Colors


StoreSafe® LX-6 Security Shutters

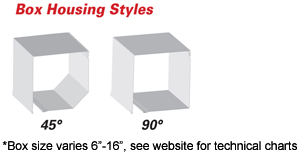

Box Housing Styles


StoreSafe® LX-6 Security Shutters
