SquAireTex ® products are the latest exciting advancement in air distribution devices from Prihoda. Designed for use in suspended ceilings, SquAireTex ® diffusers are made entirely of fabric supported by a lightweight aluminum frame. The concealed plenum can be made from insulated or uninsulated...

Category: air diffusers | ceiling air outlets | ceiling diffusers...

MasterFormat: HVAC Air Distribution | Air Outlets and Inlets | Diffusers, Registers, and Grilles



Prihoda North America
4420 Dawes Lane E
Mobile, AL 36619
Tel: (855) 774-4632
Fax: (855) 774-4632

sales@prihoda-na.com

http://www.prihoda.com/us

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview



SquAireTex Fabric Tile Diffusers

SquAireTex Fabric Tile Diffusers

SquAireTex® products are the latest exciting advancement in air distribution devices from Prihoda. Designed for use in suspended ceilings, SquAireTex® diffusers are made entirely of fabric supported by a lightweight aluminum frame. The concealed plenum can be made from insulated or uninsulated non-woven fabric and includes a sewn-in perforated baffle to ensure even dispersion from the entire diffuser.

As with all other air dispersion systems from Prihoda, every air outlet is laser cut for a precise, efficient, and durable design.

Benefits:

  • Extremely light weight (no individual support hangers required)
  • Quick and easy to install; just lay in the ceiling grid and connect to air supply
  • Flat fabric face unzips for easy cleaning
  • All fabric components are washable, making for a very hygienic ceiling diffuser
  • 9 stock colors to choose from, mix or match deflector pockets with fabric face colors
  • Custom colors and dimensions upon request
  • Optional 100% Post-consumer Recycled Content
  • Ultrasonically welded directional outlets offer a permanent bond without VOC’s

Three distinct designs to meet any air dispersion needs:


SquAireTex Fabric Tile Diffusers

SquAireTex® swirl Diffuser


SquAireTex Fabric Tile Diffusers

Channeling pockets of the SquAireTex® swirl diffuser are ultrasonically welded in an engineered configuration to generate a swirling air flow pattern that utilizes the coanda effect along the ceiling. The patent pending design of the SquAireTex® swirl diffuser provides excellent induction and mixing for superior occupant comfort.


SquAireTex Fabric Tile Diffusers

SquAireTex flow® Diffusers

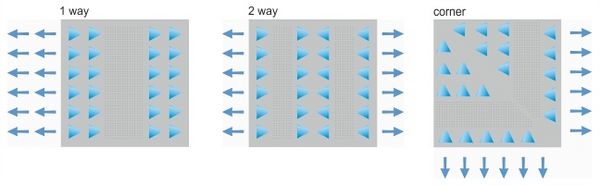

SquAireTex flow® diffusers use engineered perforations and channeling pockets to direct air flow in multiple directions. Standard configurations (custom arrangements upon request):


SquAireTex Fabric Tile Diffusers



SquAireTex Fabric Tile Diffusers


SquAireTex perfo® Diffusers


SquAireTex Fabric Tile Diffusers

Small perforations located evenly along the surface of the SquAireTex perfo® distribute low velocity, laminar flow for critical environments such as labs, cleanrooms, kitchens and indoor shooting ranges.

Prihoda North America
4420 Dawes Lane E
Mobile, AL 36619
Tel: (855) 774-4632
Fax: (855) 774-4632
E-mail: sales@prihoda-na.com
Web site: http://www.prihoda.com/us
