Overview


Par-Kut Standard Booth

The versatile PAR-KUT portable steel building fits a wide range of applications and virtually every budget. Found in commercial, industrial and government settings alike, the Standard is available in sizes from 3′ x 5′ to 10′ x 20′ and up. The straight forward design is conducive to adding restrooms, stand or trailer mounts, ADA compliant features and bullet resistant construction. Every PAR-KUT Standard is of all-welded steel construction and utilizes heavy gauge materials throughout to ensure it’s longevity regardless of the environment.


See More


Specifications

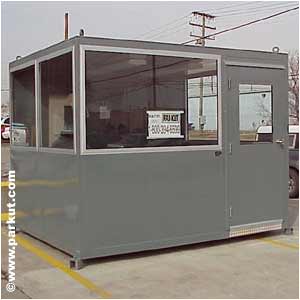

Factory Office
PSO-002

Utility companies across the country find these painted galvanized steel units extremely versatile in their constantly changing operations. Pick and place for an immediate manager’s site office. This insulated 8′ x 10′ unit comes with a HVAC system, UL classified electrical system (duplexes, lights and circuit breaker panel), and data run. If it can fit on a flat-bed truck, Par-Kut can make it happen for you. What size and requirements does your application have?

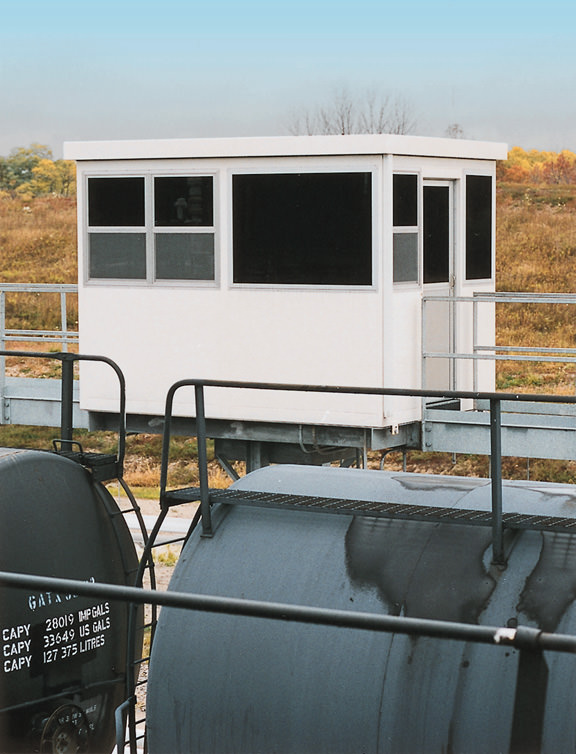

Loading Rack Shelter
IND-004

This custom 7′ x 10′ building was shipped completely assembled, and ready to use minutes after being set in place on the loading platform. Sliding doors mounted opposite of each other allow personnel to walk directly through the unit if desired. Inside the unit you will find counters mounted on both long walls, offering plenty of work space. The 360 degree glazing has been tinted extra dark to reduce any glare from the sun or outdoor lights.

Par-Kut booths can be located almost anywhere you need protection for people or equipment. And, we can make almost any size booth. May we make one for you?

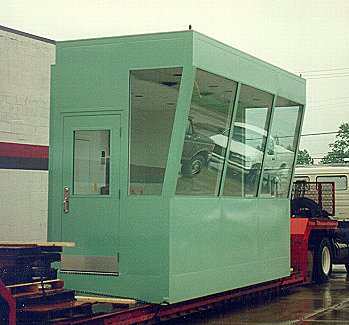

Control Pulpit
PSO-004

This 6′ x 14′ preassembled building was especially made for installation above a steel processing line. The sloped windows give the operators a better view of the shop floor. The rugged welded steel building is insulated for sound and temperature control and includes built in work counters, lights, convenience outlets and climate control. Building is portable and can be relocated with either a fork lift or crane. Pre-wired to wall mounted circuit breaker panel.

When rapid installation is desirable, and controlling your costs for construction are important, contact Par-Kut. We have built thousands of buildings for other customers and for hundreds of applications. May we build one for you?

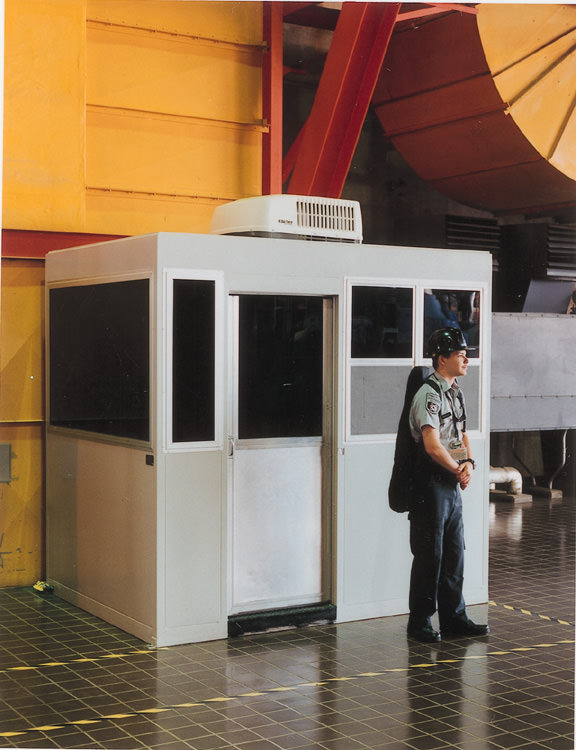

Nuclear Guardhouse
STD-004

Par-Kut’s all welded galvanized portable steel buildings are excellent for exterior and interior situations. This standard booth has been adapted for an in-plant application. This “Garage” style unit has no overhang, fascia or drain system. With comfort still a concern, this booth is equipped with a surface mounted heater & roof top air conditioner both controlled with integral thermostats. Increased privacy is achieved by applying an extra dark tint to all glazing. Customer’s love the unlimited movability of these units, just a forklift move away!

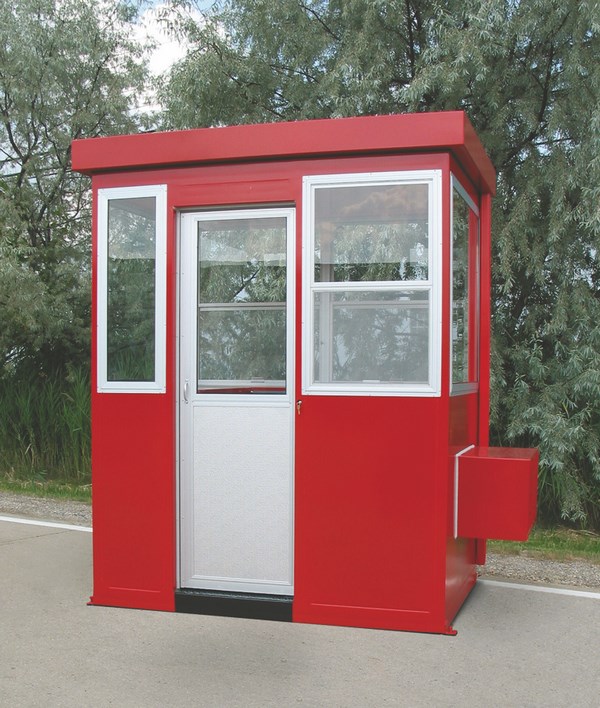

Guardhouse
QS-003

The room inside the Model 86 - 6′ x 8′ booth is great for heavy traffic situations needing 2-3 employees, or where storage of records is needed at the booth location. Par-Kut craftsmen can customize this or any Quick Ship status booth with designated options and still remain in a 3-5 week delivery.

All Quick ship booths come standard with:

  • Rugged welded galvanized steel - Assures years of service life
  • Insulated double panel steel walls & roof
  • Factory wired electrical system
  • 1500w fan forced heater for occupant comfort
  • Sturdy built in painted galvanized steel work counter with storage drawer
  • Portable - move with fork lift, boom truck or crane.
  • 4″ galvanized steel tube base & forged steel eye bolt in roof
  • Convenient sliding steel door with hookbolt lock, top suspended
  • Excellent visibility - clear tempered safety glass windows all around, set in anodized aluminum frames
  • Optional screened ventilation windows

Available options include: tinted glass, sliding cashier window in door, additional duplex outlets, thru wall combo heat/air conditioner, upgrade to heavy-duty heater, and cashier window opposite door (roller style). Color selection limited to: white, medium blue, gray, dark brown and beige

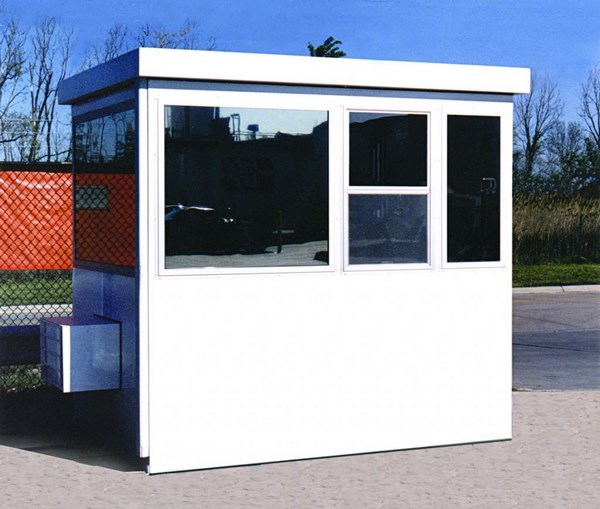

Steel Booth
QS-004

One of our most popular single person booths, offering enough space for operations in comfort, yet demanding the space of only one car space. Par-Kut craftsmen can customize this or any Quick Ship status booth with designated options and still remain in a 3-5 week delivery.

All Quick ship booths come standard with:

  • Rugged welded galvanized steel - Assures years of service life
  • Insulated double panel steel walls & roof
  • Factory wired electrical system
  • 1500w fan forced heater for occupant comfort
  • Sturdy built in painted galvanized steel work counter with storage drawer
  • Portable - move with fork lift, boom truck or crane.
  • 4″ galvanized steel tube base & forged steel eye bolt in roof
  • Convenient sliding steel door with hookbolt lock, top suspended
  • Excellent visibility - clear tempered safety glass windows all around, set in anodized aluminum frames
  • Optional screened ventilation windows

Available options include: tinted glass, sliding cashier window in door, additional duplex outlets, thru wall combo heat/air conditioner, upgrade to heavy-duty heater, and cashier window opposite door (roller style). Color selection limited to: white, medium blue, gray, dark brown and beige


Control Room
PSO-003

In-Plant offices are used in all scenarios and the unit should match the situation. This 8′ x 8′ booth has been customized to deal with a noisier than average location. Some of these modifications are: reduce the amount of glass while maintaining 360 degree visibility, all glazing is 1″ insulated glass for extra sound buffering, insulated walls have been increased to 3″, floor is completely insulated. Add the roof mounted air conditioner, baseboard heater, UL classified electrical system, and now you have the perfect portable office that can be moved with a fork-lift or by the lifting rings mounted in the roof.

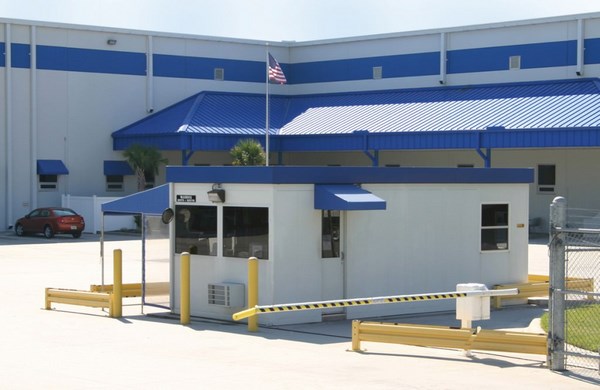

Guard Hut with Rest Room
AE-004

Large and small booths alike can have paint schemes applied to match main structures. This particular booth is more than just a guardhouse. Being located at a large manufacturing facility that operates 24/7/365 more was demanded. Within this structure is the guard area, ADA compliant restroom and a manager’s office.

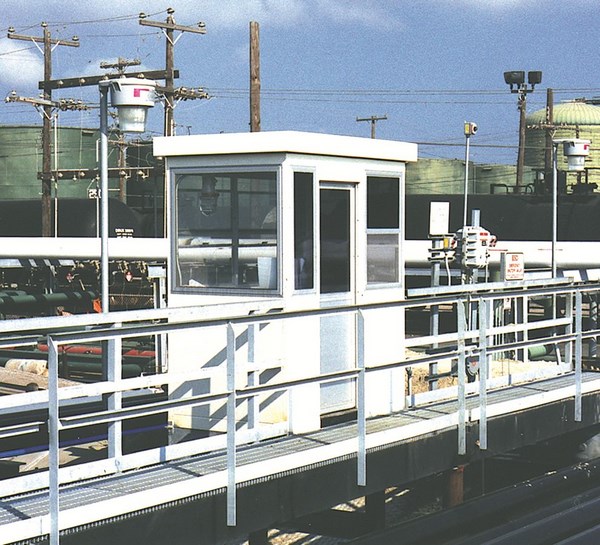

Fuel Dock House
IND-001

Pictured here is a “Platform Operator Shed” widely known and used in the petrochemical industry. Normally the booth is mounted high above an operation either on a platform or a walkway and used for observations or to operate a system. These booths are constructed complete with explosion proof electrical. The most commonly requested classification would be Class I, Division II, Group D. These sheds can be as small as 3′ x 4′ or as large as needed and most common would be 4′ x 6′ or 6′ x 8′.

The most common accessories requested with these are: incandescent light with wall switch, single receptacle, 1700w heater with thermostat, and 14,000 BTU through wall air conditioner. When one of these units leave the factory all the electrical accessories are installed and piped to a single explosion proof junction box. Once on site, the final power supply connection and completion of the seal-offs are completed by the owner.
