Overview



VersaBoard® Mineral Wool Board Insulation

VersaBoard® Mineral Wool Board Insulation

  • Excellent Thermal Performance (R-Value up to 4.2 per inch)
  • Exceptional sound and noise absorption
  • Fire resistant to temperatures above 2,000ºF (1,093ºC)
  • Easy to fabricate
  • Conserves energy, reduces greenhouse gas emissions

Thermafiber® VersaBoard® Insulation

Description:

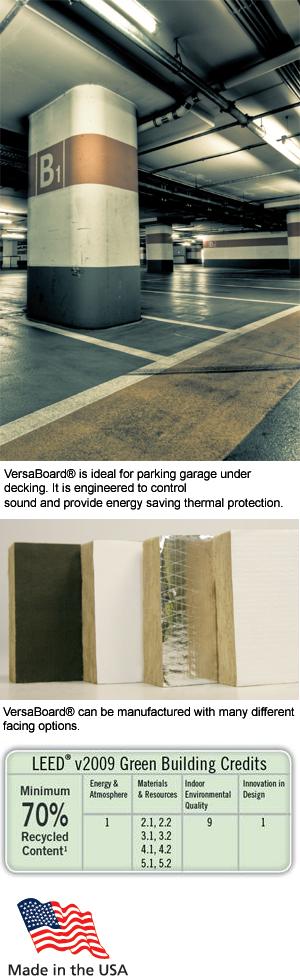

THERMAFIBER® VersaBoard® provides the best possible combination of fire protection, sound control, thermal insulation, and energy conservation for various commercial construction applications. These products are ideal for parking garage under decking, mechanical rooms, and other areas where insulation is required. These products are engineered to repel moisture and can be an exposed interior surface. VersaBoard is not listed by UL® for use in perimeter fire containment systems.


Product Options:

Product
Foil Facing
ASJ & Other Facings
Dark Fiber
VersaBoard 35
≥2 ½”
≥3 ½”
VersaBoard 40
≥2”
≥3”
VersaBoard 60
≥1 ½”
≥2”
VersaBoard 80
≥1”
≥1 ½”


Recycled Content Options¹ :

EPA Choice Fiber (US Government Buildings) ........ Minimum 75%

Standard Fiber .................................................................... 70%

¹Recycled content options other than Standard must be specified at time of order.

Installation:

Thermafiber ® recommends mechanical attachment of VersaBoard ® products. Standard insulation pins and washers are recommended.


Standard Sizes:

Product
Thickness*
Widths**
Lengths**
VersaBoard 35
1 ½” – 7”
24”, 36”
48”, 60”
VersaBoard 40, 60
1”-7”
24”, 36”
48”, 60”
VersaBoard 80
1”-5”
24”, 36”
48”, 60”
Tolerances
+1/4”-1/8”
±1/8”
±1/2”
*Thicknesses are available in ½” increments. **Custom sizes are available upon request.


Technical Data:


Tested to ASTM E 84

Tested to ASTM C 518
Unfaced
Foil Faced
Product Designation
Actual Density
“k” @ 75° [24°C] BTU.in/hr.sq. ft. °F
“R” value per inch of thickness***
Flame Spread
Smoke Developed
Flame Spread
Smoke Developed
VersaBoard 35
3.5 pcf
0.25
4.0
0
0
25
0
VersaBoard 40
4.0 pcf
0.24
4.2
0
0
25
0
VersaBoard 60
6.0 pcf
0.24
4.2
0
0
25
0
VersaBoard 80
8.0 pcf
0.24
4.2
0
0
25
0
***R = thickness divided by ‘k’


Standards Compliance

NFPA 101Class A rated interior finish
ASTM C 665Non-Corrosive Type I (unfaced material), Type II (Black & White Mat, ASJ), Type III (foil)
ASTM C 612VersaBoard 35 IA; VersaBoard 40 IA, IB, II, III, IVA
ASTM C 612VersaBoard 60 & 80 IA, IB, II, III, IVA
ASTM E 136Rated Non-combustible per NFPA Standard 220
ASTM E 96ASJ & foil faced, 0.02 perms as tested
ASTM C 1104Absorption less than 1% by volume
ASTM C 356Linear shrinkage <2% @ 1200° F (650°C)

Thermafiber
3711 Mill Street
Wabash, IN 46992
Toll Free: 1-888-834-2371
General Information Email: info@owenscorning.com
Insolutions® Email: technicalservice@owenscorning.com
Website: www.thermafiber.com | www.ocbuildingspec.com
