RainBarrier® Continuous Mineral Wool Insulation

RainBarrier® Continuous Mineral Wool Insulation

RainBarrier® Rain Screen & Cavity Wall Continuous Insulation

Thermafiber RainBarrier® products are designed for exceptional performance in rain screen and cavity wall construction applications. New RainBarrier HD & RainBarrier 45 provide energy saving continuous insulation (ci), fire protection, and acoustical control while efficiently draining water from a wall cavity system. RainBarrier products are non-combustible and compatible with common wall ties and air barrier systems.

RainBarrier® has several distinct advantages over other insulation products in these types of construction:

  1. Non-combustible and fire resistant. RainBarrier can withstand temperatures over 2000°F for over 5 hours. In the event of a fire, mineral wool will not burn or release toxic smoke and gasses.
  2. Sustainability. Available with a minimum 70% recycle content. No CFC or HCFC blowing agents. Energy saving R-value of 4.2 per inch of thickness.
  3. Permeable. In a vapor permeable system, RainBarrier® allows the building to breathe as it is designed without sacrificing R-value. In a non-permeable system, RainBarrier allows the vapor barrier to perform without creating additional traps for moisture in the wall cavity.
  4. UV resistant. RainBarrier is ideal for use in open joint systems where UV rays can degrade other insulations.
  5. Easy to fabricate and install. Semi rigid mineral wool can conform to jobsite irregularities much better than rigid insulations to ensure a continuous thermal barrier.


RainBarrier® Continuous Mineral Wool Insulation

Thermafiber® RainBarrier® 45 Insulation

  • Non-combustible, non-deteriorating, & inorganic
  • Repels and efficiently drains water
  • Highly UV Resistant
  • Conserves energy, reduces greenhouse gas emissions
  • Fire resistant to temperatures above 2000º F (1,093º C)
  • Controls noise and sound
  • Natural dark color provides camouflaging in open joint façades

Description:

Thermafiber® RainBarrier®/Continuous Insulation products are designed for exceptional performance in rain screen and cavity wall construction applications. RainBarrier® 45 insulation provides thermal insulation, fire protection, and acoustical control while efficiently draining water from a wall cavity system. Its natural, dark color provides camouflaging in open joint facades and eliminates the need for black facing. Thermafiber, Inc. does not recommend applying a black facing in open joint applications because the manufacturers of the facing do not support their long term exposure. RainBarrier® products are non-combustible and compatible with common wall ties, adhesives, and air barrier systems.

Product Options:

  • Recycled Content Options1:
    EPA Choice Fiber (US Government Buildings)........Minimum 75%
    Standard Fiber......................................................................70%
    1Recycled content options other than standard must be specified at time of order.

Installation:

Thermafiber® recommends mechanical attachment of RainBarrier® insulation products. See Thermafiber’s RainBarrier® Installation Guide at www.thermafiber.com/rainbarrier


Standard Sizes:

Thickness*
Widths**
Lengths**
RainBarrier 45
1”- 7”
16”, 24”, 36”
48”, 60”
*Thicknesses are available in ½” increments. **Custom sizes are available upon request.


Technical Data:

Tested to ASTM C 518
Tested to ASTM E 84 Unfaced
Product Designation
Actual Density
“k” @ 75° [24°C] BTU.in/hr.sq. ft. °F
“R” value per inch of thickness***
Flame Spread
Smoke Developed
RainBarrier 45
4.5 pcf
0.24
4.2
0
0
***R = thickness divided by ‘k’


Acoustical Performance:

 NRC Data
Coefficients at Frequencies Per ASTM 423
Thickness
125 Hz
250 Hz
500 Hz
1000 Hz
2000 Hz
4000 Hz
NRC
RainBarrier 45
1-½”
0.22
0.44
0.96
1.06
1.05
1.05
0.90
2"
0.30
0.69
1.08
1.01
1.00
1.03
0.95
3"
0.70
1.07
1.24
1.13
1.07
1.08
1.15
4"
1.03
1.25
1.20
1.05
1.05
1.08
1.15


Standards Compliance:

RainBarrier® 45 insulation meets the following:
ASTM C 665Non-corrosive
ASTM C 795Pass
ASTM C 612RainBarrier 45 Type IA, IB, IVA
ASTM E 136Rated Non-combustible per NFPA Standard 220
ASTM E 96Unfaced, 50 Perms as tested
ASTM E 84Flame Spread 0, Smoke Developed 0
CAN/ULC S 102Flame Spread 0, Smoke Developed 5
ASTM C 1104Absorbs 0.03% by volume
ASTM C 356Linear Shrinkage <2% 1200° F (650°C)


RainBarrier® Continuous Mineral Wool Insulation

Thermafiber® RainBarrier® HD Insulation

  • Non-combustible, non-deteriorating, & inorganic
  • Repels and efficiently drains water
  • Heavy density rigid board
  • Conserves energy, reduces greenhouse gas emissions
  • Fire resistant to temperatures above 2000º F (1,093º C)
  • Enhances sound control
  • Natural dark color provides camouflaging in open joint façades

Description:

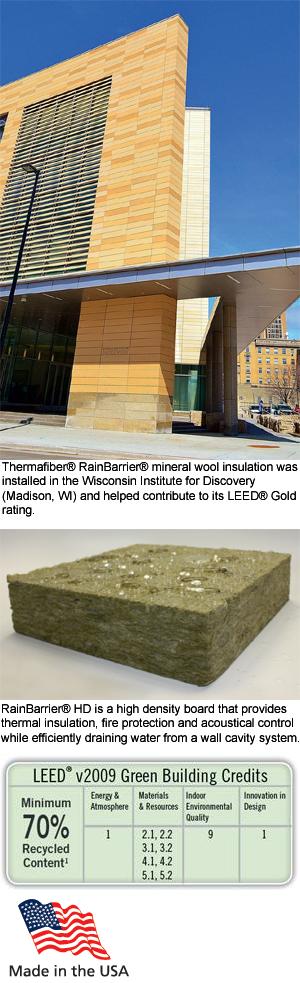

Thermafiber RainBarrier® HD is a high density board with a consistent 6.0 pcf density throughout the entire thickness of the product. The consistent density from top to bottom helps eliminate the need to orient the piece in a certain direction. Its natural, dark color provides camouflaging in open joint facades and helps eliminate the need for black facing. Thermafiber Inc. does not recommend applying a black facing in open joint applications because the manufacturers of the facing do not support their long term exposure. RainBarrier® HD continuous insulation products are designed for exceptional performance in rain screen and cavity wall construction applications. Mineral wool provides thermal insulation, fire protection and acoustical control while efficiently draining water from a cavity system. All RainBarrier® products are non-combustible and compatible with common wall ties and air barrier systems.

Product Options:

  • Recycled Content Options2:
    EPA Choice Fiber (US Government Buildings)........Minimum 75%
    Standard Fiber......................................................................70%
    2Recycled content options other than standard must be specified at time of order.

Installation:

Thermafiber recommends mechanical attachment of RainBarrier® insulation products.See Thermafiber’s RainBarrier® Installation Guide at www.thermafiber.com/rainbarrier


Standard Sizes:

Thickness*
Widths**
Lengths**
RainBarrier® HD
1”- 7”
16”, 24”, 36”
48”, 60”
*Thicknesses are available in ½” increments. **Custom sizes are available upon request.


Technical Data:

Tested to ASTM C 518
Tested to ASTM E 84 Unfaced
Product Designation
Actual Density
“k” @ 75° [24°C] BTU.in/hr.sq. ft. °F
“R” value per inch of thickness***
Flame Spread
Smoke Developed
RainBarrier® HD
6.0 pcf
0.24
4.2
0
0
***R = thickness divided by ‘k’


Acoustical Performance:

 NRC Data
Coefficients at Frequencies Per ASTM C 423
Thickness
125 Hz
250 Hz
500 Hz
1000 Hz
2000 Hz
4000 Hz
NRC
RainBarrier® HD
2"
0.36
0.79
1.15
1.04
1.01
1.04
1.00
4"
1.15
1.17
1.18
1.03
1.06
1.08
1.10
6"
1.18
1.01
1.11
1.03
1.06
1.10
1.05


Standards Compliance:

RainBarrier® HD meets the following:
ASTM C 665Non-corrosive
ASTM C 795Pass
ASTM C 612RainBarrier® HD Type IA, IB,II,III, IVA
ASTM E 136Rated Non-combustible per NFPA Standard 220
ASTM E 96Unfaced, 50 Perms as tested
ASTM E 84Flame Spread 0, Smoke Developed 0
CAN/ULC S 102Flame Spread 0, Smoke Developed 5
ASTM C 1104Absorbs 0.03% by volume
ASTM C 356Linear Shrinkage<2% 1200° F (650° C)
