Overview



Piping / Equipment: Low / Medium / High Temp. Board Insulation

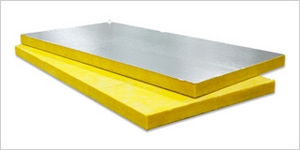

Low Temperature Board Insulation

Low Temperature Board is used for maximum operating temperatures up to 250 degrees F. Type 701 is a lightweight, unfaced, flexible insulation in batt form for use on vessels having irregular surfaces, where the compressive strength is not a performance criterion. Types 703 and 705 are board insulations usually impaled over welded pins on flat surfaces. They are cut in segments and banded in place on irregular surfaces. Unfaced boards are normally finished with reinforced insulating cement or weatherproof mastic.

Medium Temperature Board Insulation

Medium Temperature Board is used for temperatures from 250 degrees F to 650 degrees F. For temperatures over 400 degrees F (204 C), good insulation practice suggests double layer application, regardless of insulation type. These insulations may be installed in either single or multiple layers at all temperatures up to 1200 F (649 C).

High Temperature Board Insulation

High Temperature Board can be installed directly on heated flat and curved surfaces by attaching with welded pins or studs, finishing with sheet metal or metal mesh and insulating cement, then canvassed and painted. For temperatures over 650 degrees F (204 C), good insulation practice suggests double layer application, regardless of insulation type.


Piping / Equipment: Low / Medium / High Temp. Board Insulation

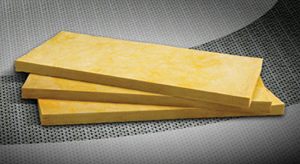

Fiberglas™ 700 Series Insulation

  • Saves energy and reduces heat transfer, lowering operating costs.
  • Available in five densities and various thicknesses.
  • Resists damage and maintains structural integrity and efficiency.
  • Efficiently reduces sound transmission.
  • Easy to handle, fabricate on the job site and install.

Fiberglas™ TIW-HP Types I and II Insulation

  • Excellent thermal performance contributes to lower fuel costs due to reduced heat loss.
  • Easy to handle and install.
  • Can be used in direct contact with steel, copper and aluminum without corrosive effects.


Piping / Equipment: Low / Medium / High Temp. Board Insulation

Fiberglas™ Insul-Quick® Insulation

  • Thermal efficiency helps conserve energy and lower costly heating loss.
  • Easy to handle and install.
  • Won't crumble or break during installation.
  • Resists tearing and pulling apart.
  • Boards in sizes to 4' by 8' help reduce the number of joints, speeding installation and eliminating potential sources of heat leakage.

Fiberglas™ SCR Insulation Board

  • Easy to handle and install, even when large size panels are used.
  • SCR Board is free of shot and lighter than mineral wools with comparable thermal performance.
  • Boards in sizes up to 4' x 8' help to reduce the number of joints, speeding installation and eliminating potential sources of heat leakage.
  • May be used on flat surfaces or easily shaped around curved surfaces.
  • Excellent thermal efficiency contributes to lower fuel costs due to reduced heat loss.
